PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1844 × 2215 × 1308 mm
Inner mattress fit dimensions	1524 x 2032 mm
Headboard thickness	152 mm
Floor to slat support height	356 mm
Under-bed clearance	0 mm
Wing panel projection from headboard face	120 mm
Side rail height above slat surface	300 mm
Contrast trim width on edges	20 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static total weight capacity	454 kg
Recommended mattress thickness	305 mm
Product net weight	69 kg
Slat static load rating per slat	25 kg
Upholstery abrasion resistance	30000 double rubs
Recommended maximum user weight per side	136 kg
Warranty period	365 days
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Woven velvet fabric, mustard olive finish
Headboard padding	38mm high-density polyurethane foam, 35kg/m³ density
Internal frame	Kiln-dried pine and 18mm plywood structural panels
Support slats	12mm thick poplar wood slats, spaced 70mm apart
Center support beam	40mm x 80mm solid wood beam with 3 support points
Edge contrast trim	Woven light neutral fabric whipstitch detail
Frame connectors	Zinc-plated steel hardware, M8 bolt size
Noise reduction padding	3mm EVA foam on all slat and frame contact points
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support	Wood slat platform system, no box spring required for proper support
Headboard function	Tufted padded wing panels provide back support for seated bed use
Mattress retention	Recessed side and end rails prevent mattress shifting during use
Assembly required	Knock-down assembly with included hardware, two-person installation
Cleaning requirement	Spot clean only with upholstery-safe cleaner to preserve velvet finish
Edge protection	Contrast whipstitch trim reinforces high-wear corner and edge seams
Under-bed design	Floor-flush base eliminates dust accumulation below the frame
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential primary bedroom	Fits standard queen mattress for main bedroom use in homes
Contemporary interior schemes	Warm velvet finish complements modern and eclectic decor styles
Guest bedroom installation	Low-profile design works for compact guest room spaces
Upholstered furniture collections	Pairs with fabric dressers and nightstands for coordinated bedroom sets
Low-clearance room design	Floor-skimming base suits rooms with minimal under-bed cleaning access

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 1021-1:2014	Upholstered furniture ignitability resistance to smouldering cigarette

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to internal frame
GB 18584-2001	Limit of formaldehyde emission for wooden furniture interior materials
GB/T 1952.2-2011	General technical requirements for upholstered furniture bedding

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal frame;
2. GB 18584-2001: Limit of formaldehyde emission for wooden furniture interior materials;
3. GB/T 1952.2-2011: General technical requirements for upholstered furniture bedding;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WB-PLT-Q-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WB-PLT-Q-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WB-PLT-Q-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

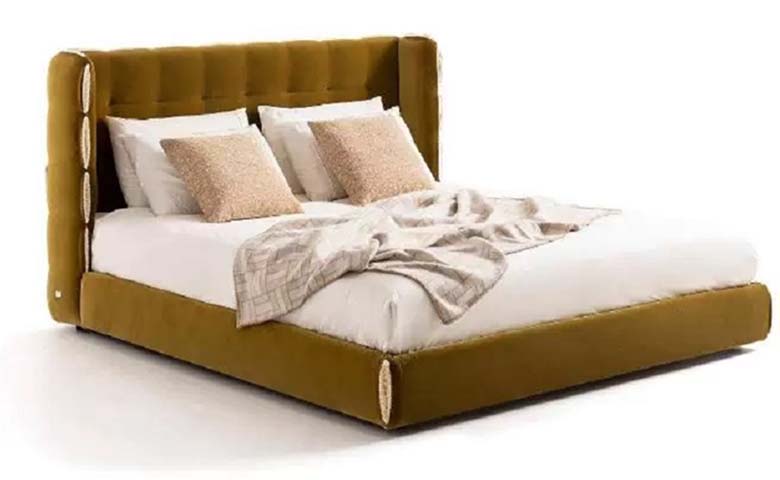

The Tufted Velvet Wingback Platform Bed with Contrast Edge Trim, model WB-PLT-Q-01, is an unbranded upholstered wingback platform bed built for cohesive, functional bedroom setups. Visually, the piece features a structured wingback headboard with grid-tufted detailing, finished in woven mustard olive velvet accented by 20mm light neutral woven fabric whipstitch trim along all exposed edges. Its floor-skimming, footboard-free base sits flush to the floor, with wing panels projecting 120mm from the headboard face to frame the sleep surface, creating a tailored, contemporary silhouette that balances soft texture with crisp, defined lines. Constructed for long-term residential use, the bed’s internal frame combines kiln-dried pine and 18mm plywood structural panels, secured with zinc-plated M8 steel hardware. The headboard is padded with 38mm high-density polyurethane foam rated at 35kg/m³ for consistent, supportive cushioning, while the platform support system uses poplar wood and bent plywood slats spaced for even weight distribution, supported by a central solid wood beam with three fixed support points. EVA foam padding at all slat and frame contact points minimizes operational noise, and the velvet upholstery is rated for 30000 double rubs to withstand regular contact. The 20mm contrast whipstitch trim adds dual purpose, reinforcing high-wear corner and edge seams to reduce fraying over time. Practically, the wood slat platform eliminates the need for a separate box spring, providing stable support for a standard queen mattress sized to fit the 1524 x 2032mm inner frame, with a recommended 305mm mattress thickness. Recessed side and end rails prevent mattress shifting during use, and the padded tufted wing panels offer comfortable back support for seated activities like reading in bed. The floor-flush base eliminates under-bed gaps to prevent dust accumulation, ideal for spaces where regular under-bed cleaning access is limited. Maintenance requires only spot cleaning with upholstery-safe products to preserve the velvet finish. The bed ships knock-down for two-person assembly, with all required hardware included and a typical assembly time of 40 minutes. This model suits residential primary bedrooms, compact guest rooms, and contemporary or eclectic interior schemes, pairing seamlessly with fabric dressers and nightstands for coordinated room sets. It supports a total static weight of 454kg, with a 136kg maximum recommended user weight per side. Procurement teams should note the product ships across multiple cartons per set, with a total packaged gross weight of 130kg and 365-day warranty coverage, and plan for appropriate two-person delivery and installation support.

Tufted Velvet Wingback Platform Bed with Contrast Edge Trim Specifications
