PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2100 × 2370 × 1370 mm
internal mattress fit area	1530 x 2030 mm
headboard height from floor	1370 mm
slat support surface height from floor	230 mm
footboard rail height from floor	300 mm
gold accent leg height	200 mm
under-bed clearance height	180 mm
headboard padding thickness	90 mm
side rail width	180 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

total static weight capacity	454 kg
net product weight	59 kg
slat static load per unit	50 kg
recommended mattress thickness	305 mm
under-bed storage clearance load	45 kg
upholstery abrasion resistance	25000 double rubs
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

outer upholstery	Camel-tone PU faux leather with smooth matte finish
headboard padding	35 kg/m³ high-resilience polyurethane foam
internal frame core	Kiln-dried hardwood + 18mm CARB P2 grade plywood
support slats	12mm thick poplar wooden slats with pre-drilled mounting holes
support legs	1.5mm thick gold-toned iron with cross-shaped accent detail
center support beam	40x20mm rectangular steel support bar with 3 additional center legs
charging port housing	Matte black ABS plastic panel embedded in left headboard
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

integrated charging station	2 USB-A ports (5V/2.1A) + 2 AC outlets (120V/12A) embedded in left headboard
slat support system	13 evenly spaced poplar slats with 75mm gap, center steel beam reinforcement
box spring compatibility	Platform design supports mattress directly, no box spring required
under-bed access	180mm floor clearance supports robotic vacuum cleaning and low-profile storage
backrest support	Vertical channel segmented padding provides lumbar and upper back support for upright sitting
KD assembly structure	Knock-down assembly with included hex key and hardware, no special tools required
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

residential master bedroom	Suitable as primary sleeping surface for 2 adults in modern light luxury interiors
apartment guest bedroom	Low-profile design suits smaller bedroom spaces without overwhelming room layout
hotel boutique guest room	Premium upholstered finish matches upscale boutique hotel furnishing standards
paired with matching nightstand	Coordinated design works with 2-drawer camel-toned nightstands for matching set configuration
tech-friendly use case	Integrated charging ports support bedside device charging without extra power outlets

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725-2012	Applicable to domestic beds strength, durability and safety test requirements
EN 1021-1:2014	Applicable to upholstered furniture ignitability resistance for cigarette source
EN 13986:2004	Applicable to wood-based panels used in construction and furniture structural use

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable to wooden furniture general technical requirements for frame and slat components
GB 18584-2001	Applicable to indoor decoration material limit of harmful substances for wood panels
GB 20400-2006	Applicable to leather and faux leather upholstery harmful substance limits

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable to wooden furniture general technical requirements for frame and slat components;
2. GB 18584-2001: Applicable to indoor decoration material limit of harmful substances for wood panels;
3. GB 20400-2006: Applicable to leather and faux leather upholstery harmful substance limits;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-CAM-GLD-USB-Q

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-CAM-GLD-USB-Q

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-CAM-GLD-USB-QOpen Export Tool

Quick Actions

Post an RFQ

Product Description

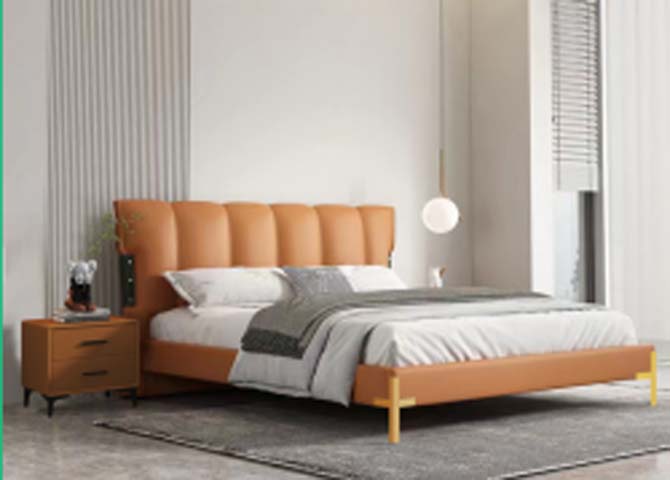

The Camel Vertical Channel Tufted Upholstered Platform Bed with Gold Accent Legs delivers a refined modern light luxury aesthetic anchored by clean, structured lines. Its tall headboard features tailored vertical channel tufting that creates subtle visual texture, finished in smooth matte camel-tone PU faux leather that pairs with slender gold-toned iron legs fitted with cross-shaped accent details for a polished, elevated silhouette. The low-profile footboard maintains an open, unobtrusive visual weight, balanced by the tall padded headboard that acts as a deliberate focal point in bedroom layouts. Its construction prioritizes long-term durability and everyday comfort, starting with a core frame built from kiln-dried hardwood and CARB P2 grade plywood, reinforced by a rectangular steel center support beam paired with additional center legs. The headboard is padded with high-resilience polyurethane foam for a plush, supportive feel, with thick padding that holds its shape over time. The support system uses evenly spaced poplar wooden slats with pre-drilled mounting holes, eliminating the need for a separate box spring by supporting mattresses directly. Legs are formed from thick gold-toned iron, and an embedded matte black ABS panel on the left headboard houses the integrated power station without disrupting the upholstered finish. Practical function is woven into its design: the integrated charging station includes two USB-A ports and two AC outlets to power bedside devices without requiring extra accessible wall outlets. The segmented vertical channel padding on the headboard delivers targeted lumbar and upper back support for upright sitting, such as reading or working from bed. The under-bed clearance accommodates robotic vacuum cleaning and low-profile storage, with rated weight capacity for stored items. All required hardware and a hex key are included for knock-down assembly, with no specialty tools needed for setup. This bed frame fits seamlessly in residential master bedrooms as a primary sleeping surface for two adults in light luxury-styled interiors, works well in smaller apartment guest bedrooms thanks to its proportionate low-profile design, and meets the finish standards for upscale boutique hotel guest rooms. It can be paired with matching camel-toned 2-drawer nightstands for a coordinated furnishing set. When planning procurement, note that orders ship across multiple cartons, with a standard assembly time per unit, and plan for the specified total static weight capacity and recommended mattress thickness to ensure appropriate fit and long-term use. The PU upholstery holds up to regular residential and light commercial use with robust abrasion resistance, making it suitable for consistent daily occupancy.

Camel Vertical Channel Tufted Upholstered Platform Bed with Gold Accent Legs Specifications
