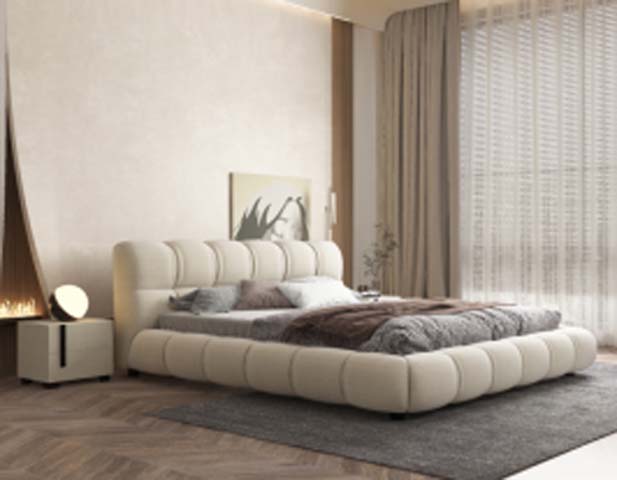

Product supplierBeige Channel-Tufted Low-Profile Upholstered Platform Bed, Beige matte velvet/chenille blend fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1930 × 2160 × 1220 mm | |
|---|---|---|
| Headboard height from floor | 1220 mm | |
| Mattress support platform height | 305 mm | |
| Side rail height above floor | 305 mm | |
| Internal mattress fit dimensions | 1800 x 2000 mm | |
| Padded channel segment width (headboard/rails) | 220 mm | |
| Rounded corner radius on frame edges | 80 mm | |
| Under-bed ground clearance | 20 mm | |
| Headboard thickness | 180 mm | |
| Side rail thickness | 160 mm | |
| Footboard height from floor | 305 mm | |
| Recommended mattress thickness | 380 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static weight capacity | 363 kg | |
|---|---|---|
| Recommended user weight per sleeping position | 150 kg | |
| Slat support spacing | 70 mm | |
| Slat count for king size | 14 slats | |
| Center support leg count | 5 legs | |
| Upholstery fabric abrasion resistance | 50000 double rubs | |
| High-resilience foam density for padding | 45D | |
| Foam padding thickness on upholstered surfaces | 60 mm | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery fabric | Beige matte velvet/chenille blend fabric | |
|---|---|---|
| Cushion fill material | High-resilience polyurethane foam | |
| Internal load-bearing frame | Kiln-dried solid pine + E0-grade engineered plywood | |
| Slat support system | Laminated birch wood slats with steel cross beams | |
| Support feet | Black reinforced plastic hidden low feet | |
| Fastener hardware | Zinc-plated steel bolts and barrel nuts | |
| Edge stitching | High-tensile polyester thread with 8 stitches per inch | |
| Underside dust cover | Black non-woven polypropylene fabric | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Support system operation | Wooden slat platform supports mattress directly without box spring | |
|---|---|---|
| Assembly configuration | Knock-down flat-pack assembly with included hex key and hardware | |
| Edge impact protection | Fully rounded padded edges on all frame components prevent bruising from contact | |
| Mattress retention | Integrated 20mm tall mattress lip on inner rail prevents sliding | |
| Floor protection | Non-marking plastic feet prevent scuffing on hard wood or tile flooring | |
| Compatibility feature | Universal frame design fits standard king/queen size mattresses without modification | |
| Noise dampening | Foam padding between slats and frame eliminates squeaking during movement | |
| Installation requirement | Headboard mounts flush against standard residential walls without additional brackets | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Residential master bedrooms | |
|---|---|---|
| Target user group | Adult homeowners seeking soft, impact-safe bedroom furniture | |
| Recommended matching furniture | Low-profile cream nightstands and upholstered bedroom benches | |
| Flooring compatibility | Hardwood, laminate, tile or low-pile carpeted floors | |
| Style suitability | Cream-style, modern minimalist, and wabi-sabi interior designs | |
| Recommended placement | Positioned flush against a flat bedroom wall as the primary sleeping surface | |
| Mattress pairing recommendation | 350 mm thick memory foam or hybrid spring mattresses |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1725:1998 | Domestic furniture – Beds and mattresses – Safety requirements and test methods | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignitability resistance for smouldering cigarette source |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural frame durability | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits | |
| GB/T 35607-2017 | Green product evaluation for furniture, applicable to low-VOC material requirements |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural frame durability; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits; 3. GB/T 35607-2017: Green product evaluation for furniture, applicable to low-VOC material requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
