PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2090 × 2370 × 1320 mm
Sleeping surface height	356 mm
Headboard panel thickness	83 mm
Footboard height	457 mm
Footboard thickness	83 mm
Side rail height above floor	381 mm
Under-bed clearance	250 mm
Recommended mattress thickness	356 mm
Wood slat width	70 mm
Wood slat thickness	25 mm
Slat spacing	76 mm
Center support beam count	3
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	500 kg
Product net weight	70 kg
Recommended user count	2
Upholstery abrasion resistance	30000 cycles
Foam density (padding)	35 kg/m³
Foam rebound rate	60%
Seam stitch pitch	8 stitches per inch
Base warranty period	1 year
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard outer cover	Light grey smooth matte faux leather/polyester upholstery
Headboard padding	High-resilience polyurethane foam
Contrast trim	Dark grey/black PVC/PU binding
Inner frame structure	Kiln-dried solid pine and plywood
Side rail support	Powder-coated steel rectangular tube
Support slats	Solid birch wood slats
Center support legs	Powder-coated steel adjustable legs
Connection hardware	Zinc-plated steel bolts and barrel nuts
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Slat support system	Wood slat platform with center supports eliminates need for separate box spring
Noise-reduction slat attachment	EVA foam pads between slats and metal rails minimize squeaking during movement
Knock-down assembly	Frame disassembles into flat-packed panels for transport, all hardware included
Upholstered edge protection	Padded headboard and footboard prevent impact injury in bedroom spaces
Low-profile floor alignment	Upholstered frame base sits close to floor, hides under-bed storage area from view
Stain-resistant surface finish	Smooth faux leather/polyester upholstery allows spot cleaning with mild detergent
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton dimensions	2100 x 900 x 220 mm
Total shipping gross weight	80 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary bedroom placement	King size bed for main residential master bedrooms, positioned against wall with flanking nightstands
Modern luxury bedroom design	Light grey upholstery with dark trim fits contemporary, glam and modern classic interior schemes
Residential adult use	Designed for everyday long-term sleeping use in private home settings, not commercial high-traffic use
Low-profile aesthetic preference	Suitable for rooms where a streamlined, floor-aligned bed silhouette is desired instead of high poster or storage bed styles
No-box-spring configuration	Ideal for users who prefer a modern all-in-one bed frame without separate foundation purchases

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods, applicable to structural safety verification
EN 1022:2005	Domestic furniture - Seating - Determination of stability, applicable to bed frame anti-tip safety checks

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood frame structural strength and dimensional tolerance checks
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable to formaldehyde emission testing for wood panels and adhesives
GB/T 16799-2008	Specification for polyurethane synthetic leather, applicable if PU upholstery is used for cover material

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood frame structural strength and dimensional tolerance checks;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission testing for wood panels and adhesives;
3. GB/T 16799-2008: Specification for polyurethane synthetic leather, applicable if PU upholstery is used for cover material;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-KG-SCL-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-KG-SCL-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-KG-SCL-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

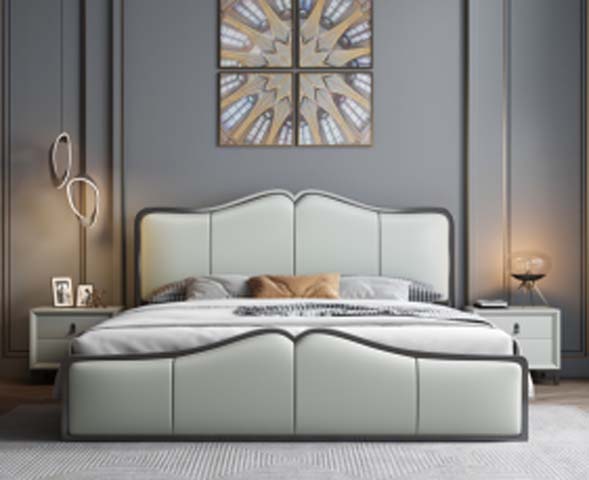

This Light Grey Upholstered Scalloped Platform Bed with Dark Contrast Trim (model UPB-KG-SCL-001, unbranded) features a streamlined low-profile silhouette defined by its signature scalloped headboard and footboard, accented with crisp dark grey or black binding that creates sharp visual contrast against the smooth matte light grey outer upholstery. The frame sits close to the floor, presenting a clean, unbroken line that hides under-bed space from direct view, and is sized to serve as a king-size focal point when positioned against a wall flanked by matching nightstands. Its visual language aligns seamlessly with contemporary, glam, and modern classic interior design schemes, offering a refined, uncluttered aesthetic suited to spaces where tall poster beds or bulky storage bed profiles feel out of place. Constructed for long-term residential use, the bed’s inner structure combines kiln-dried solid pine and plywood framing, reinforced with powder-coated steel rectangular tube side rails and adjustable powder-coated steel center support legs. The support base uses solid birch wood slats secured with EVA foam pads between slats and metal rails to minimize operational squeaking, with zinc-plated steel bolts and barrel nuts for sturdy connections. All padded surfaces are wrapped in smooth faux leather or polyester upholstery over high-resilience polyurethane foam, with tightly stitched seams and stain-resistant finishes that support simple spot cleaning with mild detergent. The 356mm sleeping surface pairs with 250mm of under-bed clearance, and the slat system removes the need for a separate box spring, while padded upholstered edges reduce the risk of impact injury during daily use. The bed supports a total static weight capacity of 500kg for two users, with abrasion-resistant upholstery rated for 30,000 cycles and high-resilience foam delivering consistent, supportive cushioning. Delivered as a knock-down flat-packed kit with all required hardware included, the bed is designed for straightforward at-home assembly, with main joints rated to support five controlled assembly cycles. It is engineered exclusively for long-term everyday adult use in private residential master bedrooms, and is not intended for high-traffic commercial settings. Procurement teams and residential buyers should note the product ships in multiple cartons, plan for appropriate delivery handling to accommodate the packaged weight and dimensions, and select a mattress matching the 356mm recommended thickness to maintain the intended low-profile look and proper support alignment. Buyers should also account for the listed assembly time when scheduling installation to ensure smooth setup.

Light Grey Upholstered Scalloped Platform Bed with Dark Contrast Trim Specifications
