PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2266 × 2337 × 871 mm
mattress recess inner width	1981 mm
mattress recess inner length	2083 mm
perimeter side rail width	280 mm
extended L-headboard side return length	2266 mm
overall frame height from floor	381 mm
underbed clearance	30 mm
mattress compatible thickness	406 mm
upholstery panel thickness	80 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

total static weight capacity	449 kg
net product weight	66 kg
slat support count	13
center support leg count	8
sleeping surface occupancy	2 adults
slat spacing	76 mm
fabric abrasion resistance	30000 double rubs
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

outer upholstery fabric	Linen-look 100% polyester woven fabric, 340gsm
upholstery padding	25mm thick high-resilience polyurethane foam over polyester batting
internal frame	18mm thick CARB P2 grade MDF and plywood structural panels
slat support system	12mm thick laminated birch wood slats mounted on steel cross rails
support feet	20mm diameter black powder-coated steel hidden glide feet
grid tufting construction	Stitched square grid quilt with concealed tack fasteners
joint hardware	Zinc-plated steel bolt and barrel nut connectors with lock washers
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

mattress support	Recessed slat platform eliminates need for separate box spring
L-shaped headboard function	Continuous padded wraparound panel acts as headboard and side backrest
assembly requirement	Knock-down flat-pack assembly with included hex key and hardware
mattress retention	Raised 80mm perimeter rails prevent mattress sliding off platform
floor protection	Hidden plastic glide feet prevent scuffing on hard flooring surfaces
noise reduction	Padded joint strips between frame components eliminate metal-on-metal rattle
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

primary use space	Residential master bedrooms, modern minimalist and contemporary interiors
target user	Adult sleepers preferring soft upholstered edges without tall headboard obstruction
recommended bedding configuration	Pair with 400 mm thick memory foam or hybrid king size mattress
placement recommendation	Position against corner walls to highlight L-shaped wraparound headboard design
complementary furniture	Match with low-profile upholstered bedroom benches and minimal floating nightstands

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture – Beds and mattresses – Safety requirements and test methods
EN 1021-1:2014	Upholstered furniture ignitability resistance to smouldering cigarette

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame construction
GB 18584-2001	Limit of harmful substances in wood furniture for indoor decoration materials
GB/T 19822-2011	Test method for furniture surface coating wear resistance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame construction;
2. GB 18584-2001: Limit of harmful substances in wood furniture for indoor decoration materials;
3. GB/T 19822-2011: Test method for furniture surface coating wear resistance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-K-LH-GQ-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-K-LH-GQ-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-K-LH-GQ-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

This light grey grid-quilted upholstered king platform bed features a distinct L-shaped extended headboard that creates a continuous wraparound padded profile, aligned with minimalist and modern low-profile design principles. The grid-quilted upholstery uses stitched square patterns secured with concealed tack fasteners for a clean, tailored visual appearance across all padded surfaces. The frame’s overall form sits low to the floor, with a subtle raised perimeter rail that defines the sleeping area while maintaining a streamlined silhouette. Positioning the bed against a corner wall best highlights the L-shaped headboard’s wraparound layout, which extends fully along one adjacent side of the mattress platform. Crafted with a padded internal frame constructed from CARB P2 grade MDF and plywood structural panels, the bed is wrapped in a 100% polyester linen-look woven outer fabric that delivers durable performance for regular residential use. Under the upholstery, 25mm high-resilience polyurethane foam layered over polyester batting provides soft, cushioned edges. The support system uses laminated birch wood slats mounted on steel cross rails, reinforced by central support legs, with zinc-plated steel bolt and barrel nut connectors fitted with lock washers for stable joinery. Hidden black powder-coated steel glide feet support the frame, with padded joint strips integrated between components to prevent unwanted noise during use. The recessed slat platform removes the requirement for a separate box spring, while raised perimeter rails hold the mattress securely in place to prevent sliding. The extended L-shaped headboard doubles as both a primary headboard and a side backrest, creating a soft, padded boundary for the sleeping area. The glide feet also protect hard flooring surfaces from scuffs and surface damage. The bed supports a maximum static weight capacity suitable for two adult sleepers, and accommodates king size mattresses of up to the listed compatible thickness. This bed is designed for residential master bedrooms, particularly spaces styled with modern minimalist or contemporary interiors. It is ideal for adult sleepers who prefer soft upholstered edges without the visual obstruction of a tall, oversize headboard. For a coordinated aesthetic, pair the frame with low-profile upholstered bedroom benches and minimal floating nightstands, alongside a recommended memory foam or hybrid king mattress. When procuring this model, note that it is delivered as a knock-down flat-pack set across multiple cartons, with all required hardware and a hex key included for assembly, which may be completed by two people in the referenced assembly time. The product is unbranded, so buyers should confirm they receive all slats, support legs, and connector hardware before beginning assembly, and account for the total packaged weight and volume when arranging delivery and placement. Allow adequate clear floor space to accommodate the full extended length of the L-shaped headboard when planning room layout.

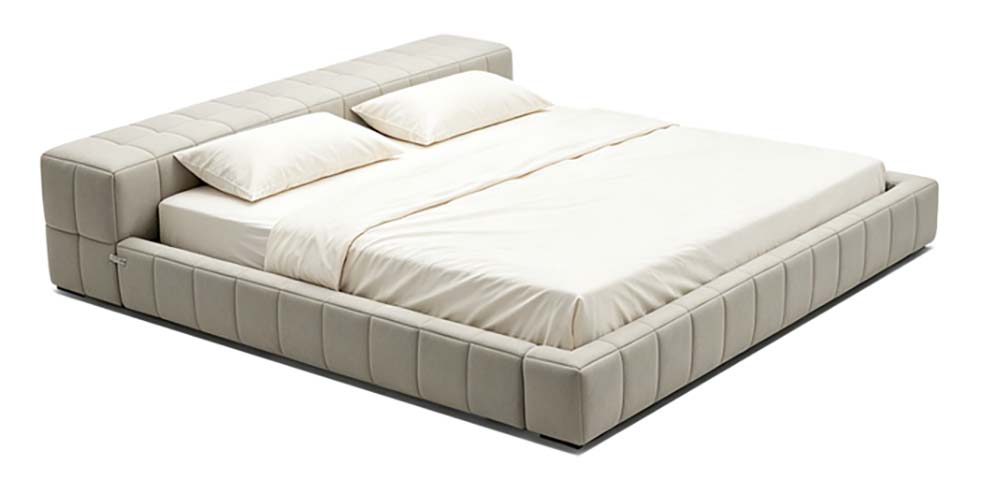

Light Grey Grid-Quilted Upholstered King Platform Bed with L-Shaped Extended Headboard Specifications
