PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1626 × 2184 × 1207 mm
Headboard height from floor	1207 mm
Under-bed clearance	203 mm
Recommended mattress thickness	381 mm
Mattress resting surface width (Queen)	1524 mm
Mattress resting surface length (Queen)	2032 mm
Headboard panel padding thickness	76 mm
Side rail height from slat surface	305 mm
Support leg height	152 mm
Slat thickness	25 mm
Slat spacing	76 mm
Center support beam count	1
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	454 kg
Net product weight	57 kg
Slat count (Queen)	14
Recommended user count	2 adults
Noise rating during use	<30 dB
Upholstery abrasion resistance	30000 Martindale cycles
Leg floor load distribution	114 kg per leg
Warranty period	1 year
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer headboard/bed rail upholstery	Warm orange performance fabric, stain-resistant treatment
Central headboard panel upholstery	Off-white stitched performance fabric, grid seam detailing
Headboard padding	High-density polyurethane foam, 40 kg/m³ density
Support slats	Solid birch wood, sanded smooth finish
Internal frame core	MDF and mixed hardwood reinforced frame
Support legs	Matte black powder-coated carbon steel, anti-slip EVA foot pads
Center support beam	Powder-coated rectangular steel tube
Hardware fasteners	Zinc-plated steel bolts and barrel nuts
Seam stitching	High-strength polyester thread, 8 stitches per inch
Under-bed dust cover	Black non-woven fabric, stapled to frame underside
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support system	Wood slat platform, no box spring required
Center support structure	Single steel beam with auxiliary center legs
Noise reduction feature	Velcro slat fasteners and EVA anti-squeak pads
Floor protection feature	Anti-slip rubber foot pads on all legs
Headboard back support	Angled padded wingback design for seated reading support
Assembly design	Knock-down flat pack, all hardware included in headboard compartment
Compatible base type	Compatible with adjustable bed bases when slats are removed
Fabric maintenance	Stain-resistant wipe-clean upholstery surface
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential master bedroom	Suitable for 3.6m x 4.2m or larger bedrooms as primary sleeping furniture
Modern contemporary interiors	Matches light luxury, minimalist and modern decor styles with two-tone finish
Pairing with matching nightstands	Designed to coordinate with two-tone 2-drawer upholstered nightstands for cohesive set
Seated bedtime use	Angled padded headboard supports upright reading or screen use before sleep
Low-profile aesthetic preference	Low frame height suits modern bedroom designs that avoid bulky furniture profiles
No foundation installation	Ideal for spaces where adding a box spring would exceed desired bed height

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Applicable standard for domestic beds safety requirements and test methods
EN 1022:2018	Applicable standard for furniture seating stability applicable to headboard seated use

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable standard for wooden furniture general technical requirements for internal frame
GB 18584-2001	Applicable standard for indoor furniture formaldehyde emission limit for wood components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable standard for wooden furniture general technical requirements for internal frame;
2. GB 18584-2001: Applicable standard for indoor furniture formaldehyde emission limit for wood components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-TT-OR-WHT-Q01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-TT-OR-WHT-Q01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-TT-OR-WHT-Q01Open Export Tool

Quick Actions

Post an RFQ

Product Description

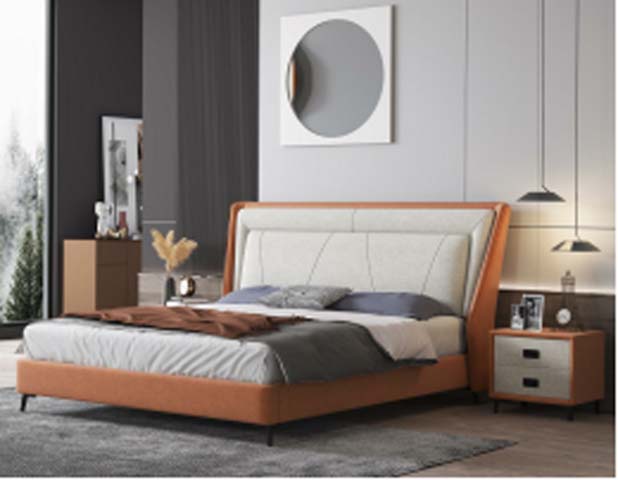

The Two-Tone Wingback Upholstered Platform Bed (model UPB-TT-OR-WHT-Q01, unbranded) delivers a modern light luxury aesthetic through its intentional two-tone visual design. Its tall wingback headboard reaches 1207 mm from the floor, with outer sections upholstered in warm orange stain-resistant performance fabric, and a central off-white panel accented by precise grid seam stitching. The low-profile platform structure sits 203 mm above the floor, creating a streamlined silhouette that avoids bulky visual weight in residential spaces. Built for long-term residential use, the bed combines a reinforced MDF and mixed hardwood internal core with 14 smooth sanded solid birch slats, a rectangular powder-coated steel center support beam, and matte black powder-coated carbon steel legs fitted with anti-slip EVA foot pads. The headboard is padded with 76 mm thick high-density polyurethane foam, and all upholstery is rated for 30000 Martindale abrasion cycles, stitched with high-strength polyester thread set to 8 stitches per inch. Zinc-plated steel bolts and barrel nuts secure all structural connections, and Velcro slat fasteners paired with anti-squeak pads minimize operational noise during use. Functional design elements eliminate the need for a separate box spring, supporting mattresses directly on the slat platform. The system holds a total static weight capacity of 454 kg, with floor load distributed evenly at 114 kg per leg, accommodating 2 adult users for regular sleep. The angled padded wingback provides ergonomic back support for seated reading or pre-sleep screen use, and the frame is compatible with adjustable bed bases when slats are removed. The bed arrives as a knock-down flat pack with all hardware stored in the headboard compartment, requiring 40 minutes of assembly time per set. This queen-size model fits bedrooms measuring 3.6m x 4.2m or larger, complementing minimalist, modern, and light luxury interior schemes, and is designed to coordinate with matching two-tone 2-drawer upholstered nightstands for a cohesive room layout. Procurement teams should note the unit ships across 2 cartons per set, with a total packaged gross weight of 130 kg and 0.9 m³ packaging volume. A 1-year warranty is included, and the 381 mm recommended mattress thickness ensures proper alignment with the headboard design for ideal visual and functional fit.
