PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1900 × 2280 × 1200 mm
Compatible mattress size	1800 x 2000 mm
Mattress support surface height	450 mm
Support leg height	100 mm
Headboard thickness	180 mm
Side rail height	320 mm
Underbed clearance height	200 mm
Single headboard cushion width	900 mm
Side rail thickness	60 mm
Footboard height	320 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	363 kg
Slat static point load capacity	50 kg
Net product weight	60 kg
Recommended maximum user weight per side	150 kg
Fabric abrasion resistance	30000 cycles
Noise dampening performance	25 dB
Warranty period	3 years
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard outer upholstery	Light gray stain-resistant tech fabric
Removable headboard cushions	Plaid woven polyester fabric, 25mm high-density foam fill
Side/foot rail upholstery	Matching light gray tech fabric over 20mm foam padding
Internal bed frame	18mm thick E0 grade engineered wood
Support slats	12mm thick solid birch wood, 70mm slat spacing
Support legs	20mm diameter matte black powder-coated steel
Center support beam	30mm thick engineered wood with 3 auxiliary metal legs
Hardware connectors	Zinc-plated steel bolts and barrel nuts
Foot pads	Non-slip 5mm thick rubber pads
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mattress support	Wooden slat platform eliminates need for box spring
Headboard cushions	Removable plaid cushions allow spot cleaning and style adjustment
Assembly design	Knock-down flat pack assembly with cam lock and bolt connections
Underbed access	200mm open clearance allows robotic vacuum cleaning access
Floor protection	Rubber foot pads prevent scuffing on hard flooring and carpet
Compatible bedding	Fits standard king size sheets, duvets and mattress protectors
Style adjustability	Removable cushions support interchangeable cushion customization
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Master bedroom placement	Designed for residential master bedrooms against a feature wall
Modern minimalist interiors	Matches light neutral color palettes and contemporary decor styles
Matching set configuration	Pairs with matching two-drawer nightstands sold separately
Hard flooring and carpet use	Suitable for wood, tile and carpeted bedroom floors
Residential and hospitality use	Appropriate for apartments, boutique hotel guest rooms and rental properties
Robot vacuum compatible homes	200mm underbed clearance works with most robotic vacuum cleaners

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture beds safety and strength requirements reference
EN 1021-1:2014	Upholstered furniture ignitability resistance for cigarette sources reference

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame structure inspection
GB 18584-2001	Formaldehyde emission limit for wooden furniture, mandatory for engineered wood components
GB/T 1952.2-2011	Spring soft mattress support surface durability testing reference

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame structure inspection;
2. GB 18584-2001: Formaldehyde emission limit for wooden furniture, mandatory for engineered wood components;
3. GB/T 1952.2-2011: Spring soft mattress support surface durability testing reference;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-K1820-PLAID-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-K1820-PLAID-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-K1820-PLAID-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

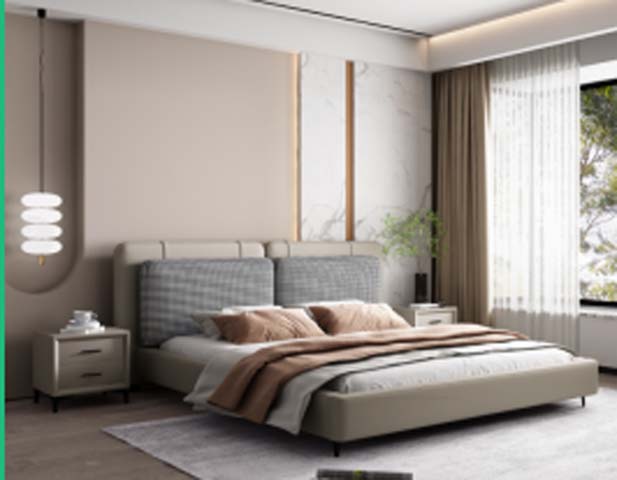

The Light Gray Upholstered Low-Profile Platform Bed with Split Plaid Removable Headboard Cushions, model UPB-K1820-PLAID-01, delivers a streamlined modern minimalist aesthetic anchored by clean, low-slung lines. Its light gray, stain-resistant tech fabric upholstery wraps the side rails, foot rail, and fixed headboard base, paired with two split plaid woven polyester cushions on the headboard that add subtle textural contrast. The matte black metal support legs offer a quiet visual counterpoint to the soft neutral upholstery, balancing softness and structural definition for a cohesive, understated look. Built for long-term residential and light commercial use, the bed features an 18mm thick E0 grade engineered wood internal frame, reinforced by a 30mm thick engineered wood center support beam with three auxiliary metal legs. The mattress support system uses 12mm thick solid birch slats spaced to eliminate the need for a box spring, held in place by zinc-plated steel bolts and barrel nuts. 20mm diameter matte black powder-coated steel legs fitted with 5mm thick non-slip rubber foot pads lift the frame, while all upholstered surfaces are padded with high-density foam: 25mm in the removable headboard cushions, and 20mm along the side and foot rails. The tech fabric upholstery resists staining and withstands 30000 abrasion cycles, with structural performance supporting 363 kg total static weight, 50 kg slat point load, and 150 kg maximum recommended user weight per side, paired with 25 dB noise dampening for undisturbed rest. Functional design details support daily convenience: the split plaid headboard cushions are fully removable for spot cleaning and style customization, allowing users to swap in alternate cushions to match evolving decor preferences. The 200mm underbed clearance accommodates most robotic vacuum cleaners for unobstructed floor maintenance, while the rubber foot pads prevent scuffing on wood, tile, and carpeted surfaces. The bed fits standard king size mattresses and corresponding king size bedding, and arrives as a knock-down flat pack with a 40-minute assembly time per set. This platform bed is designed for placement against a feature wall in residential master bedrooms, and aligns seamlessly with light neutral contemporary decor palettes. It is suitable for private apartments, boutique hotel guest rooms, and long-term rental properties, and pairs with coordinating two-drawer nightstands sold separately. Procurement teams should note the product ships across two cartons with a total packaged gross weight of 130 kg, no underbed storage is integrated into the frame, and the unit carries a 3-year warranty for covered defects.

Light Gray Upholstered Low-Profile Platform Bed with Split Plaid Removable Headboard Cushions Specifications
