PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1930 × 2210 × 1400 mm
Compatible mattress size	1830 x 2030 mm
Platform sleeping surface height	400 mm
Headboard panel thickness	80 mm
Side rail height above floor	350 mm
Under-bed floor clearance	20 mm
Center support beam count	2
Slat count	14
Slat thickness	25 mm
Slat spacing	70 mm
Gold metal trim width on headboard	20 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	454 kg
Product net weight	90 kg
Compatible mattress thickness	350 mm
Recommended user weight per side	150 kg
Upholstery abrasion resistance	30000 double rubs
Slat system static load rating	400 kg
Frame joint cycle durability	10000 cycles
Warranty period	3 years
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	Light beige polyester velvet fabric
Upholstery fill	35kg/m³ high-density polyurethane foam
Internal frame	E1-grade plywood + solid hardwood mix
Headboard metal accents	Gold-toned polished stainless steel trim + dark metal cross inlay
Support slats	Solid birch wood slats
Side rail upholstery base	Engineered wood panel wrapped in matching beige fabric
Hardware connectors	Zinc-plated steel bolts and barrel nuts
Anti-slip pads	EVA foam pads between slats and rails
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Support system	Wood slat platform, no box spring required
Assembly method	Knock-down assembly with included hex key and hardware
Under-bed access	Minimal 20mm clearance, no lift-up storage or drawers
Headboard function	Padded wall-aligned panel with fixed geometric metal accent
Mattress retention	Raised side rail lip prevents mattress sliding
Anti-squeak design	EVA gaskets at all wood-metal and wood-wood joints
Installation position	Floor-placed legless platform, requires level floor surface
Color availability	5 standard color options including beige, gray, white, black, pink
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application space	Master bedrooms in modern luxury and glam style residences
Recommended user group	Adult users seeking low-profile, decorative upholstered bed frames
Matching furniture recommendation	Pair with matching light beige 2-drawer nightstands and dressers
Suitable mattress type	Memory foam, latex, or hybrid mattresses 350 mm thick
Interior style compatibility	Modern light luxury, contemporary glam, and Art Deco inspired interiors
Recommended room size	Bedrooms with minimum 3600mm x 4000mm floor area

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Furniture - Beds and mattresses - Safety requirements and test methods
EN 1022:2005	Furniture - Seating - Determination of stability, applicable for seated use against headboard
EN 13759:2003	Furniture - Test methods for the strength and durability of bed bases

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame structural testing
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture
GB/T 1952.2-2011	Spring soft mattresses, reference for compatibility with platform support system

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame structural testing;
2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture;
3. GB/T 1952.2-2011: Spring soft mattresses, reference for compatibility with platform support system;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-KG-GEO-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-KG-GEO-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-KG-GEO-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

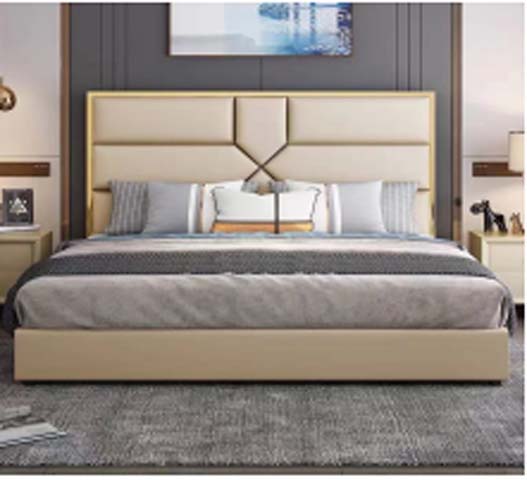

The unbranded Light Beige Upholstered Low-Profile Platform Bed with Gold Geometric Cross Headboard, model UPB-KG-GEO-001, delivers a refined statement piece for elevated residential sleeping spaces. Its visual design balances soft texture and bold metallic detail: a fully upholstered light beige polyester velvet frame wraps the low-profile structure, anchored by a headboard framed in polished gold-toned stainless steel trim with a dark metal geometric cross inlay at its center. The legless, floor-placed form sits flush against aligned walls, with a smooth continuous upholstered finish across side rails and headboard for a streamlined, uncluttered silhouette. It is constructed with a mixed internal frame of E1-grade plywood and solid hardwood, wrapped in 35kg/m³ high-density polyurethane foam padding under the velvet upholstery. Fourteen solid birch wood slats, reinforced by two center support beams, form the sleep platform, connected with zinc-plated steel bolts and barrel nuts. EVA foam gaskets sit at all wood-wood and wood-metal joints, while matching EVA pads between slats and rails reduce movement and noise, with side rails built with a raised lip to hold mattresses securely. The slat support system eliminates the need for a separate box spring, and the frame holds a total static load of 454 kg, with upholstery rated for 30000 double rubs to withstand regular long-term use. Its knock-down assembly uses included hardware and a hex key, with an 40 minute assembly time for a single unit; no lift-up storage or drawers are integrated, and the narrow 20 mm under-bed clearance limits access for cleaning or stored items. The king size unit fits a 1830 x 2030 mm mattress up to 350 mm thick, including memory foam, latex, and hybrid styles, and is designed for placement on fully level floor surfaces. It is ideally suited for master bedrooms in modern light luxury, contemporary glam, and Art Deco inspired homes, serving adult users seeking a decorative, low-slung bed frame; it pairs seamlessly with matching light beige 2-drawer nightstands and dressers, and requires a bedroom with a minimum 3600 mm x 4000 mm floor area to accommodate its footprint. Procurement teams should note the unit ships across multiple cartons, with a total packaged gross weight of 130 kg per set and total packaging volume of 0.9 cubic meters per unit, to plan delivery and staging logistics appropriately. No add-on storage accessories are offered as part of the base product, and orders will not include third-party branded packaging.

Light Beige Upholstered Low-Profile Platform Bed with Gold Geometric Cross Headboard Specifications
