Name: Light Blue Grid-Padded Upholstered King Platform Storage Bed
Brand: Youwei
SKU: VWAGMM

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2030 × 2180 × 1250 mm
Sleep surface height	510 mm
Headboard thickness	180 mm
Footboard rail height	350 mm
Support leg height	150 mm
Underbed storage depth	300 mm
Slat width	70 mm
Slat spacing	75 mm
Headboard panel grid	2 rows x 4 panels
Recommended mattress thickness	406 mm
Under-frame floor clearance	20 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	454 kg
Net product weight	78 kg
Storage compartment load capacity	100 kg
Slat static load rating	150 kg per slat
Gas lift mechanism cycle rating	10000 cycles
Upholstery abrasion resistance	50000 double rubs
Recommended user count	2 adults
Warranty period	1 year
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	Light blue woven performance fabric
Headboard padding	35mm high-density polyurethane foam
Internal bed frame	18mm thick plywood and MDF composite
Support slats	12mm thick solid pine wood slats
Support legs	Powder-coated black carbon steel, 2mm wall thickness
Lift mechanism hardware	Zinc-plated steel gas struts and hinges
Storage compartment base	Non-woven fabric lining over plywood base
Footboard pull handle	Matte black bent steel bar
Side rail upholstery	Matching light blue performance fabric
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Underbed storage access	Gas-assisted lift-up platform, operated via footboard pull handle
Mattress support	Fixed wooden slat system with central support beam
Noise reduction design	Velcro anti-slip strips between slats and frame
Assembly design	Knock-down construction with cam-lock and bolt hardware
Leg configuration	Four outward-angled steel legs plus central support legs
Headboard design	Wall-aligned padded grid panels with stitched seams
Floor protection	Injection-molded plastic glides on all leg bases
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary use space	Residential master bedrooms
Secondary use space	Modern guest bedrooms
Target user group	Adult homeowners seeking hidden storage
Recommended matching furniture	Matching upholstered 2-drawer nightstands
Design style compatibility	Minimalist, Scandinavian, and modern contemporary interiors
Installation requirement	Freestanding placement against a solid wall

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - beds and mattresses - safety requirements and test methods
EN 1022:2005	Domestic furniture - seating - determination of stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural frame safety
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances in wood furniture
GB/T 16799-2008	Furniture upholstery fabric performance and durability requirements
GB/T 1952.2-2011	Safety and performance requirements for spring and foam soft mattresses

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural frame safety;
2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances in wood furniture;
3. GB/T 16799-2008: Furniture upholstery fabric performance and durability requirements;
4. GB/T 1952.2-2011: Safety and performance requirements for spring and foam soft mattresses;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-STG-LB-KG-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-STG-LB-KG-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-STG-LB-KG-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

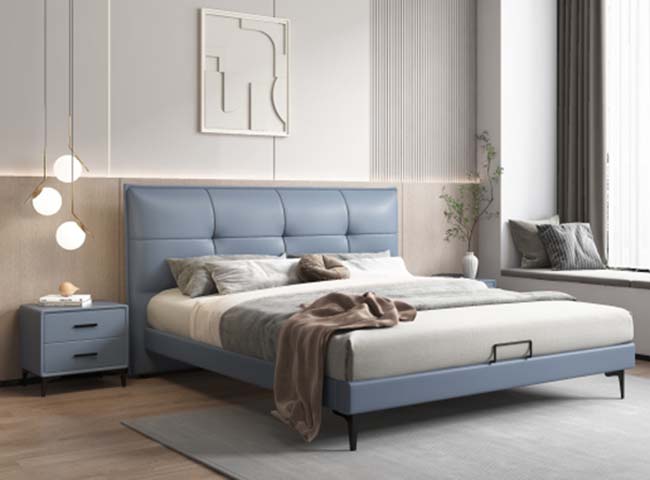

The Youwei Light Blue Grid-Padded Upholstered King Platform Storage Bed, model UPB-STG-LB-KG-01, delivers a streamlined, minimalist silhouette suited to coordinated modern interior schemes. Its visual design centers on a wall-aligned headboard structured with stitched grid-padded panels, upholstered in soft light blue woven performance fabric that carries across the matching side rails for a cohesive, polished look. The frame sits on outward-angled powder-coated black carbon steel support legs, with a low-profile footboard fitted with a matte black bent steel pull handle that balances understated form and clear functional purpose, avoiding ornate detailing to align with clean contemporary, minimalist, and Scandinavian design aesthetics. Built for lasting daily use, the bed’s core structure uses a eucalyptus wood foundation paired with an 18mm thick plywood and MDF composite internal frame. The headboard is cushioned with 35mm high-density polyurethane foam for comfortable back support when sitting upright, while mattress support comes from a fixed system of 12mm thick solid pine slats secured with a central support beam, fitted with Velcro anti-slip strips between slats and frame to reduce operational noise. The four outer angled steel legs (with 2mm wall thickness) are joined by additional central support legs, each tipped with injection-molded plastic glides to protect finished flooring surfaces. No box spring is required for setup, as the slat system provides direct, stable mattress support. The integrated underbed storage is accessed via a gas-assisted lift-up platform operated through the footboard pull handle, using zinc-plated steel gas struts and hinges rated for repeated long-term use; the storage compartment is lined with non-woven fabric over a plywood base to keep stored items protected. This bed is sized to comfortably accommodate two adults, with functional design tailored for residential master bedrooms, and well suited for modern guest bedrooms where flexible, hidden storage is a priority. It pairs seamlessly with matching upholstered 2-drawer nightstands for a coordinated room layout, and requires freestanding placement against a solid wall for installation. For procurement planning, note the model ships in knock-down form with cam-lock and bolt hardware, allowing on-site assembly with standard tools. All relevant load ratings, mechanism durability, and upholstery abrasion resistance metrics are published to support long-term use expectations. Total packaged weight and volume metrics are available to coordinate shipping and last-mile delivery, with assembly time aligned to standard residential furniture installation workflows.
