PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1640 × 2170 × 1100 mm
Compatible mattress size	1500 x 2000 mm
Headboard height from floor	1100 mm
Headboard cushion thickness	120 mm
Bed frame side rail height	350 mm
Storage compartment internal depth	300 mm
Metal support leg height	150 mm
Slat spacing for mattress support	70 mm
Total number of support slats	28
Center support beam count	1
Foot pull handle length	200 mm
Floor clearance under storage compartment	30 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity (mattress + sleepers)	500 kg
Lift mechanism rated support weight (mattress)	70 kg
Recommended mattress thickness	250 mm
Fabric abrasion resistance (Martindale)	30000 cycles
Foam padding density (headboard/cushions)	35 kg/m³
Foam rebound rate	60%
Lift mechanism open angle	45 degrees
Lift mechanism cycle life	10000 cycles
Net product weight	73 kg
Bed Static Load Reference	400 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Headboard upholstery	Light grey linen-look woven polyester fabric
Headboard cushion padding	35kg/m³ high-resilience polyurethane foam
Inner bed frame core	18mm thick engineered plywood + 1.2mm square steel tubing
Mattress support slats	12mm thick solid birch wood slats
Exposed support legs	20mm diameter matte black powder-coated carbon steel
Foot pull handle	Matte black coated steel U-bar
Storage lift mechanism	Dual gas struts + steel hinge bracket set
Side rail upholstery	Matching light grey woven fabric over 8mm MDF panel
Hardware connectors	Zinc-plated steel bolts, dowels and corner brackets
Slat noise-dampening pads	3mm thick EVA foam strips
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Lift-up under-bed storage	Gas-strut assisted platform lifts from foot end via pull handle, locks in open position
Reclined headboard support	Angled 12-degree reclined 4-segment padded cushions for seated back support
No box spring required	Wooden slat platform provides direct rigid support for all standard mattress types
Noise-reduced support system	EVA padded slat mounts eliminate metal-wood friction squeaks during use
Knockdown assembly	Frame disassembles into flat panels for transport, assembled with included hex key hardware
Ventilated mattress support	Evenly spaced slats allow 80%+ air circulation under mattress to reduce moisture buildup
Smooth soft-close lift	Gas struts control lifting speed and prevent sudden platform drop during access
Floor protection feet	Each metal leg fitted with non-scratch plastic glide to prevent hard floor damage
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary use case	Master or guest bedroom double bed for adult residential use
Recommended room size	Minimum 3000 x 3300 mm bedroom to accommodate nightstands and walking clearance
Style compatibility	Pairs with modern minimalist, Scandinavian, or contemporary bedroom interior schemes
Storage suitability	Ideal for compact bedrooms to store off-season bedding, clothing and personal items
Recommended companion furniture	Matching low-profile two-drawer nightstands and 1500mm width dressers for coordinated set
Mattress compatibility	Works with memory foam, latex, hybrid, and spring mattresses 250 mm thick
Floor type suitability	Suitable for hardwood, laminate, tile, and carpeted floors with integrated non-scratch glides

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods, structural safety reference
EN 1022:2018	Domestic furniture - Seating - Determination of stability, applicable for bed edge stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame and structural components
GB 18584-2001	Indoor decoration material limit of harmful substances for wood furniture, applicable for emission testing
GB/T 1952.2-2011	Spring soft mattress furniture test methods, applicable for mattress support surface performance

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame and structural components;
2. GB 18584-2001: Indoor decoration material limit of harmful substances for wood furniture, applicable for emission testing;
3. GB/T 1952.2-2011: Spring soft mattress furniture test methods, applicable for mattress support surface performance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UPB-LG-4P-LIFT-Q

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UPB-LG-4P-LIFT-Q

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UPB-LG-4P-LIFT-QOpen Export Tool

Quick Actions

Post an RFQ

Product Description

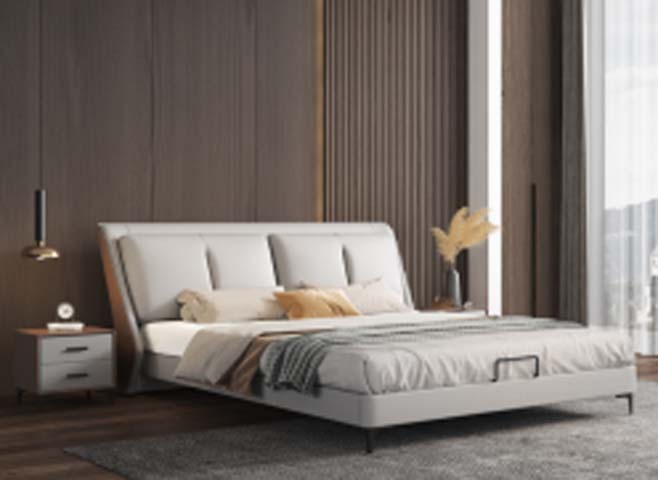

This unbranded light grey upholstered lift-up storage platform bed, model UPB-LG-4P-LIFT-Q, presents a streamlined modern minimalist silhouette defined by its four-segment padded headboard and low-profile platform frame, finished in a consistent soft light grey woven fabric that creates a cohesive, uncluttered visual presence across the headboard, side rails, and integrated base. The angled headboard is structured to offer comfortable seated back support, while the evenly aligned matte black metal support legs add a subtle refined contrast without disrupting the clean, understated aesthetic. Constructed for long-term regular use, the bed features a robust inner frame made of engineered plywood reinforced with square steel tubing, paired with solid birch wood slats that sit on EVA-padded mounts to eliminate friction-related squeaks during use. The four headboard segments are padded with high-resilience polyurethane foam and wrapped in linen-look woven polyester fabric with high abrasion resistance, while the side rails are upholstered in matching fabric over MDF panels. The lift-up storage compartment operates via a dual gas strut mechanism with steel hinge brackets, fitted with a matte black steel U-bar pull handle at the foot end, anchored by matte black powder-coated carbon steel support legs and secured with zinc-plated steel connection hardware. The gas-lift platform lifts smoothly from the foot end, locks securely in its fully open position, and features a soft-close function to prevent sudden drops when accessing the under-bed storage space, which offers ample room for off-season bedding, clothing, and personal items. The wooden slat support system requires no additional box spring, delivers rigid direct support for all standard mattress types, and allows consistent air circulation beneath the mattress to reduce moisture buildup. The frame is designed for knockdown assembly, shipping in flat-packed cartons with all necessary hex key hardware included for straightforward setup. This bed is sized as a queen model to fit standard queen mattresses, making it well-suited for adult use in residential master or guest bedrooms, particularly compact spaces where integrated storage adds functional value. It pairs seamlessly with modern minimalist, Scandinavian, or contemporary interior schemes, and coordinates naturally with matching low-profile two-drawer nightstands and appropriately sized dressers for a cohesive bedroom layout. For procurement planning, note that the bed requires a bedroom with sufficient clearance to accommodate walking space and adjacent nightstands, works with memory foam, latex, hybrid, and spring mattresses of the recommended thickness, and is shipped across multiple cartons with a standard assembly time for professional or residential installation teams.

Light Grey Upholstered Lift-Up Storage Platform Bed with 4-Segment Padded Headboard Specifications
