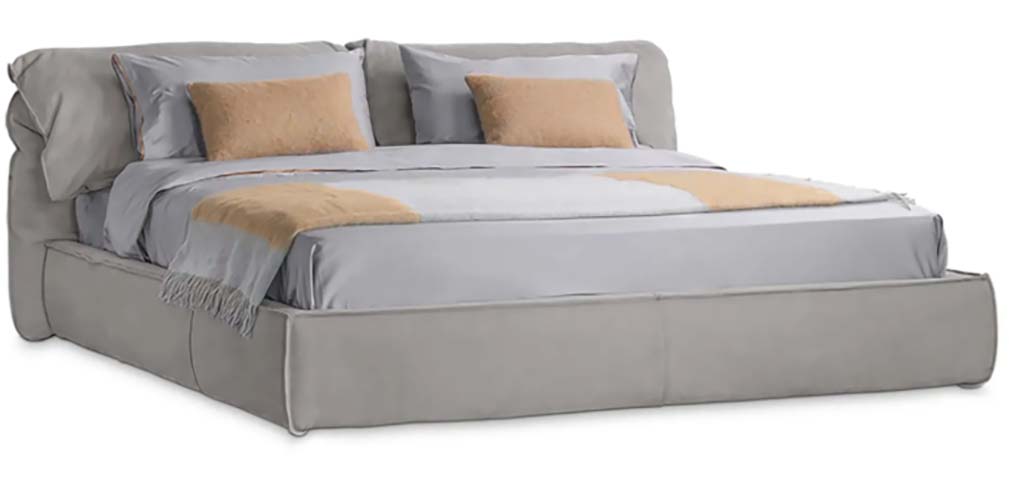

Product supplierLight Gray Soft Upholstered Low-Profile Platform Bed with Curved Pillow Headboard, Light gray woven polyester fabric, soft matte finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1830 × 2250 × 960 mm | |
|---|---|---|
| Mattress fit surface | 1800 x 2000 mm | |
| Headboard height above platform | 660 mm | |
| Platform top height from floor | 300 mm | |
| Under-bed floor clearance | 20 mm | |
| Headboard padding thickness | 133 mm | |
| Side rail width/thickness | 200 mm | |
| Foot rail height from floor | 300 mm | |
| Compatible mattress thickness | 356 mm | |
| Slat thickness | 25 mm | |
| Slat spacing | 70 mm | |
| Center support beam count | 1 unit | |
| Slat count | 12 units | |
| Corner radius on frame edges | 50 mm | |
| Upholstery seam piping width | 8 mm | |
| Side Rail Thickness | 40 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static weight capacity | 363 kg | |
|---|---|---|
| Net product weight | 68 kg | |
| Recommended maximum user count | 2 adults | |
| Foam density (headboard padding) | 35 kg/m³ | |
| Foam rebound rate | 45% | |
| Upholstery abrasion resistance | 30000 cycles | |
| Anti-squeak noise rating | ≤30 dB during normal use | |
| Seam stitch pitch | 8 stitches per 30 mm | |
| Recommended warranty period | 12 months | |
| Bed Static Load Reference | 400 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| External upholstery fabric | Light gray woven polyester fabric, soft matte finish | |
|---|---|---|
| Headboard cushion fill | 35 kg/m³ high-density polyurethane foam | |
| Internal structural frame | 18 mm thick engineered wood (MDF/plywood) with reinforced corner blocks | |
| Mattress support slats | 25 mm thick solid pine wood slats, sanded smooth | |
| Center support beam | 40 mm thick engineered wood beam with 3 support legs | |
| Frame base feet | 15 mm diameter non-marking plastic glide feet | |
| Seam trim | Matching light gray piping stitched along all panel edges | |
| Assembly hardware | Zinc-plated steel bolts, barrel nuts and hex key included | |
| Under-frame bracing | 1.2 mm thick steel cross-bars connecting side rails | |
| Fabric backing | Non-woven polypropylene dust cover on frame underside | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Mattress support design | Wood slat platform, no box spring required for standard mattress use | |
|---|---|---|
| Headboard function | Fixed overstuffed padded backrest for seated reading/leaning in bed | |
| Assembly requirement | Two-person assembly with included hardware, no special tools needed | |
| Edge design | Rounded upholstered corners on all rails to reduce impact injury risk | |
| Floor protection | Non-marking glide feet prevent scratches on hard flooring surfaces | |
| Cleaning method | Spot-clean upholstery with mild fabric detergent, do not machine wash | |
| Noise reduction | Reinforced slat sockets and padded joint buffers eliminate squeaking during use | |
| Doorway access compatibility | Fits through standard 760 mm wide residential doorways when disassembled | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary application space | Residential master bedrooms, modern minimalist or soft contemporary interiors | |
|---|---|---|
| Suitable room size | Bedrooms ≥12 m² to allow 600 mm clearance on sides and foot of bed | |
| Target user group | Adult users preferring soft, low-profile bed design without storage features | |
| Recommended matching furniture | Low-profile nightstands with soft rounded edges, light-toned bedroom case goods | |
| Recommended flooring type | Hardwood, laminate, tile or low-pile carpet with glide feet for floor protection | |
| Style compatibility | Pairs with neutral, warm-toned, Scandinavian, wabi-sabi or Japandi interior design schemes | |
| Use scenario note | Suitable for daily adult sleeping, seated reading or screen use in bed with padded headboard support |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1725:1998 | Domestic furniture – Beds and mattresses – Safety requirements and test methods | |
|---|---|---|
| EN 1022:2018 | Domestic furniture – Seating/bed furniture – Determination of stability |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal wood frame components | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing | |
| GB/T 1952.2-2011 | General technical requirements for upholstered furniture (beds and sofas) | |
| GB 20400-2006 | Leather/fabric upholstery limits for harmful dyes and pH value |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal wood frame components; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing; 3. GB/T 1952.2-2011: General technical requirements for upholstered furniture (beds and sofas); 4. GB 20400-2006: Leather/fabric upholstery limits for harmful dyes and pH value; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
