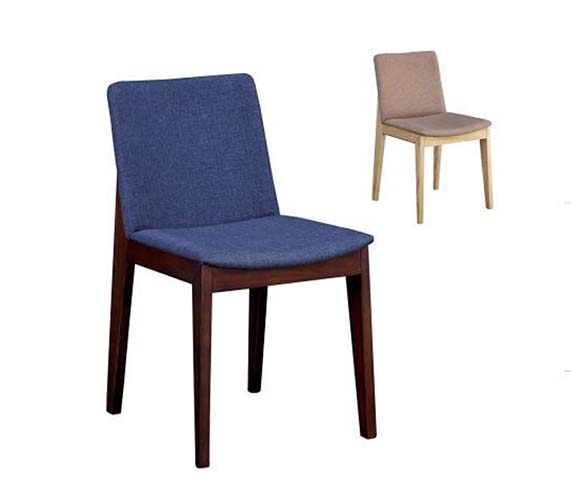

Armless Upholstered Solid Wood Dining Chair (model DC-SW-UPH-001) is listed under hotel guest room chair, with overall dimensions of 559 × 610 × 890 mm and main material of Imported Ash Solid Wood. Load capacity: 136 kg. Certifications: armless,design,fixed,four-leg,base,padded,upholstered,seat,and,back. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 559 x 610 x 890 mm | |
|---|---|---|
| Seat width | 559 mm | |
| Seat depth | 510 mm | |
| Seat height from floor | 508 mm | |
| Backrest height above seat | 457 mm | |
| Front leg cross-section | 30 x 30 mm | |
| Rear leg cross-section | 35 x 35 mm | |
| Seat padding thickness | 64 mm | |
| Backrest padding thickness | 38 mm | |
| Leg floor contact pad diameter | 25 mm | |
| Seat front edge radius | 20 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single chair net weight | 12.7 kg | |
|---|---|---|
| Static weight capacity | 181 kg | |
| Seat foam density | 50 kg/m³ | |
| Fabric abrasion resistance | 30000 Martindale cycles | |
| Foam rebound rate | 45% | |
| Seam stitch pitch | 8 stitches per inch | |
| Frame static load test rating | 136 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Frame and legs | Solid rubberwood with stained walnut or light oak finish | |
|---|---|---|
| Seat and back upholstery | Woven polyester fabric, 0.8mm thickness, breathable matte texture | |
| Seat padding | High-density polyurethane foam with 10mm top dacron layer | |
| Back padding | Medium-density polyurethane foam | |
| Internal support structure | 18mm thick plywood seat base, connected to wood frame with metal dowels | |
| Floor protection glides | Injection-molded plastic pads fitted to each leg foot |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating type | Fixed static armless seating with no swivel, tilt, or height adjustment | |
|---|---|---|
| Stacking capability | Non-stackable design, four fixed legs positioned to prevent nesting | |
| Assembly requirement | Legs-only assembly with included hardware, 4 screws per leg | |
| Floor compatibility | Non-marking plastic glides suitable for hardwood, tile, and vinyl flooring |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential dining rooms | Pairs with standard 760 mm height dining tables for everyday family meals | |
|---|---|---|
| Cafes and casual restaurants | Light commercial use with stain-resistant fabric for high-turnover seating |
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture strength, durability and safety for domestic seating, applicable for performance testing | |
|---|---|---|
| EN 1022:2018 | Seating stability test standard, applicable for front/rear/side tipping verification |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for frame strength and finish quality | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for formaldehyde emission verification | |
| GB/T 19833-2023 | Furniture mechanical strength test for seating, applicable for static load and stability validation |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for frame strength and finish quality; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission verification; 3. GB/T 19833-2023: Furniture mechanical strength test for seating, applicable for static load and stability validation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
