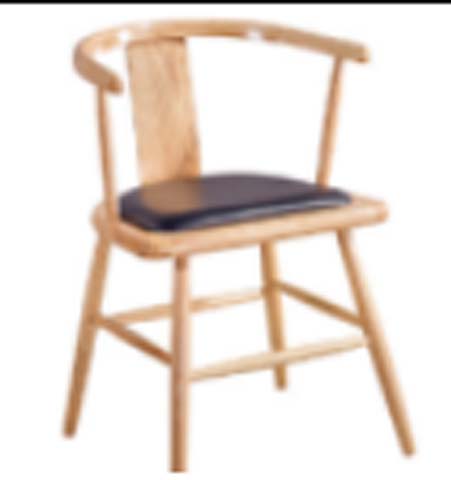

Light Solid Wood Curved Back Dining Armchair with Dark Upholstered Seat (model WDCH-ARM-001-CURVEBK) is listed under hotel guest room chair, with overall dimensions of 600 × 630 × 845 mm and main material of Imported Ash Solid Wood. Load capacity: 136 kg. Certifications: Scandinavian,minimalist,style,fixed,four-leg,structure,upholstered,seat,integrated,curved,armrests. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W x D x H) | 600 x 630 x 845 mm | |
|---|---|---|
| Seat height | 480 mm | |
| Seat width | 500 mm | |
| Seat depth | 450 mm | |
| Backrest height above seat | 365 mm | |
| Backrest width | 490 mm | |
| Armrest height above seat | 200 mm | |
| Leg height (floor to seat frame) | 440 mm | |
| Stretcher height above floor | 160 mm | |
| Seat cushion thickness | 50 mm | |
| Front leg splay angle from vertical | 8 degrees | |
| Rear leg splay angle from vertical | 6 degrees | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended static load capacity | 136 kg | |
|---|---|---|
| Net weight per unit | 12 kg | |
| Seat foam density | 35 kg/m³ | |
| Seat foam rebound rate | 45% | |
| Frame static load rating per leg | 60 kg | |
| Wobble deflection under full load | 2 mm | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Frame construction | FAS-grade solid hardwood (oak/beech/elm variant) | |
|---|---|---|
| Seat upholstery cover | 0.8mm thick matte PU leather, abrasion resistance 30000 cycles | |
| Seat fill | High resilience polyurethane foam, 50mm thickness | |
| Frame finish | Clear matte nitrocellulose lacquer, water-resistant, wear-resistant | |
| Hardware and joinery | Mortise and tenon joinery with steel reinforcement screws | |
| Foot pads | Non-marking 5mm thick PP anti-scratch adjustable foot pads |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating function | Fixed upright seating position optimized for 750mm standard dining tables | |
|---|---|---|
| Arm support | Continuous semicircular curved rail forming integrated armrests and top back rail | |
| Back support | Single vertical central back slat with slightly curved profile | |
| Floor protection | Adjustable foot pads compensate for 5mm of uneven floor height |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Applicable dining spaces | Home dining rooms, casual restaurants, cafe seating areas, Japanese/Scandinavian style interiors | |
|---|---|---|
| Compatible table configuration | Standard 750mm height rectangular or round dining tables |
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture - Strength, durability and safety for domestic seating, applicable for dining chair load and stability testing | |
|---|---|---|
| EN 1022:2018 | Domestic furniture - Seating - Determination of stability, applicable for static stability testing of four-leg chairs |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for solid wood dining chair structural safety and finish quality | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing of wood and finish materials |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for solid wood dining chair structural safety and finish quality; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing of wood and finish materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
