PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	580 x 620 x 820 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static load capacity	140 kg
Reference net weight	10 kg
Seating capacity	1 person
Backrest lateral support rating	70 kg static reference
Cushion compression set target	35 percent maximum after 22 hours at 70 degrees C
Fabric abrasion acceptance target	30,000 Martindale cycles
Frame cyclic load acceptance target	100,000 cycles
Color option count	1 visible finish
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Brown woven or suede-style fabric over padded foam; exact yarn, nap, and fire rating require supplier BOM confirmation.
Back upholstery	Matching brown padded fabric panel set inside the rectangular exposed frame.
Frame construction	Warm brown wood or wood-veneer square rails forming the arms, legs, and sled runners.
Frame rail finish	Smooth medium-brown stained or veneered finish with 40 mm visible rail width.
Seat support board	12 mm plywood or engineered-wood support board beneath the foam pad.
Cushion foam	High-resilience polyurethane foam with 45 kg/m3 density and 90 mm seat thickness.

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed seating function	Stationary sled-frame chair with no swivel, tilt, height adjustment, or folding mechanism.
Arm support function	Integrated rectangular arm rails provide 200 mm above-seat elbow support and double as side back supports.
Entry and egress	Open front frame provides 420 mm clear entry width; fixed arms limit use under tabletops with narrow aprons.
Floor contact behavior	Two continuous side runners spread load across the floor and reduce rocking on level surfaces.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary use setting	Dining rooms, meeting rooms, hotel lounges, and executive visitor areas needing a warm fixed armchair.
Recommended table pairing	Use with 720 to 760 mm high dining or meeting tables and verify apron clearance before bulk ordering.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture safety and stability suggestion	EN 12521
Contract furniture surface suggestion	EN 14465
Upholstery combustion suggestion	EN 1021and EN 1021

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Furniture structural strength suggestion	GB/T 10357.3
Furniture seating dimensions suggestion	GB/T 3326
Furniture formal-emission suggestion	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. Furniture structural strength suggestion: GB/T 10357.3;
2. Furniture seating dimensions suggestion: GB/T 3326;
3. Furniture formal-emission suggestion: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WFA-DIN-0580-BR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WFA-DIN-0580-BR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WFA-DIN-0580-BROpen Export Tool

Quick Actions

Post an RFQ

Product Description

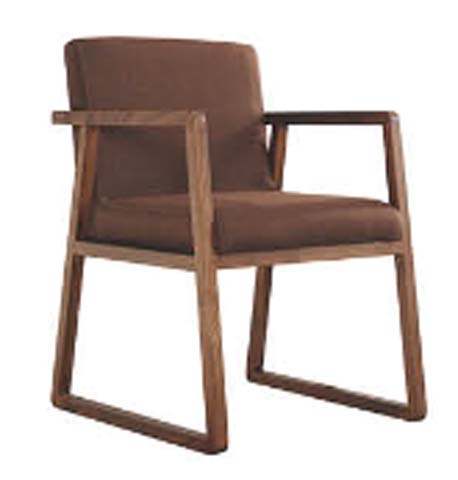

The Upholstered Wooden Frame Dining Armchair, model WFA-DIN-0580-BR, is an unbranded fixed-position dining chair with a warm, structured appearance. Its brown woven or suede-style upholstery is set against a warm brown wood or wood-veneer frame, giving the piece a cohesive residential-lounge character while remaining appropriate for formal seating settings. The chair’s visual identity is defined by square-profile rails that form the arms, legs, and continuous sled runners. A matching brown padded back panel sits inside the rectangular exposed frame, while the upholstered seat creates a soft contrast with the clean linear frame. The visible frame rail is 40 mm wide and finished in a smooth medium-brown stain or veneer. Overall dimensions are 580 x 620 x 820 mm, with 540 mm of clear width between the armrests and a 420 mm clear opening at the front. Construction combines upholstered comfort with a supportive fixed frame. The seat uses high-resilience polyurethane foam at 45 kg/m³ density and 90 mm finished cushion thickness, placed over a 12 mm plywood or engineered-wood support board. The backrest includes 70 mm padding and a 240 mm lumbar support zone. Product targets include a 35 percent maximum cushion compression set after 22 hours at 70 degrees Celsius, 30,000 Martindale abrasion cycles for the fabric, and a 100,000-cycle frame cyclic load acceptance target. The stated static load capacity is 140 kg, with a 70 kg static reference for backrest lateral support. Exact yarn, nap, and fire-rating details require supplier bill-of-materials confirmation. Functionally, the chair does not swivel, tilt, adjust in height, or fold. The integrated rectangular arm rails rise 200 mm above the seat for elbow support and also act as side back supports. Two continuous side runners distribute floor contact and reduce rocking on level surfaces. The chair seats one person and has a reference net weight of 10 kg. It is suited to dining rooms, meeting rooms, hotel lounges, and executive visitor areas that call for a warm fixed armchair. It pairs with dining or meeting tables 760 mm high at the maximum recommended height, and apron clearance should be checked because the fixed arms may not fit beneath narrow table aprons. For procurement, each set ships in two cartons, with packaged gross weight of 23 kg and carton dimensions of 850 x 420 x 720 mm. Reference carton volume is 0.26 m³ per set, assembly time is 40 minutes, and indicative loading is 135 sets in a 20GP container at 85 percent space utilization.

Upholstered Wooden Frame Dining Armchair Specifications
