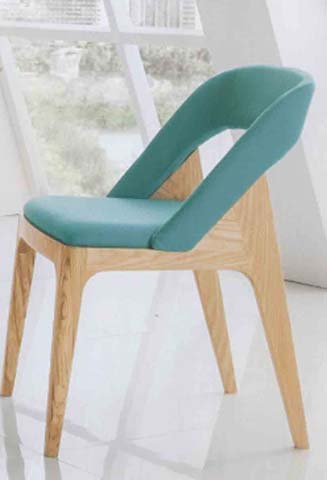

Teal Upholstered Light Oak Wood Frame Dining Chair with Open Cutout Backrest (model DC-OAK-TEAL-CUTOUT-01) is listed under hotel guest room chair, with overall dimensions of 570 × 590 × 910 mm and main material of Imported Ash Solid Wood. Load capacity: 120 kg. Certifications: modern,style,armless,fixed,dining,chair,cutout,open,back. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 570 x 590 x 910 mm | |
|---|---|---|
| seat height | 460 mm | |
| seat width | 480 mm | |
| seat depth | 480 mm | |
| seat cushion thickness | 40 mm | |
| backrest total height | 450 mm | |
| backrest cutout horizontal width | 280 mm | |
| front leg height | 420 mm | |
| rear leg height | 730 mm | |
| leg splay angle | 12 degrees | |
| under-seat knee clearance height | 380 mm | |
| frame rail thickness at seat edge | 30 mm | |
| upholstered backrest width at top | 520 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| net weight per chair | 6 kg | |
|---|---|---|
| static load capacity | 120 kg | |
| seat foam density | 35 kg/m³ | |
| foam rebound rate | 55% | |
| fabric abrasion resistance | 30000 cycles | |
| joint static load durability | 100000 cycles | |
| anti-tip stability angle | 18 degrees | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| frame and legs | Solid natural oak wood with light matte clear finish | |
|---|---|---|
| seat upholstery | Teal woven polyester fabric | |
| backrest upholstery | Teal woven polyester fabric over curved wood core | |
| seat padding | High-resilience polyurethane foam | |
| back padding | Densified polyurethane foam | |
| joining hardware | Zinc-plated steel screw fittings |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| seating posture | Upright 95-degree torso angle optimized for dining use | |
|---|---|---|
| assembly requirement | Partial leg attachment with included hardware | |
| floor protection | Plastic glide feet installed on leg bases | |
| back ventilation | Central open cutout reduces contact and improves air flow |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| residential dining rooms | Pairs with 750mm height dining tables for family meals and casual gatherings | |
|---|---|---|
| commercial cafe seating | Scratch-resistant wood frame and durable fabric suit daily high-traffic cafe use |
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture strength, durability and safety for domestic seating, applicable for stability and load testing | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignition resistance (smolder test), applicable for fabric fire safety |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to frame strength and finish | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable to formaldehyde emission control |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame strength and finish; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission control; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
