PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall footprint	780 x 760 x 940 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static load capacity	130 kg
Net weight	14 kg
Seat foam density	35 kg/m3
Back and lumbar foam density	28 kg/m3
Foam resilience	38 percent
Fabric abrasion acceptance	50,000 Martindale cycles
Fabric mass	320 g/m2
Seam pitch	8 stitches per 100 mm
Color options	1 standard mustard yellow finish
Warranty duration	36 months

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer shell	Contoured upholstered soft shell in mustard yellow woven fabric over a rigid molded inner form
Seat cushion	Integrated polyurethane foam pad with fabric covering and stitched perimeter piping
Back and lumbar support	Padded curved back shell with a separate stitched lumbar cushion zone
Support frame	Black powder-coated steel wire sled frame with two continuous side loops and cross bracing
Frame joint construction	Welded rod intersections with concealed shell-mounting points under the seat
Floor contact finish	Black coated continuous runners without separate glides in the visible view

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Posture support	One-piece reclined shell combines back, lumbar and side-bolster support for relaxed lounge seating
Base stability	Four-point wire sled base distributes load through continuous front-to-rear runners
Space efficiency	Armless compact shell allows close placement beside tables or in grouped seating areas
Non-swivel fixed design	The upholstered shell is fixed to the stationary wire frame with no visible tilt, swivel or height control

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Lounge and reception setting	Suited to lobby, lounge, cafe, breakout and guest-room seating where the high curved shell provides visual softness and individual body support.
Residential living space	Works as an accent chair beside a sofa, window or side table in a living room, study or bedroom corner.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LCH-WING-MY-WB

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LCH-WING-MY-WB

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LCH-WING-MY-WBOpen Export Tool

Quick Actions

Post an RFQ

Product Description

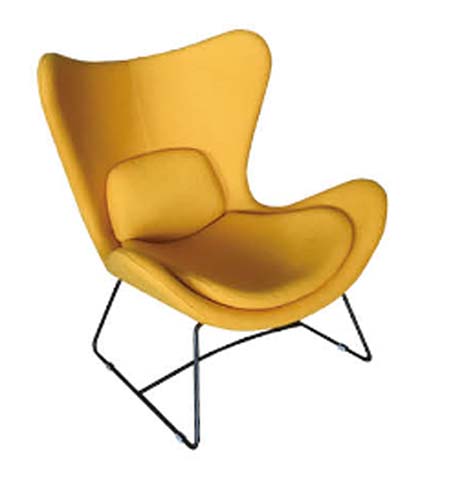

The Mustard Yellow Upholstered Wing Lounge Chair combines a relaxed wing-back silhouette with a crisp black metal wire sled base, giving commercial and residential interiors a modern accent with clear visual contrast. Its contoured, armless shell wraps the sitter in a high curved back, integrated side bolsters, and a separate stitched lumbar zone, while visible seam piping defines the seat and back edges. The open sled frame keeps the form light from every angle, and the mustard yellow woven upholstery adds warmth against the matte black base. Construction centers on a rigid molded inner form covered by a soft upholstered outer shell. The seat uses an integrated polyurethane foam pad, with back and lumbar padding shaped into the curved shell. Support is provided by a black powder-coated steel wire frame made from two continuous side loops with cross bracing. Rod intersections are welded, and shell-mounting points are concealed beneath the seat. Continuous front-to-rear runners create a four-point sled base without separate visible glides. Designed for stationary lounge use, the fixed chair does not swivel, tilt, or adjust in height. The reclined one-piece shell brings back, lumbar, and side-bolster support together for casual seating, while the compact armless profile allows placement close to tables or within grouped seating arrangements. The open base also helps maintain a spacious feel in smaller zones. The chair is well suited to lobby, reception, cafe, breakout, lounge, and guest-room settings where individual comfort and a soft, distinctive presence are desired. In residential projects, it works as an accent chair beside a sofa, window, or side table in a living room, study, or bedroom corner. Specified as model LCH-WING-MY-WB, the chair is unbranded and has an overall footprint of 780 x 760 x 940 mm, a net weight of 14 kg, and a recommended static load capacity of 130 kg. The seat cushion is 90 mm thick, backrest padding is 70 mm thick, and the lumbar support zone is 240 mm high, with 540 mm of clear width between armrests. Seat foam density is 35 kg/m3, back and lumbar foam density is 28 kg/m3, and foam resilience is 38 percent. The 320 g/m2 woven fabric has a fabric abrasion acceptance of 50,000 Martindale cycles. For procurement and installation planning, each set ships in two cartons, with a packaged gross weight of 23 kg and reference carton dimensions of 850 x 420 x 720 mm. Reference assembly time is 40 minutes per set, and the indicative loading quantity is 135 sets in a 20GP container at 85 percent space utilization. Buyers should review delivery access, floor protection needs, assembly resources, and fabric suitability for the intended traffic level.
