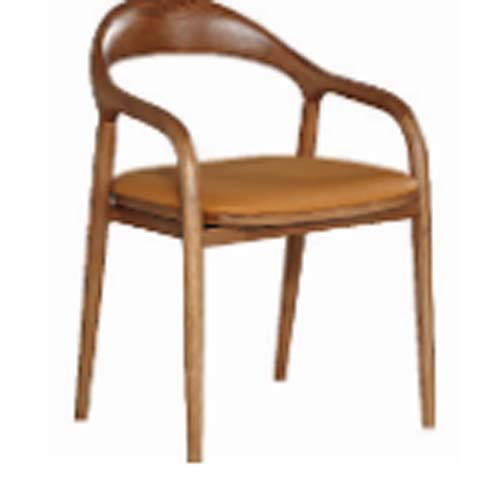

Wooden Frame Dining Chair with Upholstered Seat (model DCH-WD-560WAL-TAN) is listed under hotel guest room chair, with overall dimensions of 560 × 520 × 780 mm and main material of Imported Ash Solid Wood. Load capacity: 120 kg. Certifications: Curved,armrest,design,Walnut-tone,wood,finish,Tan,upholstered,seat,Four-leg,structure. This page consolidates 6 groups of specifications, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 560 x 520 x 780 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product weight | 7 kg | |
|---|---|---|
| Static seat load capacity | 120 kg | |
| Stacking quantity | 0 | |
| Seat cushion foam density | 40 kg/m³ | |
| Frame joint static load resistance | 800 N | |
| Cushion compression set | 15% | |
| Recommended maximum user weight | 110 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Frame construction | Solid walnut-tone hardwood | |
|---|---|---|
| Seat base panel | 12mm thick hardwood plywood | |
| Seat upholstery | Tan faux leather | |
| Cushion fill | High resilience polyurethane foam | |
| Frame finish | Matte clear wood lacquer | |
| Foot glides | Nylon floor protection glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Continuous arm-back support | Integrated curved frame provides back and forearm support | |
|---|---|---|
| Fixed non-reclining structure | Rigid frame maintains upright seating posture | |
| Floor protection design | Non-marking glides reduce friction on hard flooring | |
| Lightweight repositioning | Low total weight allows easy single-person movement |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential dining spaces | Pairs with standard height dining tables for home dining areas | |
|---|---|---|
| Cafe and bistro seating | Suitable for commercial casual dining venues |
EU Market Access Requirements* EN Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.
