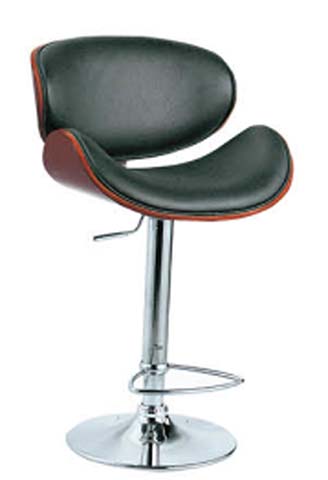

Adjustable Swivel Gas Lift Bar Stool with Black Upholstery and Cherry Bentwood Trim (model BS-GL-BW01-BLK-CHR) is listed under hotel guest room chair, with overall dimensions of 530 × 560 × 1150 mm and main material of Imported Ash Solid Wood. Load capacity: 150 kg. Certifications: Modern,style,gas-lift,adjustable,swivel,base,upholstered,seat,bentwood,construction. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 530 x 560 x 1150 mm | |
|---|---|---|
| Minimum seat height | 610 mm | |
| Maximum seat height | 810 mm | |
| Seat width | 430 mm | |
| Seat depth | 430 mm | |
| Backrest height | 300 mm | |
| Backrest width | 480 mm | |
| Base diameter | 400 mm | |
| Footrest ring height | 230 mm | |
| Gas lift column diameter | 50 mm | |
| Seat shell thickness at edge | 20 mm | |
| Rubber floor protector ring width | 10 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight per unit | 13 kg | |
|---|---|---|
| Maximum static load capacity | 150 kg | |
| Seat foam density | 45 kg/m³ | |
| Foam rebound rate | 45% | |
| Cushion padding thickness | 60 mm | |
| Backrest padding thickness | 40 mm | |
| Gas lift stroke length | 200 mm | |
| Seat-to-backrest angle | 103 degrees | |
| Upholstery abrasion resistance | 50000 Martindale cycles | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back shell | 12mm kiln-dried bent plywood with cherry-toned wood veneer edge trim | |
|---|---|---|
| Upholstery cover | 1.0mm thick black polyurethane (PU) faux leather with wipe-clean finish | |
| Cushion core | High-density polyurethane foam wrapped in 20g polyester fiber batting | |
| Support column | 1.5mm thick chrome-plated steel gas lift cylinder, polished finish | |
| Footrest ring | 12mm diameter chrome-plated solid steel ring, welded to column collar | |
| Base plate | 2.0mm thick polished chrome-plated steel round disc base with anti-slip rubber ring |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Side-mounted under-seat lever activates gas lift to adjust seat height between 810 mm | |
|---|---|---|
| Swivel function | 360-degree full rotation around central column without position locks | |
| Foot support | Fixed chrome footrest ring provides stable foot placement at all height settings | |
| Floor protection | Embedded rubber ring on base bottom prevents floor scratches and reduces sliding noise |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential kitchen island seating | Adjustable height fits both 900mm counter and 1100mm bar height surfaces | |
|---|---|---|
| Home bar or recreation area use | 360-degree swivel supports easy conversation and movement while seated |
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture – Strength, durability and safety requirements for domestic seating | |
|---|---|---|
| EN 1022:2018 | Domestic furniture – Seating – Determination of stability | |
| EN 1335-2:2009 | Office work chairs safety requirements, applicable as reference for gas lift components |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | General-purpose office chairs standard, reference for gas lift and base load testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to bentwood shell components | |
|---|---|---|
| GB/T 10357.3-2013 | Mechanical test method for furniture: chair and stool strength and durability | |
| GB 6675.3-2013 | Safety requirements for furniture hardware, applicable to gas lift and moving parts |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to bentwood shell components; 2. GB/T 10357.3-2013: Mechanical test method for furniture: chair and stool strength and durability; 3. GB 6675.3-2013: Safety requirements for furniture hardware, applicable to gas lift and moving parts; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
