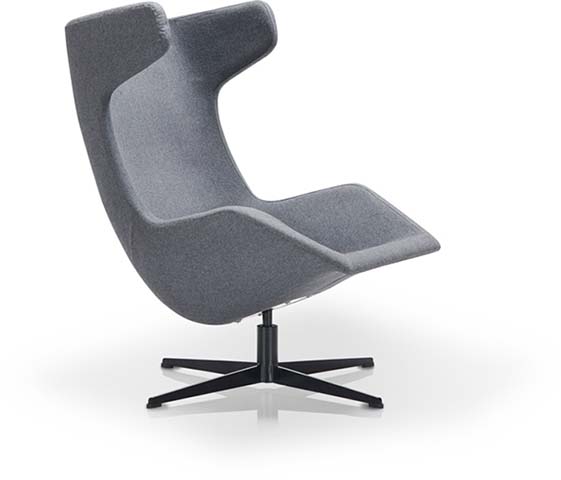

Armless High-Back Winged Swivel Lounge Chair (model LGE-SW-ARMHB-4S-GR01) is listed under hotel guest room chair, with overall dimensions of 940 × 813 × 1000 mm and main material of Imported Ash Solid Wood. Certifications: Modern,design,fixed,reclined,lounge,posture,360°,swivel,armless,structure,four-prong,metal,base,upholstered,high,winged,back. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 940 x 813 x 1000 mm | |
|---|---|---|
| Seat height (floor to seat top) | 483 mm | |
| Seat width | 692 mm | |
| Seat depth (front to back) | 559 mm | |
| Backrest total height (seat to top) | 660 mm | |
| Headrest wing height (seat to upper edge) | 660 mm | |
| 4-star base spread diameter | 700 mm | |
| Base arm cross-section width | 30 mm | |
| Upholstered shell thickness at seat edge | 120 mm | |
| Base clearance (floor to chair underside) | 220 mm | |
| Seat front edge width | 790 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended static weight capacity | 136 kg | |
|---|---|---|
| Net product weight | 24 kg | |
| Seat foam density | 45 kg/m³ | |
| Back foam density | 40 kg/m³ | |
| Foam rebound rate | 55% | |
| Seat foam thickness at center | 100 mm | |
| Back foam thickness at center | 80 mm | |
| Upholstery fabric abrasion resistance | 50000 Martindale cycles | |
| Swivel rotation range | 360° | |
| Warranty period for structural frame | 5 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | Gray textured woven polyester performance fabric | |
|---|---|---|
| Seat core padding | Molded high-resilience polyurethane foam | |
| Back core padding | Molded polyurethane foam with curved ergonomic shaping | |
| Internal frame | 12 mm thick engineered plywood inner shell | |
| Central swivel stem | Powder-coated black cold-rolled steel | |
| Four-star base | 3 mm thick powder-coated black steel cross frame |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Swivel mechanism | Full 360-degree silent rotation on sealed bearing hub | |
|---|---|---|
| Posture configuration | Fixed reclined angle for relaxed lounge seating | |
| Mobility | Fixed stationary base without casters | |
| Ergonomic support | Integrated head wings provide lateral neck and head support |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Commercial lobby spaces | Suitable for hotel lobbies, corporate reception areas, and office lounge zones | |
|---|---|---|
| Residential living areas | Ideal for modern living rooms, reading nooks, and home lounge spaces |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Furniture - Strength, durability and safety for non-domestic seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignitability resistance for cigarette source |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2022 | Safety and performance standard for lounge and public seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to inner shell structure | |
|---|---|---|
| GB 18584-2001 | Indoor decoration materials formaldehyde emission limit for wooden furniture | |
| GB/T 19001-2016 | Quality management system requirement for production consistency |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to inner shell structure; 2. GB 18584-2001: Indoor decoration materials formaldehyde emission limit for wooden furniture; 3. GB/T 19001-2016: Quality management system requirement for production consistency; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
