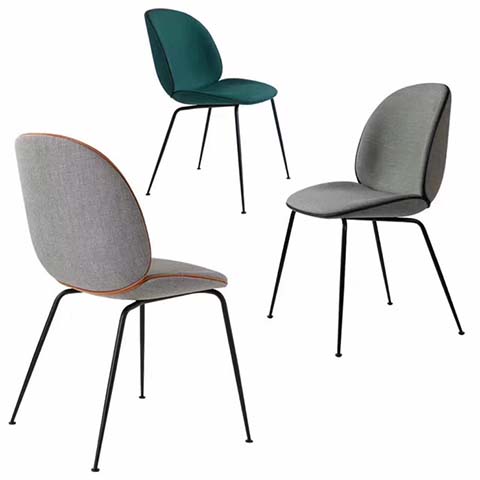

Armless Curved Upholstered Dining Chair with Splayed Black Metal Legs (model DC-BTL-560W610D870H) is listed under hotel guest room chair, with overall dimensions of 560 × 610 × 870 mm and main material of Imported Ash Solid Wood. Load capacity: 200 kg. Certifications: contemporary,minimalist,style,armless,fixed,structure,upholstered,seat,and,back. This page consolidates 6 groups of specifications, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 560 x 610 x 870 mm | |
|---|---|---|
| Seat height | 490 mm | |
| Seat width | 550 mm | |
| Seat depth | 510 mm | |
| Backrest height from seat | 370 mm | |
| Leg tube diameter | 12 mm | |
| Seat cushion thickness | 100 mm | |
| Leg spread width at floor | 520 mm | |
| Leg spread depth at floor | 570 mm | |
| Floor glide diameter | 20 mm | |
| Seat front edge height | 470 mm | |
| Backrest width at widest point | 480 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight per unit | 8 kg | |
|---|---|---|
| Static weight capacity | 150 kg | |
| Seat foam density | 45 kg/m³ | |
| Seat foam rebound rate | 45% | |
| Upholstery abrasion resistance | 30000 Martindale cycles | |
| Seam stitch pitch | 8 stitches per 30 mm | |
| Leg frame static load rating | 200 kg | |
| Floor glide vertical load per leg | 50 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery fabric | Woven polyester fabric, 0.8mm thickness | |
|---|---|---|
| Inner support shell | Molded polypropylene composite, 5mm thickness | |
| Seat and back padding | High-resilience polyurethane foam, multi-layered | |
| Leg frame | Matte black powder-coated solid steel rod, 12mm diameter | |
| Floor glides | Injection-molded hard plastic with non-slip rubber base | |
| Trim options | Black piping trim or exposed walnut-toned wood veneer edge |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating function | Fixed armless seating for single-person dining use | |
|---|---|---|
| Floor protection | Fixed non-marking glides prevent hard floor scratching | |
| Leg stability | Outward-splayed 4-leg design prevents tipping during use | |
| Assembly requirement | Knock-down leg attachment to pre-assembled upholstered shell |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential dining space | Suited for standard 750mm height dining tables in home dining rooms | |
|---|---|---|
| Commercial casual seating | Applicable for cafes, bistros and co-working breakout areas |
EU Market Access Requirements* EN Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
