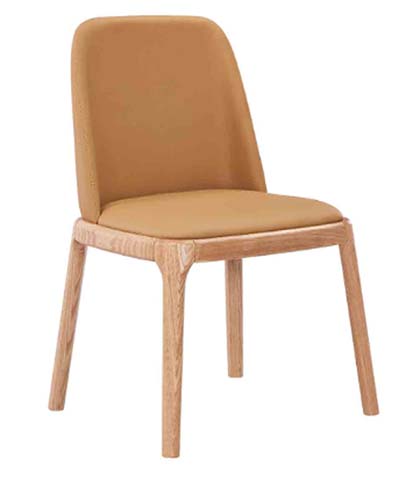

Armless Upholstered Solid Wood Frame Dining Side Chair (model DIN-ARL-TAN-WD-001) is listed under hotel guest room chair, with overall dimensions of 580 × 630 × 820 mm and main material of Imported Ash Solid Wood. Load capacity: 70 kg. Certifications: modern,minimalist,armless,solid,wood,frame,upholstered,seat,and,back,tapered,legs. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 580 x 630 x 820 mm | |
|---|---|---|
| Seat width | 540 mm | |
| Seat depth | 500 mm | |
| Seat height from floor | 500 mm | |
| Backrest height above seat | 370 mm | |
| Seat cushion thickness | 160 mm | |
| Leg cross-section at floor | 30 mm | |
| Front leg splay angle | 8 degrees | |
| Rear leg splay angle | 5 degrees | |
| Seat rail height above floor | 390 mm | |
| Under-seat knee clearance height | 380 mm | |
| Backrest width at top | 480 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight per chair | 12 kg | |
|---|---|---|
| Recommended static weight capacity | 181 kg | |
| Seat foam density | 45 kg/m³ | |
| Foam rebound rate | 45% | |
| Leg floor contact static load per leg | 70 kg | |
| Stacking quantity | 0 | |
| Warranty period | 1 year | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Frame and legs | Solid hardwood with natural light oak finish, 25mm thick seat rail | |
|---|---|---|
| Seat and back upholstery | 1.2mm thick camel-tan faux leather, wipe-clean surface | |
| Seat support structure | 8mm thick plywood seat base with elastic webbing under foam | |
| Seat and back fill | High-resilience polyurethane foam, tight-upholstered to frame | |
| Leg floor protection | Felt floor protection pads affixed to each leg base | |
| Joinery hardware | Zinc-plated steel corner brackets and wood screws at seat rail joints |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating function | Stationary upright seating for dining use, no recline, swivel, or height adjustment | |
|---|---|---|
| Table compatibility | Armless slim profile tucks fully under standard 750mm high dining tables | |
| Floor protection | Felt leg pads prevent scratching hard flooring surfaces without additional accessories | |
| Upholstery maintenance | Smooth non-porous upholstery wipes clean with damp cloth for spill resistance |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential dining rooms | Suitable for daily use at standard-height dining tables, armless design maximizes seating count | |
|---|---|---|
| Cafes and casual restaurants | Durable solid wood frame and wipe-clean upholstery suit light commercial high-traffic seating |
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Applicable for domestic dining chair strength, durability and safety requirements for seating | |
|---|---|---|
| EN 1022:2018 | Applicable for seating stability testing for non-upholstered and upholstered domestic chairs |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for general technical requirements of wooden furniture, dimensional stability and joinery strength | |
|---|---|---|
| GB/T 16799-2008 | Applicable for faux leather upholstery material performance, abrasion and colorfastness requirements | |
| GB 18584-2001 | Applicable for limit of harmful substances in wooden furniture, formaldehyde emission control |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for general technical requirements of wooden furniture, dimensional stability and joinery strength; 2. GB/T 16799-2008: Applicable for faux leather upholstery material performance, abrasion and colorfastness requirements; 3. GB 18584-2001: Applicable for limit of harmful substances in wooden furniture, formaldehyde emission control; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
