PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	860 W x 800 D x 760 H mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Suggested user weight capacity	160 kg
Net weight	28 kg
Seating capacity	1 person
Seat foam density	35 kg/m3
Back and arm foam density	28 kg/m3
Seat cushion thickness	100 mm
Fabric abrasion acceptance	50,000 Martindale cycles
Swivel rotation	360 degrees
Expected daily users	20 users
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Woven polyester-blend textile with visible textured yarns on the high outer shell
Inner upholstery	Contrasting woven fabric covers the seat, inner back, and integrated arm pads
Seat cushion	100 mm foam pad over a rigid seat board, upholstered as one continuous seat and arm assembly
Padded shell	Timber or plywood inner ring with 50 mm foam and fabric wrapping
Swivel base	Low-profile circular metal swivel plate with a floor-protective lower ring
Structural support	Internal timber or steel frame joining the seat ring to the turntable

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Swivel mechanism	360-degree circular turntable allows the user to rotate without moving the base
Enclosed lounge support	Tub-shaped back and arms wrap around the seat to create a semi-private seated zone
Fixed lounge posture	Integrated back and arms provide a relaxed 105-degree seated posture without recline adjustment
Floor-friendly placement	Continuous low ring distributes load and is suited to hard, polished lobby floors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Lounge and breakout areas	Use in office lounges, hotel lobbies, and waiting zones where a compact, visually enclosed single seat is needed
Collaborative open-plan settings	Arrange multiple chairs in small circular clusters for informal conversation while maintaining individual comfort

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LUX-TUB-SW-860

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LUX-TUB-SW-860

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LUX-TUB-SW-860Open Export Tool

Quick Actions

Post an RFQ

Product Description

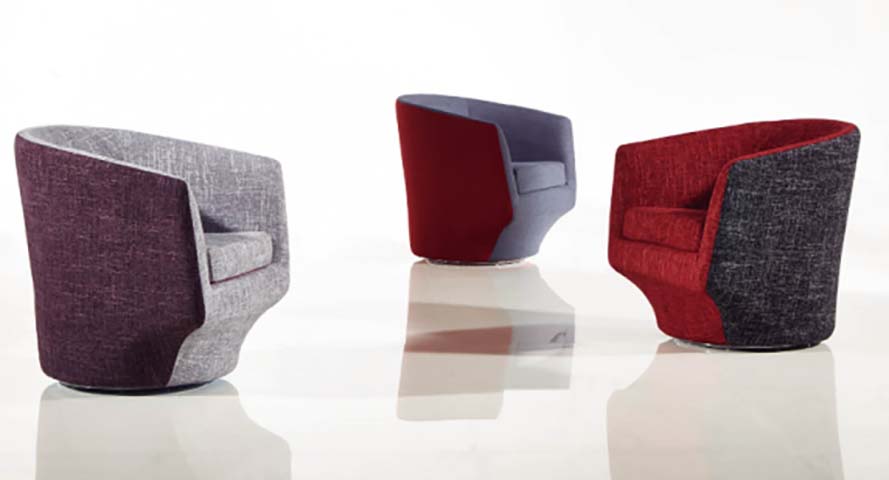

The Upholstered Enclosed Swivel Lounge Tub Chair, model LUX-TUB-SW-860, presents a compact tub form with a continuous curved back and integrated armrests that wrap around the seat. Its two-tone woven upholstery gives the outer shell a pronounced textured yarn appearance, while a contrasting fabric covers the seat, inner back, and arm pads. The chair is supported by a low-profile circular swivel base, producing a neat, residential-inspired lounge silhouette suited to individual seating in commercial interiors. Overall dimensions are 860 W x 800 D x 760 H mm, with a 540 mm clear width between the armrests. The seat uses a 100 mm foam pad over a rigid seat board and is upholstered as one continuous seat and arm assembly. The padded shell combines a timber or plywood inner ring with 50 mm foam and fabric wrapping. Internal structural support is provided by a timber or steel frame that joins the seat ring to the metal turntable, while the base includes a floor-protective lower ring. Seat foam density is 35 kg/m3, and back and arm foam density is 28 kg/m3. The woven polyester-blend outer textile has a fabric abrasion acceptance of 50,000 Martindale cycles. Functionally, the chair accommodates one person and features a 360-degree circular turntable, allowing the user to rotate without moving the base. The enclosed tub-shaped back and arms create a semi-private seated zone, while the fixed integrated structure supports a relaxed 105-degree seated posture without recline adjustment. The suggested user weight capacity is 160 kg. Its continuous low ring helps distribute load and is intended for hard, polished lobby floors, supporting floor-friendly placement in busy settings. The chair is well suited to office lounges, hotel lobbies, waiting zones, and breakout areas where a visually sheltered single seat is required. It can also be arranged in small circular clusters within collaborative open-plan environments, encouraging informal conversation while preserving personal comfort. For procurement, the chair is supplied unbranded and ships as one set in two cartons, with a reference assembly time of 40 minutes per set. Planners should review fabric contrast, shell clearance, swivel access, and floor-surface compatibility when specifying the product. The listed packaged gross weight is 23 kg per set, carton volume is 0.26 cubic metres per set, and the indicative 20GP loading is 135 sets at 85 percent space utilization.

Upholstered Enclosed Swivel Lounge Tub Chair Specifications
