PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	24 kg per chair
Recommended user weight capacity	130 kg static seated load
Seat foam thickness	100 mm
Back and arm padding thickness	80 mm
Seat foam density	35 kg/m3
Back foam density	28 kg/m3
Foam rebound rating	35 percent
Textile abrasion acceptance value	50,000 Martindale cycles
Seam stitch pitch	8 stitches per 25 mm
Color options shown	5 colors

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

External upholstery	Woven fabric textile with tight sewn cover over the curved outer shell
Internal seat and back padding	High-resilience polyurethane foam wrapped in soft upholstery backing
Supporting inner shell	40 mm rigid timber-composite or molded board frame
Back split panels	Two independently upholstered padded panels separated by a vertical 24 mm gap
Integral base	Floor-resting upholstered plinth without exposed legs or casters
Sewn finish	Concealed or piped edge joining with uniform seam alignment around curved arms

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating mode	Single-person enclosed lounge seat with wraparound back and side support
Back design	Split high-back shell allows slight visual openness while retaining shoulder-height privacy
Mobility	Non-swivel, leg-free floor-standing chair intended to be repositioned manually
Grouping method	Freestanding chairs can be arranged in rows, clusters, or facing conversation groups

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Corporate and education lounge use	Suitable for breakout zones, waiting areas, libraries, and student commons where compact soft seating is needed
Color-zoned collaborative areas	Use the five visible colors to define clusters, age zones, or informal meeting points

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Seating strength and durability reference	EN 16139: non-domestic seating strength, durability, and safety requirements
Upholstered furniture flammability reference	EN 1021cigarette and EN 1021 match ignition tests

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Furniture structural test reference	GB/T 10357.2: backrest strength and fatigue test applicability
Furniture stability reference	GB/T 10357.7: seating stability test applicability
Upholstered furniture durability reference	GB/T 28202: general durability requirements for furniture in public buildings

Standardized tender description text

This product must meet the following technical requirements:
1. Furniture structural test reference: GB/T 10357.2: backrest strength and fatigue test applicability;
2. Furniture stability reference: GB/T 10357.7: seating stability test applicability;
3. Upholstered furniture durability reference: GB/T 28202: general durability requirements for furniture in public buildings;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LNS-TUB-820-SPLIT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LNS-TUB-820-SPLIT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LNS-TUB-820-SPLITOpen Export Tool

Quick Actions

Post an RFQ

Product Description

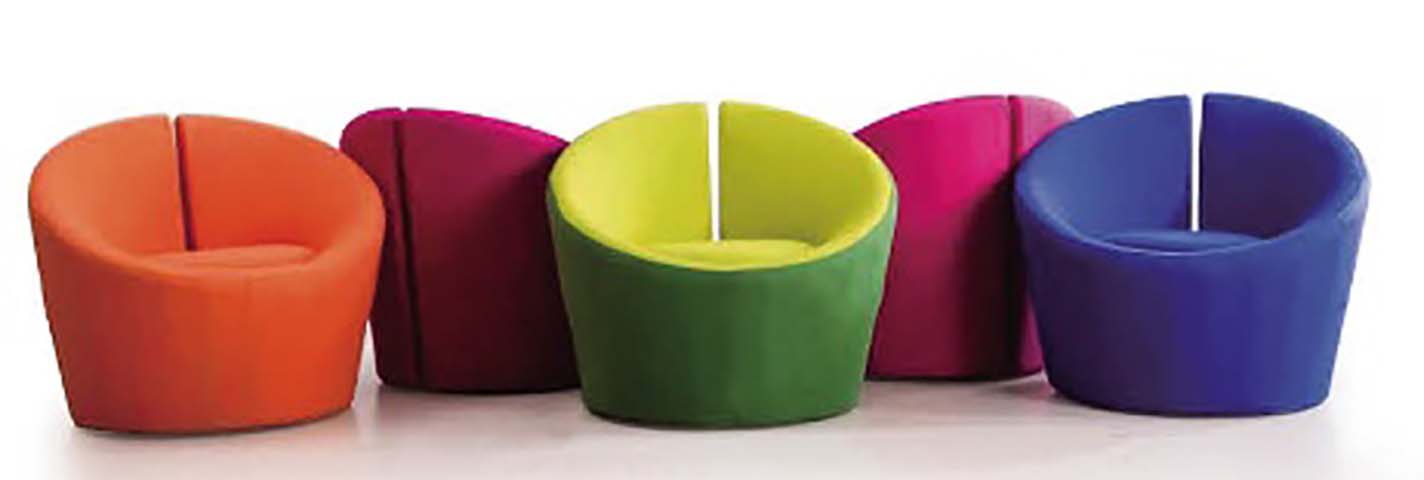

The Fully Upholstered Tub Lounge Chair with Split High Back is a single-person lounge seat designed with an enveloping tub form, continuous curved arms, and a wraparound back that creates a sheltered seating position. Its split high-back structure uses two independently upholstered padded panels separated by a vertical opening, giving the chair a lighter visual profile while preserving shoulder-height privacy and side support. The chair rests on an integral upholstered plinth rather than exposed legs or casters, producing a clean, grounded appearance suited to coordinated interiors. Upholstery is offered in fabric or woven textile options, with a tight sewn cover over the curved outer shell. Finishes use concealed or piped edge joining and aligned seams around the arms and frame. The finished seat cushion is 90 mm thick with 70 mm backrest padding, while the clear width between armrests is 540 mm. A 240 mm lumbar support zone is integrated into the back. Internally, the chair combines high-resilience polyurethane foam wrapped in soft upholstery backing with a 40 mm rigid timber-composite or molded board shell. The seating construction uses seat foam specified at 100 mm thickness and 35 kg/m3 density, with back and arm padding at 80 mm thickness and 28 kg/m3 back foam density. The foam rebound rating is 35 percent. Each chair weighs 24 kg, carries a recommended static seated load of 130 kg, and is intended for manual repositioning. It does not swivel. Freestanding placement allows individual use or organized arrangements in rows, clusters, and facing conversation groups. The model is appropriate for commercial and institutional lounge settings such as breakout zones, waiting areas, libraries, student commons, and other areas calling for compact soft seating. It can also serve residential living rooms, reading corners, or guest spaces where an enclosed lounge chair is preferred. Five visible colors support color-zoned layouts, helping define clusters, informal meeting points, or areas intended for different user groups. Procurement planners should note that the unbranded model LNS-TUB-820-SPLIT is delivered as one set in two cartons, with a reference assembly time of 40 minutes per set. Packaged reference details list carton dimensions of 850 by 420 by 720 mm, packaged gross weight of 23 kg per set, carton volume of 0.26 cubic meters per set, and indicative loading of 135 sets in a 20GP container at 85 percent space utilization. Selection should account for upholstery choice, color coordination, available floor area, intended layout density, and the need for staff or resident handling during placement.

Fully Upholstered Tub Lounge Chair with Split High Back Specifications
