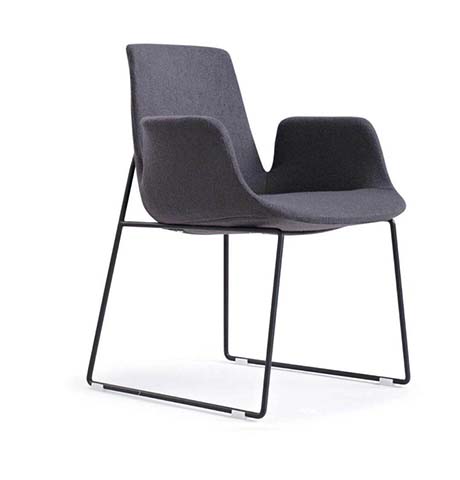

Dark Gray Fabric Upholstered Black Wire Sled Base Armchair (model SLED-ARM-DG-BLK-01) is listed under hotel guest room chair, with overall dimensions of 630 × 580 × 830 mm and main material of Imported Ash Solid Wood. Certifications: Minimalist,modern,style,fixed,cantilever,sled,base,integrated,molded,armrest,shell,stationary,non-swivel,seating. This page consolidates 6 groups of specifications, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 630 x 580 x 830 mm | |
|---|---|---|
| Seat height | 490 mm | |
| Seat width | 510 mm | |
| Seat depth | 480 mm | |
| Backrest height from seat | 400 mm | |
| Armrest height from floor | 680 mm | |
| Armrest height from seat | 190 mm | |
| Under-seat leg clearance height | 400 mm | |
| Sled base leg span width | 520 mm | |
| Sled base longitudinal depth | 550 mm | |
| Seat shell upholstery thickness | 10 mm | |
| Cushion foam thickness at seat center | 40 mm | |
| Steel wire frame rod diameter | 12 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended static weight capacity | 181 kg | |
|---|---|---|
| Net product weight | 14 kg | |
| Seat foam density | 45 kg/m3 | |
| Foam rebound rate | 45% | |
| Upholstery abrasion resistance | 50000 Martindale cycles | |
| Structural warranty | 7 years | |
| Fabric and foam component warranty | 5 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat-back-arm shell upholstery | Dark gray polyester woven fabric | |
|---|---|---|
| Internal padding | Molded polyurethane foam over S-sprung steel insert | |
| Support frame | Black powder-coated solid steel wire | |
| Floor contact glides | Injection-molded polyethylene | |
| Internal seat support | 1.5 mm thick stamped steel plate with zigzag springs | |
| Surface finish on frame | Matte black electrostatic powder coating |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Base design | Cantilever sled base with flex for subtle seated movement | |
|---|---|---|
| Floor protection | Non-marking plastic glides that slide without scratching hard floors | |
| Stacking capability | Non-stackable fixed profile | |
| Armrest integration | Continuous molded armrests blended into seat and back shell |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office reception areas | Upright guest chair form suitable for waiting rooms and reception zones | |
|---|---|---|
| Conference room seating | Standard table-height seat fits around standard conference tables |
