PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	760 W x 760 D x 820 H mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	11 kg
Recommended static load capacity	135 kg
Recommended user body weight	120 kg
Seat foam density	35 kg/m3
Back foam density	28 kg/m3
Foam rebound	40%
Fabric abrasion acceptance	30,000 Martindale cycles
Frame static acceptance load	220 kg
Color options shown	2 colors
Quantity per seating group	3 chairs

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstered seat and back	Woven fabric cover over shaped foam panels
Cushion support shell	Molded or board-supported inner seat deck
Structural frame	Painted steel wire or tubular steel continuous sled frame
Side and arm structure	Upholstered side panels connected to an integrated steel perimeter rail
Floor contact points	Four sled-frame feet with glide-ready ends
Surface finish	Smooth powder-coated paint finish on exposed metal

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating posture	Fixed relaxed lounge posture with a 105-degree back angle
Arm support	Integrated upholstered armrests on both sides at 640 mm floor height
Stability system	Four-point wire sled base with two continuous side rails
Floor protection	Rigid frame ends suitable for fitted polymer glides

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	800 x 780 x 560 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Common and lounge areas	Suitable for hotel lobbies, resort lounges and breakout spaces because its compact sled base groups around low tables
Interior seating zones	Intended for dry indoor use on hard floors or low-pile carpets; outdoor use requires marine-grade metal and weatherproof fabric

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture strength and stability	EN 16139
Upholstered furniture flammability	BS EN 1021and BS EN 1021

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Occasional lounge seating verification	ANSI/BIFMA X5.4
Sustainability declaration	ANSI/BIFMA E3

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Furniture mechanical safety	GB/T 10357.2 and GB/T 10357.3
Furniture formaldehyde control	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. Furniture mechanical safety: GB/T 10357.2 and GB/T 10357.3;
2. Furniture formaldehyde control: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LC-WIRE-FAB-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LC-WIRE-FAB-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LC-WIRE-FAB-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

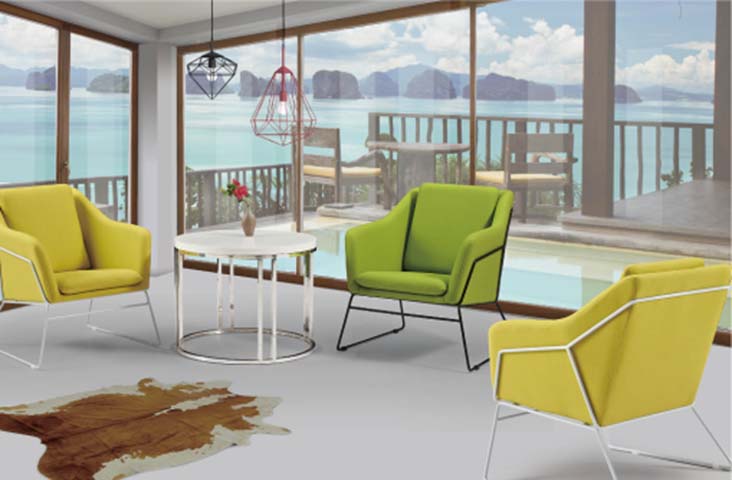

The Upholstered Metal-Wire Lounge Chair with Integrated Armrests presents a modern lounge silhouette with a compact footprint and an open sled-base profile. Its overall form measures 760 millimetres wide, 760 millimetres deep and 820 millimetres high, balancing soft fabric-upholstered seating with the linear appearance of painted steel wire. Woven fabric covers shaped foam seat and back panels, while upholstered side panels connect to an integrated steel perimeter rail that forms both side support and arm structure. The continuous frame creates a streamlined visual edge around the cushions and keeps the base open beneath the seat, supporting orderly placement in planned seating layouts. Construction centers on a painted steel wire or tubular steel continuous sled frame with a smooth powder-coated finish on exposed metal. The seat uses a molded or board-supported inner deck beneath a 90-millimetre finished cushion, while the backrest includes 70 millimetres of padding and a 240-millimetre lumbar support zone. Seat foam density is 35 kilograms per cubic metre and back foam density is 28 kilograms per cubic metre, with 40 percent foam rebound. The woven fabric is rated for 30,000 Martindale abrasion cycles, making it appropriate for general indoor seating applications where textile durability is a selection factor. Four sled-frame feet provide glide-ready ends suitable for fitted polymer glides. Functionally, the chair is set in a fixed relaxed lounge posture with a 105-degree back angle. Both armrests are integrated and upholstered, with arm support at 640 millimetres above the floor, and the clear width between armrests is 540 millimetres. The four-point wire sled base uses two continuous side rails for stability, and the rigid frame ends allow floor-protecting glides to be fitted according to the surface. The chair has a net weight of 11 kilograms, a recommended static load capacity of 135 kilograms and a recommended user body weight of 120 kilograms.
","The design suits hotel lobbies, resort lounges, breakout spaces and other common or lounge areas where chairs need to group around low tables. It is intended for dry indoor use on hard floors or low-pile carpets. For outdoor settings, the specified configuration would require marine-grade metal and weatherproof fabric, so indoor placement is the standard application. It can also work in residential living rooms, studies or guest spaces that call for lounge-style seating with a clean commercial aesthetic. Procurement teams should note that this is an unbranded model, LC-WIRE-FAB-01, supplied as one set across two cartons. Reference packaged gross weight is 23 kilograms per set and reference assembly time is 40 minutes per set. Planning should include glide selection for the target floor type, fabric coordination with the interior palette, and confirmation that the dry indoor-use specification matches the intended environment.

Upholstered Metal-Wire Lounge Chair with Integrated Armrests Specifications
