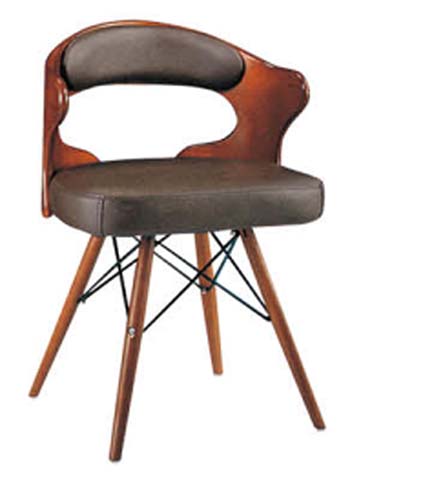

Mid-Century Modern Upholstered Dining Chair with Open Cutout Back and Cross-Braced Wood Legs (model DC-MCM-WAL-GRY-001) is listed under hotel guest room chair, with overall dimensions of 540 × 580 × 810 mm and main material of Imported Ash Solid Wood. Load capacity: 136 kg. Certifications: modern,style,armless,fixed,seating,walnut,wood,finish,padded,upholstery. This page consolidates 6 groups of specifications and GB / EN standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 540 x 580 x 810 mm | |
|---|---|---|
| Seat height | 470 mm | |
| Seat depth | 460 mm | |
| Seat width | 500 mm | |
| Backrest total height | 410 mm | |
| Seat cushion thickness | 50 mm | |
| Back cushion thickness | 35 mm | |
| Wood leg diameter at floor | 26 mm | |
| Metal cross brace wire diameter | 4 mm | |
| Central open back cutout height | 180 mm | |
| Leg splay angle from vertical | 18 degrees | |
| Floor glide diameter | 20 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Assembled weight per chair | 7 kg | |
|---|---|---|
| Maximum static load capacity | 136 kg | |
| Seat foam density | 24 kg/m³ | |
| Foam rebound rate | 45% | |
| Upholstery abrasion resistance | 30000 double rubs | |
| Recommended daily use cycle rating | 10 years | |
| Floor protection static load rating per glide | 40 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Frame and legs | Solid rubberwood with walnut finish, tapered splayed profile | |
|---|---|---|
| Seat and back cushion fill | High-density polyurethane foam | |
| Upholstery fabric | Dark grey polyester blend fabric, matte textured surface | |
| Structural bracing | Black powder-coated steel wire crisscross cross-brace | |
| Sewn upholstery seams | Reinforced polyester stitching, 8 stitches per inch seam pitch | |
| Floor contact points | Polyethylene anti-slip protective glides affixed to leg bases |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Fixed armless static seating with no height adjustment, swivel, or recline | |
|---|---|---|
| Structural stability | Crisscross steel wire bracing distributes load and prevents leg racking during use | |
| Back support design | Curved wood frame with central open cutout provides lumbar support with airflow | |
| Floor compatibility | Non-marring glides suitable for hard wood, tile, and vinyl flooring without damage |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential dining rooms | Pairs with standard 760 mm height dining tables for everyday meal seating | |
|---|---|---|
| Cafe and bistro seating | Light commercial grade construction suitable for casual restaurant and coffee shop use |
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture strength, durability and safety for domestic seating applicable for performance validation | |
|---|---|---|
| EN 1022:2018 | Domestic furniture seating determination of stability required for tip-resistance checks |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for frame strength and finish testing | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials limit of harmful substances for wood furniture | |
| GB/T 19833-2005 | Furniture chairs and stools strength and durability test methods for seating validation |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for frame strength and finish testing; 2. GB 18584-2001: Indoor decorating and refurbishing materials limit of harmful substances for wood furniture; 3. GB/T 19833-2005: Furniture chairs and stools strength and durability test methods for seating validation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
