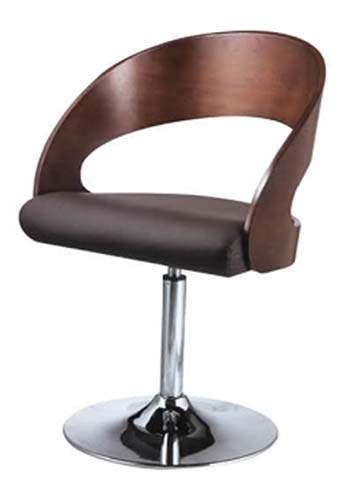

Swivel Lounge Chair with Curved Open Wrap Back and Chrome Round Pedestal Base (model SWL-CHR-001) is listed under hotel guest room chair, with overall dimensions of 720 × 830 × 810 mm and main material of Imported Ash Solid Wood. Load capacity: 150 kg. Certifications: contemporary,style,stationary,swivel,structure,pedestal,base,open,wrap,back. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 720 x 830 x 810 mm | |
|---|---|---|
| Seat width | 560 mm | |
| Seat depth | 480 mm | |
| Seat height (fixed lounge position) | 457 mm | |
| Backrest height | 380 mm | |
| Integrated armrest height | 648 mm | |
| Horizontal back cutout width | 460 mm | |
| Round base diameter | 600 mm | |
| Gas lift column diameter | 50 mm | |
| Seat cushion thickness | 80 mm | |
| Back shell thickness | 12 mm | |
| Base plate thickness | 8 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net product weight | 16 kg | |
|---|---|---|
| Recommended static load capacity | 150 kg | |
| Swivel rotation range | 360 degrees | |
| Seat foam density | 45 kg/m³ | |
| Foam rebound rate | 55% | |
| Seam stitch pitch | 8 mm | |
| Upholstery abrasion resistance | 50000 Martindale cycles | |
| Gas lift cycle rating | 120000 cycles | |
| Limited warranty period | 1 year | |
| Available color variants | 9 |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Back shell | Curved bentwood plywood with walnut-tone veneer finish | |
|---|---|---|
| Seat upholstery | Dark brown polyurethane faux leather over foam padding | |
| Seat internal support | 1.2mm thick steel frame with S-shaped sinuous springs | |
| Seat cushion padding | Injected high-density polyurethane foam | |
| Central column and base | Polished chrome-plated solid steel round plate and lift tube | |
| Swivel mechanism | Steel bearing swivel joint with friction rotation control |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Swivel operation | 360-degree full rotation around central vertical axis via sealed bearing joint | |
|---|---|---|
| Height adjustment | Pneumatic gas lift height adjustment via under-seat activation lever | |
| Back support | Integrated curved wrap-around back with open lumbar cutout and built-in armrests | |
| Floor protection | Non-marring felt pad under chrome base plate to prevent hard floor scratches |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential lounge use | Suitable for living room accent seating next to sofas or reading nooks | |
|---|---|---|
| Commercial reception use | Appropriate for office lobbies, hotel waiting areas and guest lounge zones |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
