PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	680 x 650 x 820 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Suggested user weight capacity	135 kg
Net weight	13.5 kg
Seat foam density	35 kg/m3
Back foam density	28 kg/m3
Foam rebound	42%
Gas-lift cycles	100000 cycles
Swivel rotation	360 degrees
Base static-load test target	270 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer bucket shell	Molded structural shell with 18 mm upholstered profile and continuous integrated armrests
Seat cushion	80 mm polyurethane foam pad over a supporting board, upholstered in black facing material
Back and arm upholstery	Black smooth upholstery with tight sewn contours around the curved tub form
Gas lift and column	50 mm chrome-finished telescoping steel cylinder with black upper mounting collar
Pedestal base	Round polished steel disc base, 520 mm diameter, with central tapered steel hub
Seat underside hardware	Black steel mounting plate and paddle-style gas-release lever connected to the swivel hub

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Paddle lever under the seat releases the 50 mm gas lift through a 100 mm stroke, setting seat height to 470 mm
Swivel movement	Central bearing allows 360-degree rotation on the stationary polished disc base
Integrated arm and back support	One continuous bucket shell wraps around the back and both sides, providing 210 mm arm support above the seat
Fixed-floor pedestal use	The wide circular base rests on the floor without casters, favoring stable reception and lounge seating

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Reception and visitor areas	Suitable for lobby, guest and waiting settings where the black bucket form and swivel base support short-to-medium visits
Lounge and collaborative spaces	Useful at hotel lounges, breakout zones and casual meeting corners requiring mobility through 360-degree swivel rather than casters

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TUB-SWIVEL-DISC-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TUB-SWIVEL-DISC-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TUB-SWIVEL-DISC-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

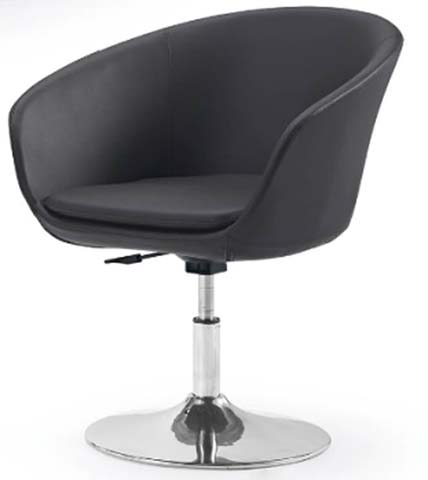

The Swivel Tub Lounge Chair with Height Adjustment and Polished Disc Base, model TUB-SWIVEL-DISC-BLK-01, presents a compact black bucket form with a wraparound back and continuous integrated armrests. Its smooth, tight-sewn upholstery follows the curved tub profile, while the padded seat and back create a soft visual contrast with the bright chrome column and polished round pedestal. The chair measures 680 by 650 by 820 millimetres, with 540 millimetres of clear width between the armrests. The stationary disc base is 520 millimetres in diameter and uses a central tapered steel hub, giving the piece a clean circular footprint suited to open seating layouts. Construction centres on a molded structural outer shell with an 18 millimetre upholstered profile. The seat combines an 80 millimetre polyurethane foam pad over a supporting board, with a finished cushion thickness of 90 millimetres. Seat foam density is 35 kilograms per cubic metre, while the back uses 28 kilogram per cubic metre foam and 70 millimetres of backrest padding. The upholstered assembly also includes a 240 millimetre lumbar support zone and arm support rising 210 millimetres above the seat. Beneath the seat, a black steel mounting plate connects to the swivel hub. Height is controlled by a paddle-style lever operating a 50 millimetre chrome-finished telescoping steel gas lift with a black upper mounting collar; the 100 millimetre stroke sets seat height to 470 millimetres. The gas lift is rated for 100,000 cycles, and the central bearing supports 360-degree rotation. The polished steel disc remains fixed to the floor without casters, balancing ease of turning with a stable pedestal stance. Suggested user weight capacity is 135 kilograms, net weight is 13.5 kilograms, and foam rebound is 42 percent. This unbranded lounge chair is appropriate for reception, lobby, guest and waiting areas, as well as hotel lounges, breakout zones and casual meeting corners. Its swivel function supports easy conversation and repositioning in short-to-medium visits without the visual complexity of a wheeled base. The black finish and integrated armrests make it suitable for settings where a neat, coordinated tub-chair appearance is preferred. For procurement, each set ships in two cartons, with reference packaged gross weight of 23 kilograms and carton volume of 0.26 cubic metre. Reference carton dimensions are 850 by 420 by 720 millimetres, assembly time is 40 minutes per set, and indicative loading is 135 sets in a 20-foot general-purpose container at 85 percent space utilization. Buyers should plan for floor placement, basic assembly, and seating applications aligned with the fixed pedestal and swivel-lounge design.

Swivel Tub Lounge Chair with Height Adjustment and Polished Disc Base Specifications
