PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	560 x 560 x 780 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended static load capacity	130 kg
Recommended user weight	110 kg
Seat foam density	35 kg/m3
Back foam density	30 kg/m3
Fabric abrasion acceptance	30,000 Martindale cycles
Joint cyclic test target	100,000 cycles
Net weight reference	7.8 kg
Color options	1 visible colorway
Warranty target	36 months
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Frame	Solid natural-finish hardwood members with visible grain and square tapered legs
Seat upholstery	Black woven or leather-look facing over padded cushion
Back upholstery	Soft black padded panel with rounded corners mounted between side posts
Seat support board	12 mm hardwood plywood or bentwood panel beneath the cushion
Back support panel	9 mm bent plywood or hardwood board behind the back pad
Armrest structure	Integrated continuous hardwood side members connecting front and rear posts

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating function	Fixed-height cushioned seat at 450 mm for dining, meeting, and visitor use
Back support	Slightly enveloping padded back panel held between wooden side supports
Arm support	Continuous wooden side rails form integrated armrests and back supports
Mobility	Four stationary legs with floor glides, no casters or swivel mechanism

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary application	Dining rooms, cafes, staff restaurants, and meeting areas requiring a 450 mm chair height
Target users	Commercial buyers and residential users seeking padded comfort with a natural wood frame

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · NDC-WA01-BK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · NDC-WA01-BK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · NDC-WA01-BKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

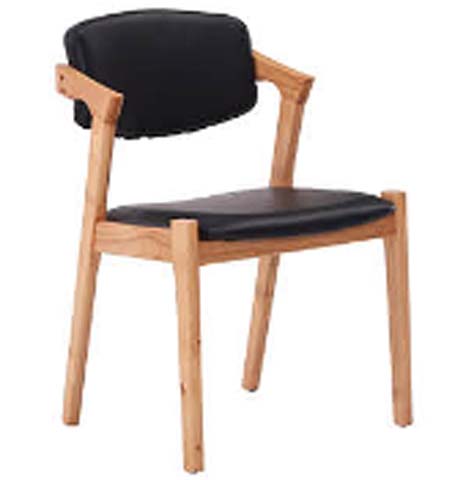

The Wood-Framed Upholstered Dining Armchair, model NDC-WA01-BK, combines a natural-finish hardwood frame with black cushioned seating for a calm, structured appearance. Its four square tapered legs support continuous hardwood side members that run from the front to the rear posts, forming integrated armrests and side supports for the backrest. The back is a soft black padded panel with rounded corners, mounted between the wooden posts, while the black seat cushion provides a contrasting upholstered surface. The overall silhouette is upright and tailored, with visible wood grain adding warmth to the black seat and back. Overall dimensions are 560 by 560 by 780 millimeters, with a 540-millimeter clear width between the armrests and a fixed dining seat height of 450 millimeters. Construction uses solid hardwood members with a natural finish, joined to a four-leg stationary base fitted with floor glides. Beneath the seat is a 12-millimeter hardwood plywood or bentwood support board, and the back pad is supported by a 9-millimeter bent plywood or hardwood panel. The seat facing is available in black woven or leather-look upholstery over padding. Cushioning includes a 90-millimeter-thick finished seat cushion with 35 kilogram per cubic meter foam and a 70-millimeter padded backrest using 30 kilogram per cubic meter foam. A 240-millimeter lumbar support zone contributes to the chair's upright dining posture. The recommended static load capacity is 130 kilograms, with a recommended user weight of 110 kilograms. Fabric abrasion acceptance is 30,000 Martindale cycles, and the joint cyclic test target is 100,000 cycles. The fixed-height chair is intended for dining, meeting, and visitor seating rather than mobile or swivel applications. Its natural wood and black upholstery suit dining rooms, cafes, staff restaurants, and meeting areas where a comfortable, classic upholstered chair is required. It is appropriate for commercial buyers and residential users seeking padded support with a refined wood frame. Procurement planning should account for unbranded supply, one chair being delivered as one set across two cartons, and a reference assembly time of 40 minutes per set. Packaged gross weight is 23 kilograms per set, with reference carton dimensions of 850 by 420 by 720 millimeters and carton volume of 0.26 cubic meter per set. For bulk container planning, the indicative loading figure is 135 sets in a 20GP container at 85 percent space utilization. Buyers should also confirm the preferred black upholstery facing, available finishes, site-specific floor protection, and assembly resources before ordering.

Wood-Framed Upholstered Dining Armchair Specifications
