PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	860 x 820 x 1040 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	24 kg
Recommended user weight	140 kg
Static seat load	350 kg
Backrest cyclic test	100000 cycles
Swivel rotation cycles	50000 cycles
Seating capacity	1 person
Fabric abrasion acceptance	30000 Martindale cycles
Foam rebound	38 percent
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Woven polyester fabric cover over a curved one-piece back and tub seat
Seat padding	120 mm high-resilience polyurethane foam with density 35 kg/m3
Back padding	100 mm polyurethane foam with density 30 kg/m3
Internal frame	25 mm tubular steel frame with 12 mm bent hardwood or plywood support panels
Swivel base	Polished chrome-plated steel circular plate with concealed ball-bearing mechanism
Floor protection	Black non-marking trim or felt glide ring around the lower perimeter

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

360-degree swivel	The chair rotates on a concealed circular bearing with no lock, allowing conversation-oriented seating
Integrated arm and back support	The raised side bolsters merge into a winged high back, giving arm support and partial shoulder enclosure
Relaxed lounge posture	The seat and back form a 105-degree reclined position with 420 mm seat height for casual waiting areas
Fixed low-base design	The chair has no casters or tilt mechanism and is intended to swivel in place

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Lounge and waiting areas	Suitable for hotel lobbies, office breakout zones and reception lounges where the high back provides semi-enclosed seating
Color-coordinated collaboration settings	Use multiple fabric colors around a low side table for informal meetings or guest conversation

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LC-SHB-860

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LC-SHB-860

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LC-SHB-860Open Export Tool

Quick Actions

Post an RFQ

Product Description

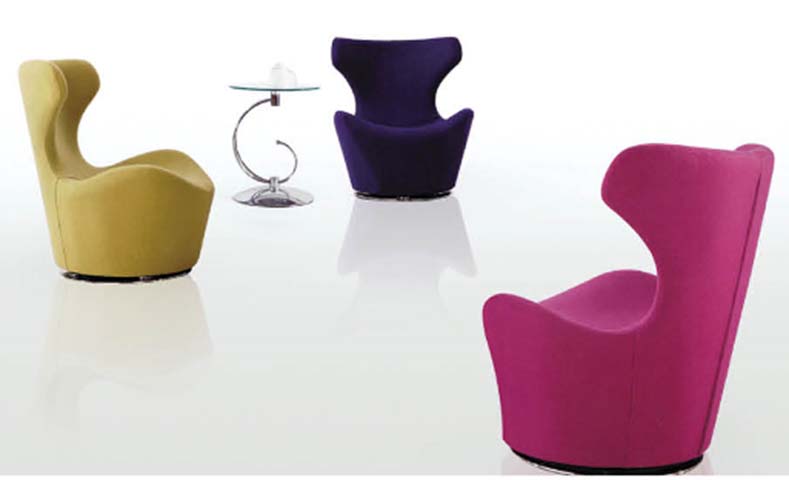

The Upholstered Swivel Lounge Armchair with Sculpted High Back, model LC-SHB-860, is an unbranded lounge chair designed for relaxed, conversation-oriented seating. Its visual character comes from a curved one-piece back and tub seat shaped into a sculpted high-back shell. Raised side bolsters flow into integrated armrests and a winged back, creating partial shoulder enclosure while preserving an open, modern lounge profile. A polished chrome circular swivel base provides a reflective contrast with the woven polyester fabric upholstery. Overall dimensions are 860 by 820 by 1040 millimeters, with a 420-millimeter seat height and 540 millimeters of clear width between the armrests. The seat is padded with 120 millimeters of high-resilience polyurethane foam at 35 kilograms per cubic meter, while the back uses 100 millimeters of polyurethane foam at 30 kilograms per cubic meter. Product specifications also list a finished seat cushion thickness of 90 millimeters, backrest padding thickness of 70 millimeters, and a 240-millimeter lumbar support zone. Inside, a 25-millimeter tubular steel frame is combined with 12-millimeter bent hardwood or plywood support panels. The circular chrome-plated steel base houses a concealed ball-bearing swivel mechanism, and black non-marking trim or a felt glide ring protects the floor around the lower perimeter. The chair is built for one occupant and rotates 360 degrees without a lock, making it easy to turn toward people or surrounding activity. It has no casters or tilt mechanism, so movement is limited to swiveling in place. The fixed seat and back form a 105-degree reclined posture suited to informal waiting and lounge use. The integrated arm and back structure offers upper-body support and a semi-enclosed feel without a fully private enclosure. This model is appropriate for hotel lobbies, reception lounges, office breakout zones, and other waiting or social seating areas. Multiple chairs in coordinated fabric colors can be arranged around a low side table for informal meetings or guest conversation. Its high-back form is particularly useful where a degree of visual separation is desired within an open interior. Procurement planning should account for fabric upholstery, a polished chrome base, and the stated weight and durability figures, including a recommended user weight of 140 kilograms, static seat load of 350 kilograms, 100,000 backrest cycles, 50,000 swivel cycles, and fabric abrasion acceptance of 30,000 Martindale cycles. Each set is supplied in two cartons, with a reference assembly time of 40 minutes, packaged gross weight of 23 kilograms, and carton volume of 0.26 cubic meter. The indicative loading quantity is 135 sets in a 20GP container at 85 percent space utilization.
