PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	680 x 780 x 820 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	14 kg
Rated static load	160 kg
Recommended user height	185 cm
Seating capacity	1 person
Foam density	30 kg/m3
Foam rebound	40%
Fabric abrasion acceptance	30,000 Martindale cycles
Frame joint cyclic acceptance	100,000 cycles
Color options shown	2 colors
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Load-bearing frame	Solid rubberwood frame with exposed square posts, continuous arm rails and lower side rails
Back structure	Upholstered high-back panel wrapped in woven fabric and supported by the angled rear frame
Seat cushion	Removable fabric-covered cushion with 140 mm foam core over flexible webbing support
Back cushion and pillow	Fabric-covered foam back cushion with matching rectangular lumbar pillow
Upholstery textile	Woven polyester-look fabric in navy or beige with visible soft matte texture
Frame finish	Clear natural lacquer or equivalent protective wood finish showing a warm honey tone

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed relaxed posture	The rear frame holds the back cushion at a 108-degree fixed recline for lounge seating
Removable cushion system	Seat and back cushions sit within the wooden frame and can be lifted for fabric maintenance or replacement
Integrated arm support	Two continuous wooden rails form fixed armrests and connect the front and rear frame members
Low-maintenance open base	Four exposed timber legs provide 260 mm floor clearance and allow robotic or manual cleaning underneath

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Lounge and reception use	Suitable for hotel lobbies, club rooms, office reception zones and waiting areas where single-seat relaxed seating is required
Residential living spaces	Suitable for living rooms, studies and reading corners paired with a side table or sofa group

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.4

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LCH-FRAME-680W

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LCH-FRAME-680W

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LCH-FRAME-680WOpen Export Tool

Quick Actions

Post an RFQ

Product Description

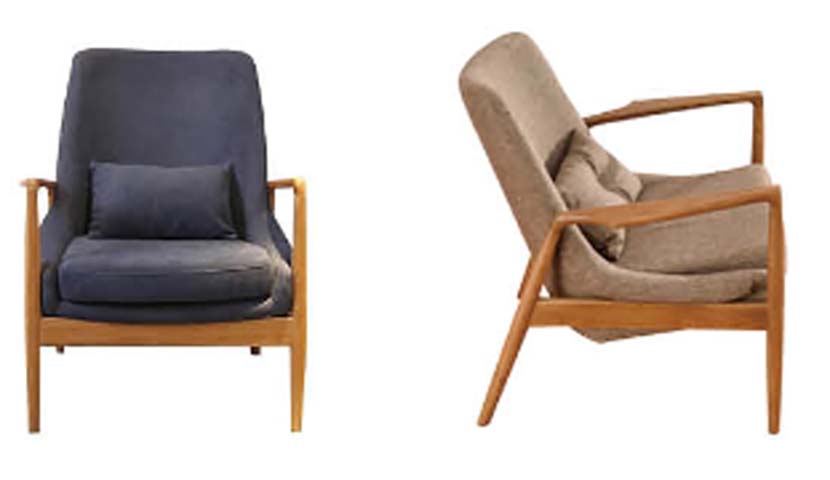

The Mid-Century Upholstered Wooden Lounge Armchair, model LCH-FRAME-680W, is an unbranded one-person lounge chair with a clean, exposed timber structure and a relaxed high-back silhouette. Its solid rubberwood frame features square posts, continuous arm rails, and lower side rails, giving the chair an open, architectural profile. A clear natural lacquer or equivalent protective finish highlights the warm honey tone of the wood, while the woven upholstery is offered in navy or beige with a soft matte appearance. Overall dimensions are 680 by 780 by 820 millimeters, with a 540-millimeter clear width between the fixed armrests. The angled rear frame supports an upholstered high-back panel, and the separate seat cushion, back cushion, and matching rectangular lumbar pillow sit neatly within the wooden frame. Construction combines the solid rubberwood load-bearing frame with flexible webbing beneath the seat, fabric upholstery, and foam-filled removable cushions. The finished seat cushion is 90 millimeters thick and includes a 140-millimeter foam core, while backrest padding is 70 millimeters thick. The lumbar support zone is 240 millimeters high. Foam density is 30 kilograms per cubic meter with 40 percent rebound, and the woven polyester-look fabric is accepted to 30,000 Martindale abrasion cycles. The chair weighs 14 kilograms net and is rated for a 160-kilogram static load, with a recommended user height of 185 centimeters. Designed for fixed relaxed seating, the rear frame positions the back cushion at a 108-degree recline. The two continuous wooden rails form integrated armrests while connecting the front and rear frame members. Seat and back cushions can be lifted away for fabric maintenance or replacement. Four exposed timber legs create a low-maintenance open base with 260 millimeters of floor clearance, allowing manual or robotic cleaning beneath the chair. This armchair is suited to hotel lobbies, club rooms, office reception zones, and waiting areas that call for single-seat relaxed seating. It also works in residential living rooms, studies, and reading corners, either paired with a side table or arranged with a sofa group. Procurement planning should account for one chair supplied in two cartons, with packaged gross weight of 23 kilograms and carton dimensions of 850 by 420 by 720 millimeters. Reference carton volume is 0.26 cubic meter per set, reference assembly time is 40 minutes per set, and an indicative 20-foot general-purpose container loads 135 sets at 85 percent space utilization.
