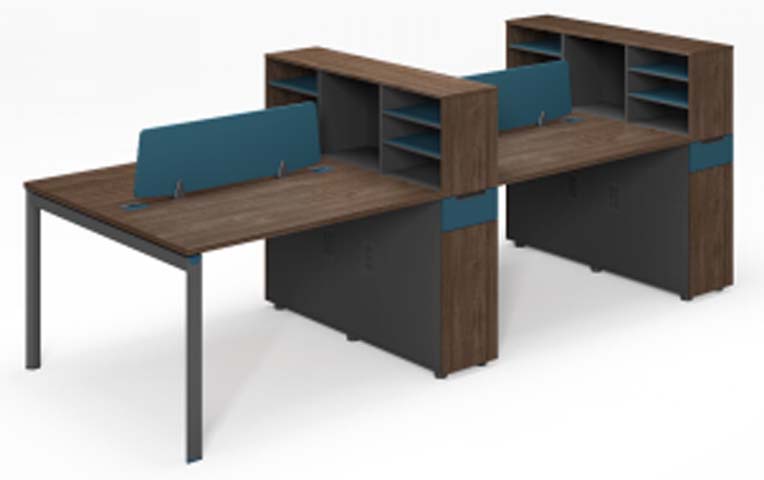

Product supplierFour-Person Modular Workstation with Central Storage Divider and Privacy Screens, 25 mm wood-grain melamine-faced particleboard with sealed impact edges
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 4 users | |
|---|---|---|
| Work surface distributed load | 100 kg per seat | |
| Central shelf load per level | 15 kg | |
| Total workstation net weight | 165 kg | |
| Drawer or cabinet static load per station | 30 kg | |
| Privacy screen impact resistance | 10 kg lateral edge load | |
| Leveling adjustment | 10 mm | |
| Recommended floor area per layout | 3.92 m2 | |
| Service life target | 8 years | |
| Top Static Load Reference | 150 kg uniformly distributed |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surfaces | 25 mm wood-grain melamine-faced particleboard with sealed impact edges | |
|---|---|---|
| Storage cabinet panels | 18 mm melamine-faced board in walnut-brown and charcoal finishes | |
| Privacy screens | 25 mm composite tack board wrapped in blue woven fabric | |
| Exposed legs | 40 x 40 mm charcoal powder-coated square steel tube | |
| Under-desk modesty panels | 18 mm charcoal melamine-faced panel with flush fixing | |
| Hardware and glides | Powder-coated steel connectors, cam fittings and nylon leveling glides |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Four-position benching layout | Two face-to-face double benches provide four independent 1200 mm seated work zones | |
|---|---|---|
| Integrated cable routing | An 80 mm grommet at each desk allows monitor and power cables to pass below the work surface | |
| Central open storage | Each divider bay provides three open levels for binders and personal items, with no visible door | |
| Visual privacy separation | A 350 mm blue upright screen blocks direct sightline between facing users while preserving open-office visibility |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total gross weight | 180 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office cluster | Suitable for four staff in call centers, administration zones and shared project areas because it combines seating, screening and storage in one footprint | |
|---|---|---|
| Compact departmental workspace | Recommended where team communication is needed but individual monitor privacy and under-desk modesty are required |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture strength and durability | EN 15372:2016 | |
|---|---|---|
| Office workstation dimensions | EN 527:2011 | |
| Formaldehyde panel emission | EN 13986:2004+A1:2015 E1 | |
| Upholstered panel ignitability | EN 1021:2014 and EN 1021:2014 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Desk durability acceptance | ANSI/BIFMA X2021 | |
|---|---|---|
| Lounge and divider low-panel review | ANSI/BIFMA X2022 | |
| Low-emission furniture materials | ANSI/BIFMA e2023Furniture Sustainability Standard |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Wood-based panel formaldehyde recommendation | GB/T 39600E1 emission class | |
|---|---|---|
| Office furniture structural safety recommendation | GB/T 3324dimensional stability, edge and strength checks | |
| Office desk mechanical safety recommendation | GB/T 3326desk dimensional and clearance assessment |
Standardized tender description text
This product must meet the following technical requirements: 1. Wood-based panel formaldehyde recommendation: GB/T 39600E1 emission class; 2. Office furniture structural safety recommendation: GB/T 3324dimensional stability, edge and strength checks; 3. Office desk mechanical safety recommendation: GB/T 3326desk dimensional and clearance assessment; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
