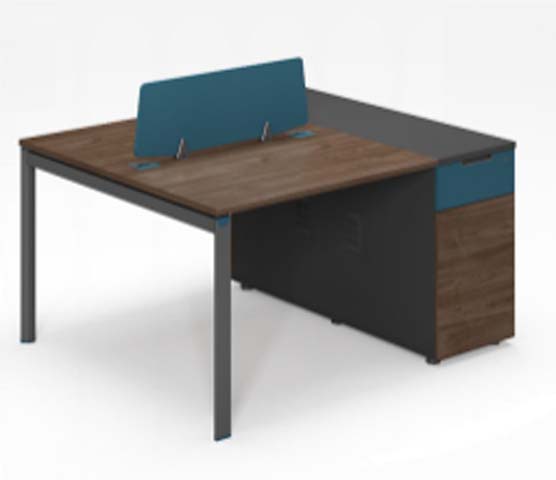

Product supplierTwo-Person Panel Leg Workstation with Screen Divider, 25 mm wood-based board with melamine decorative surface and 2 mm impact-resistant edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 78 kg | |
|---|---|---|
| Distributed desktop load | 80 kg per side | |
| Central screen lateral load | 15 kg | |
| Seating capacity | 2 users | |
| Steel frame static verification target | 200 kg | |
| Drawer or movable pedestal load | Not applicable | |
| Leveling glide floor contact | 4 contact points | |
| Recommended service life | 8 years | |
| Colorway count | 3 visible finishes | |
| Top Static Load Reference | 150 kg uniformly distributed |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate and surface | 25 mm wood-based board with melamine decorative surface and 2 mm impact-resistant edge banding | |
|---|---|---|
| Support legs | 50 x 50 mm powder-coated square steel tube with leveling glides | |
| Side and modesty panels | 1.2 mm powder-coated steel sheet in charcoal gray | |
| Central divider | Fabric-faced acoustic panel over a rigid composite core with framed edge | |
| Screen supports | Brushed or satin metal stand-off brackets fixed to the desktop | |
| Cable hardware | Steel or hard-plastic round grommets with removable cover plates |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Two-direction seating layout | Users sit on opposite sides of the central screen while sharing one rectangular work surface | |
|---|---|---|
| Visual privacy screen | 350 mm high central divider blocks direct sightline across the desktop without enclosing the seat | |
| Cable routing | Two 80 mm grommet positions allow monitor and power cables to pass from the desktop into the under-top zone | |
| Floor leveling | Adjustable glides provide 10 mm vertical compensation and keep the steel base stable on uneven floors |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Provides two independent work positions with a low central screen for team zones where sightline separation and communication are both required | |
|---|---|---|
| Call center or administrative cluster | Can be arranged in rows or pods because the rectangular metal base and cable ports support repeated monitor-based workstations |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1 applicability | EN 527office desks safety, strength and durability requirements | |
|---|---|---|
| EN 527-2 applicability | EN 527 mechanical test methods for office desks | |
| EN 13986 applicability | EN 13986 wood-based panels for construction is a reference only; office panel grade should follow the desk standard and supplier specification |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5 applicability | ANSI/BIFMA X5.5 desk products performance standard |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324 applicability | GB/T 3324 wooden furniture general technical requirements | |
|---|---|---|
| GB/T 3325 applicability | GB/T 3325 metal furniture general technical requirements | |
| GB/T 10357.5 applicability | GB/T 10357.5 furniture mechanical surface test for coating performance | |
| GB 18580 applicability | GB 18580 formaldehyde emission control for wood-based panels |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324 applicability: GB/T 3324 wooden furniture general technical requirements; 2. GB/T 3325 applicability: GB/T 3325 metal furniture general technical requirements; 3. GB/T 10357.5 applicability: GB/T 10357.5 furniture mechanical surface test for coating performance; 4. GB 18580 applicability: GB 18580 formaldehyde emission control for wood-based panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
