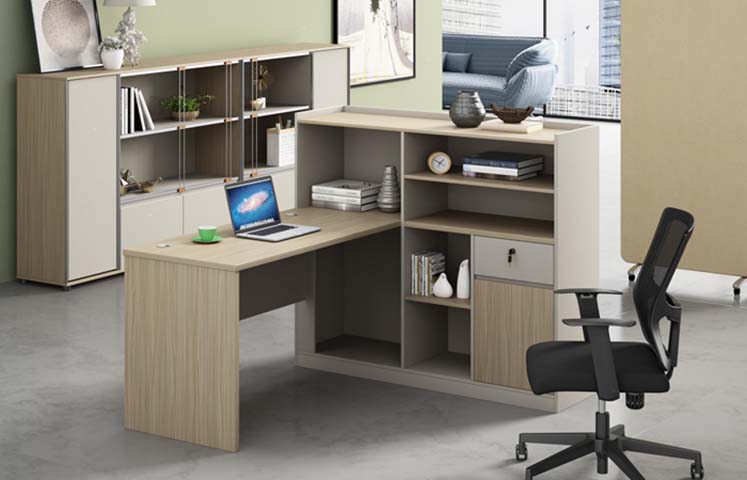

L-Shaped Executive Workstation with Integrated Hutch Storage and Black Mesh Task Chair (model LDS-1800-HUTCH-01) is listed under Open Workstation. Dimensions: 1800 × 1600 × 1450 mm. Materials: 25 mm and 18 mm melamine-faced particleboard with light oak woodgrain horizontal surfaces. Load capacity: 80 kg. Product Features: modern,style,L-shaped,workstation,integrated,hutch,storage,swivel,task,chair,light,oak,and,off-white,finish. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | LDS-1800-HUTCH-01 |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Workstation static top load | 80 kg | Single open shelf load | 15 kg |
| Drawer load capacity | 12 kg | Lower cabinet shelf load | 20 kg |
| Workstation net weight | 105 kg | Task chair recommended user weight | 120 kg |
| Chair gas-lift vertical stroke | 100 mm | Seating capacity | 1 person |
| Suggested warranty | 3 years | Top Static Load Reference | 150 kg uniformly distributed |
| Desktop and shelf panels | 25 mm and 18 mm melamine-faced particleboard with light oak woodgrain horizontal surfaces | Vertical cabinet panels | 18 mm melamine-faced particleboard in off-white and warm grey finishes |
| Edge protection | 2 mm PVC edge banding on exposed worktop edges and 0.8 mm PVC on cabinet edges | Cabinet hardware | Silver metal shelf supports, drawer slide rails, hinges, and one black cylinder lock |
| Hutch frame posts | Brushed silver metal vertical posts with cylindrical connector collars | Task chair upholstery and support | Black breathable mesh back, padded fabric or polyurethane seat, black nylon frame, and steel five-star base |
| L-shaped work layout | The 1800 mm main desk and 900 mm return create separate computing, writing, and reference zones without blocking the knee bay. | Integrated open storage | Six visible shelf compartments provide book and file storage above and beside the work surface for immediate access. |
| Lockable drawer and cabinet | The right lower unit combines a lockable shallow drawer with a door below for secure personal or departmental storage. | Task chair movement and adjustment | The chair swivels 360 degrees, rolls on five casters, and uses a 100 mm gas-lift height adjustment for desk alignment. |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Reference Packaging Volume | 1 m³/set | Private office | Suitable for managers and professional staff requiring an L-shaped work surface, secure storage, and visitor-facing desk presentation. |
| Administrative workstation | Fits administrative, accounting, or consulting roles that need laptop space, document shelves, and close-at-hand filing. | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Workstation static top load | 80 kg | |
|---|---|---|
| Single open shelf load | 15 kg | |
| Drawer load capacity | 12 kg | |
| Lower cabinet shelf load | 20 kg | |
| Workstation net weight | 105 kg | |
| Task chair recommended user weight | 120 kg | |
| Chair gas-lift vertical stroke | 100 mm | |
| Seating capacity | 1 person | |
| Suggested warranty | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop and shelf panels | 25 mm and 18 mm melamine-faced particleboard with light oak woodgrain horizontal surfaces | |
|---|---|---|
| Vertical cabinet panels | 18 mm melamine-faced particleboard in off-white and warm grey finishes | |
| Edge protection | 2 mm PVC edge banding on exposed worktop edges and 0.8 mm PVC on cabinet edges | |
| Cabinet hardware | Silver metal shelf supports, drawer slide rails, hinges, and one black cylinder lock | |
| Hutch frame posts | Brushed silver metal vertical posts with cylindrical connector collars | |
| Task chair upholstery and support | Black breathable mesh back, padded fabric or polyurethane seat, black nylon frame, and steel five-star base |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| L-shaped work layout | The 1800 mm main desk and 900 mm return create separate computing, writing, and reference zones without blocking the knee bay. | |
|---|---|---|
| Integrated open storage | Six visible shelf compartments provide book and file storage above and beside the work surface for immediate access. | |
| Lockable drawer and cabinet | The right lower unit combines a lockable shallow drawer with a door below for secure personal or departmental storage. | |
| Task chair movement and adjustment | The chair swivels 360 degrees, rolls on five casters, and uses a 100 mm gas-lift height adjustment for desk alignment. |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private office | Suitable for managers and professional staff requiring an L-shaped work surface, secure storage, and visitor-facing desk presentation. | |
|---|---|---|
| Administrative workstation | Fits administrative, accounting, or consulting roles that need laptop space, document shelves, and close-at-hand filing. |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
