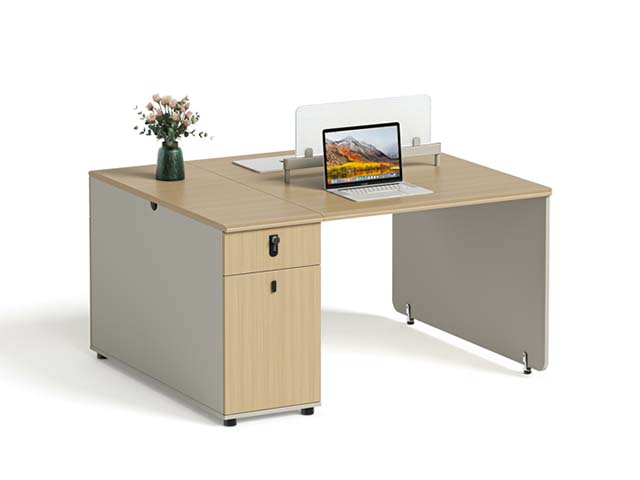

Two-Person Panel-End Office Workstation with Left Storage Pedestal and Center Divider (model WS-2P-OAK-GRY-1800) is listed under Open Workstation. Dimensions: 1800 × 1400 × 1100 mm. Materials: 25 mm engineered-wood panels with oak-look melamine or laminate facing and sealed edges. Load capacity: 100 kg. Product Features: panel-leg,construction,two-person,workstation,fixed-height,desk,storage,pedestal,desk-mounted,divider,oak,and,warm,grey,finish. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | WS-2P-OAK-GRY-1800 |
| Overall dimensions (W × D × H) | 1800 × 1400 × 1100 mm | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Distributed desktop static load | 100 kg |
| Pedestal drawer static load | 15 kg | Lower storage compartment shelf load | 25 kg |
| Recommended users | 2 persons | Leveling adjustment per glide | 10 mm |
| Workstation net weight | 95 kg | Top surface edge impact resistance | 20 kg drop-ball acceptance target |
| Drawer slide operating cycles | 50000 cycles | Top Static Load Reference | 150 kg uniformly distributed |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | Work surfaces | 25 mm engineered-wood panels with oak-look melamine or laminate facing and sealed edges |
| Vertical side and modesty panels | Warm-grey engineered-wood panels with smooth matte surface and rounded exposed corners | Storage pedestal front | Oak-look engineered-wood drawer and door fronts with black recessed lock/pull hardware |
| Support frame | Powder-coated steel connecting rails and tabletop brackets hidden below the work surface | Divider screen | White smooth composite or upholstered privacy panel with a light metal mounting rail |
| Floor leveling glides | Black nylon or PP circular glides with metal threaded stems | Storage configuration | Left fixed pedestal provides one shallow lockable top drawer and one lower vertical storage door for personal office items |
| Privacy and spatial division | White desk-mounted screen divides the rear visual field while the open front retains side communication between two users | Cable management | Rear mounting rail creates a 60 mm service channel for monitor and laptop cables; an add-on 80 mm grommet can be fitted at the rear corner |
| Floor leveling | Four threaded glides raise and level panels on carpet or hard floors without requiring tools beyond hand adjustment | Total carton volume | 0.39 cbm |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Reference Packaging Volume | 1 m³/set | Open-plan office | Suitable for two staff in open offices or project zones because the low divider gives visual privacy without blocking supervision |
| Administrative or clerical workspace | Recommended for daily laptop, paperwork and personal filing use due to the 750 mm worktop, knee bay and lockable pedestal | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 1400 × 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed desktop static load | 100 kg | |
|---|---|---|
| Pedestal drawer static load | 15 kg | |
| Lower storage compartment shelf load | 25 kg | |
| Recommended users | 2 persons | |
| Leveling adjustment per glide | 10 mm | |
| Workstation net weight | 95 kg | |
| Top surface edge impact resistance | 20 kg drop-ball acceptance target | |
| Drawer slide operating cycles | 50000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surfaces | 25 mm engineered-wood panels with oak-look melamine or laminate facing and sealed edges | |
|---|---|---|
| Vertical side and modesty panels | Warm-grey engineered-wood panels with smooth matte surface and rounded exposed corners | |
| Storage pedestal front | Oak-look engineered-wood drawer and door fronts with black recessed lock/pull hardware | |
| Support frame | Powder-coated steel connecting rails and tabletop brackets hidden below the work surface | |
| Divider screen | White smooth composite or upholstered privacy panel with a light metal mounting rail | |
| Floor leveling glides | Black nylon or PP circular glides with metal threaded stems |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Left fixed pedestal provides one shallow lockable top drawer and one lower vertical storage door for personal office items | |
|---|---|---|
| Privacy and spatial division | White desk-mounted screen divides the rear visual field while the open front retains side communication between two users | |
| Cable management | Rear mounting rail creates a 60 mm service channel for monitor and laptop cables; an add-on 80 mm grommet can be fitted at the rear corner | |
| Floor leveling | Four threaded glides raise and level panels on carpet or hard floors without requiring tools beyond hand adjustment |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total carton volume | 0.39 cbm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suitable for two staff in open offices or project zones because the low divider gives visual privacy without blocking supervision | |
|---|---|---|
| Administrative or clerical workspace | Recommended for daily laptop, paperwork and personal filing use due to the 750 mm worktop, knee bay and lockable pedestal |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
