PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static desktop load capacity	100 kg distributed load per seat
Leveling adjustment	15 mm per foot
Net product weight	118 kg
Recommended occupancy	2 users
Seat bay width	1200 mm per user
Work surface point load	40 kg at 100 x 100 mm contact area
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced wood-based panel with square impact-resistant edge banding
End cabinets	18 mm melamine-faced wood-based panels in matte grey with wood-tone accent fronts
Privacy divider	18 mm light grey fabric-faced or laminate panel with grey perimeter frame
Support structure	Powder-coated dark grey steel square post and under-top beam
Storage hardware	Side-mounted drawer slides with integrated pull recess or flush front handle
Base and leveling parts	Injection-molded or metal leveling feet with black floor-contact pads

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two independent work zones	Each user receives a 1200 x 600 mm desktop separated by a central panel seam and dedicated screen.
Visual privacy separation	Two 320 mm-high divider panels reduce direct sightlines while preserving open-office visibility above the screen.
End-position storage	Each seat is paired with a 400 mm-wide end cabinet offering drawer or door storage at the outer desktop end.
Under-desk support and leveling	Central steel leg and cabinet-base leveling feet support the frame and compensate for floor variation up to 15 mm.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for two-person bench planning where separate screens and end storage reduce visual distraction.
Procurement configuration	Use for staff workstations in 1200 mm seat-bay layouts with seated task chairs and under-desk cable management added if required.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-ENDCAB-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-ENDCAB-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-ENDCAB-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

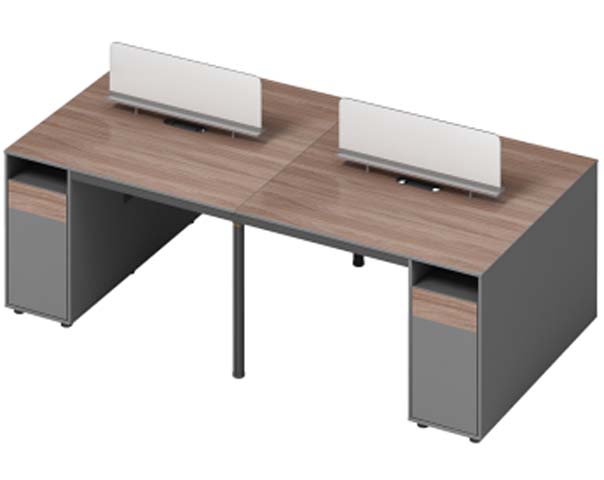

The Two-Person Panel Workstation with End Storage Cabinets is an unbranded office workstation designed for shared bench planning while maintaining clearly separated individual work zones. Its model reference is WS-2P-ENDCAB-2400, and the layout provides two side-by-side seat positions. Each user receives a 1200 x 600 mm work surface, with the central seam and dedicated divider creating a disciplined two-person configuration. Visually, the workstation combines matte grey cabinetry, wood-tone accent fronts, dark grey steel supports, and a light grey central privacy panel. The divider is available with a fabric-faced or laminate surface and a grey perimeter frame. Two 320 mm-high panels reduce direct sightlines between users without fully enclosing the desk, preserving visibility above the screen and the open character of the surrounding office. At each outer end, a 400 mm-wide storage cabinet gives the composition a structured, symmetrical layout and keeps personal or work materials close to the assigned user. The work surface uses a 25 mm melamine-faced wood-based panel with square impact-resistant edge banding and a finished top thickness of 50 mm. Cabinets are constructed from 18 mm melamine-faced wood-based panels, while the support structure uses a powder-coated dark grey steel square post and under-top beam with an 80 mm main section and 2 mm metal wall. Storage hardware includes side-mounted drawer slides with an integrated pull recess or flush front handle. Injection-molded or metal leveling feet with black floor-contact pads complete the base. Functionally, the workstation supports two users with independent work areas, visual separation, and end-position drawer or door storage. An 80 mm diameter cable opening and a cable tray with 120 mm depth support cable organization, and under-desk cable management can be added if required. The central steel leg and cabinet-base leveling feet accommodate floor variation up to 15 mm per foot. Each main seat provides 680 mm high and 900 mm wide knee clearance within a 1200 mm seat bay. This system is suited to open-plan offices, staff work zones, and residential workrooms that use a planned two-person desk layout. It pairs naturally with seated task chairs and is appropriate where storage access and reduced visual distraction are priorities. Procurement teams should note the two-cartons-per-set reference, 40-minute assembly reference, 118 kg net weight, and the need to coordinate delivery, lifting, and on-site assembly. Storage style, screen finish, and cable management accessories should be confirmed at order stage.

Two-Person Panel Workstation with End Storage Cabinets Specifications
