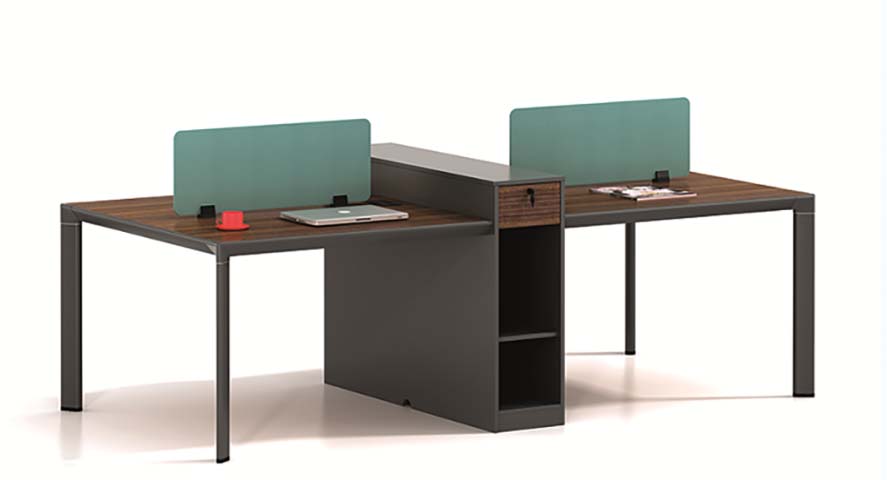

2-Person Back-to-Back Office Workstation Desk with Central Storage (model WS-2P-BB-CS-1800) is listed under Open Workstation, with overall dimensions of 2400 × 1200 × 750 mm and main material of Particle‑board (PB). Load capacity: 113 kg. Certifications: back-to-back,layout,integrated,central,storage,desktop,privacy,dividers,metal,leg,frame. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 2400 x 1200 x 750 mm | |
|---|---|---|
| single work surface size | 1200 x 600 mm | |
| desktop thickness | 25 mm | |
| central storage spine width | 400 mm | |
| open lower shelf height per tier | 300 mm | |
| desktop privacy screen height above desk | 350 mm | |
| desktop privacy screen width per unit | 1100 mm | |
| under-desk knee clearance height | 670 mm | |
| under-desk knee clearance depth per user | 600 mm | |
| steel leg cross-section | 45 x 45 mm | |
| cable grommet diameter | 60 mm | |
| edge banding thickness | 2 mm | |
| steel frame wall thickness | 1.2 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| single work surface static load capacity | 113 kg | |
|---|---|---|
| product net weight | 145 kg | |
| recommended user weight limit per station | 136 kg | |
| drawer slide cycle rating | 50000 cycles | |
| surface abrasion resistance rating | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| work surface | 25mm particle board core with thermally fused walnut wood-grain laminate, 2mm PVC edge banding | |
|---|---|---|
| leg frame | 45x45mm square steel tube with dark charcoal powder-coated finish, non-slip plastic leveling feet | |
| central storage unit | 16mm laminated board carcass with dark charcoal finish, wood-grain drawer front, 6mm hardboard back panel | |
| privacy dividers | 16mm MDF core with teal fabric-wrapped surface, black metal desk-mount brackets | |
| drawer hardware | 3-section full-extension ball-bearing slides, keyed central cam lock | |
| fasteners and connectors | Zinc-plated steel connection brackets, adjustable leveling glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| layout configuration | Back-to-back dual workstation supporting two seated users facing opposite directions | |
|---|---|---|
| storage access | Central lockable drawer secures small office supplies, two open lower shelves hold personal items or documents | |
| cable management | Desk-top cable grommets route power and data cords from work surface to under-desk space | |
| modular expandability | Side connection brackets allow linking multiple identical units into larger workstation clusters |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| open plan office areas | Suits staff seating in open office layouts, provides divided work zones with privacy screens | |
|---|---|---|
| small team work zones | Accommodates two adjacent staff members with dedicated storage and work surface per position |
EU Market Access Requirements* EN Standards
| EN 527-2:2016 | Applicable for safety, strength and durability requirements for office work desks | |
|---|---|---|
| EN 1335-1:2020 | Applicable for dimensional coordination with office chair seating systems |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Applicable for performance and durability testing standard for office desks |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for general technical requirements of wooden furniture for office desks | |
|---|---|---|
| GB/T 3327-2017 | Applicable for stability, strength and durability requirements for office desks |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for general technical requirements of wooden furniture for office desks; 2. GB/T 3327-2017: Applicable for stability, strength and durability requirements for office desks; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
