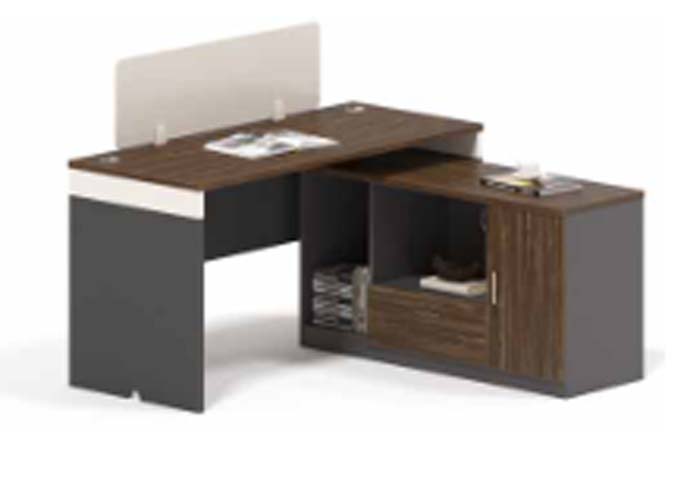

L-Shaped Walnut-Gray Executive Office Desk with Integrated Side Storage and Modesty Panel (model EXEC-L-WG-2000) is listed under Open Workstation, with overall dimensions of 2010 × 1800 × 750 mm and main material of Particle‑board (PB). Load capacity: 159 kg. Certifications: modern,style,L-shaped,fixed-height,structure,integrated,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2010 x 1800 x 750 mm | |
|---|---|---|
| Main work surface width | 1400 mm | |
| Main work surface depth | 700 mm | |
| Right return storage width | 1200 mm | |
| Right return storage depth | 600 mm | |
| Desktop thickness | 30 mm | |
| Modesty panel height | 350 mm | |
| Seated knee clearance height | 600 mm | |
| Seated knee clearance width | 700 mm | |
| Cable grommet diameter | 80 mm | |
| Drawer internal height | 150 mm | |
| Edge band thickness | 2 mm | |
| Base panel thickness | 25 mm | |
| Storage cabinet interior shelf height | 300 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 159 kg | |
|---|---|---|
| Drawer slide load rating | 68 kg | |
| Net product weight | 157 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Surface abrasion resistance | 2000 revolutions | |
| Recommended user weight capacity | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop and storage panels | Melamine-faced engineered particleboard, walnut woodgrain finish | |
|---|---|---|
| Base and modesty panel | Dark gray melamine laminated engineered wood | |
| Accent trim | White PVC edge trim along front main desktop edge | |
| Drawer glides | Cold-rolled steel ball-bearing 3/4 extension slides | |
| Door and drawer hardware | Brushed metal pull handles | |
| Modesty panel surface | Light off-white matte laminated panel |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed work surface height | 750 mm, non-adjustable for standard seated office use | |
|---|---|---|
| Cable management | Two desktop grommets route power/data cables below work surface | |
| Integrated storage zones | One open file shelf, one lower drawer, one closed cabinet door | |
| Privacy screening | Attached rear modesty panel blocks under-desk visibility from behind desk |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Sized for manager/executive seated work with integrated file storage | |
|---|---|---|
| Open-plan manager workstation | Modesty panel provides privacy for open office placement |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables: safety and dimensional requirements for commercial desks | |
|---|---|---|
| EN 15372:2016 | Furniture: strength, durability and safety requirements for non-domestic office storage |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk products: structural performance and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Standard for office storage units: load and cycle performance requirements |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable for panel desk structuralAcceptance | |
|---|---|---|
| GB/T 17657-2013 | Test methods for surface physical and chemical properties of wood-based panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable for panel desk structuralAcceptance; 2. GB/T 17657-2013: Test methods for surface physical and chemical properties of wood-based panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
