PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 1400 × 1100 mm
Overall footprint	3600 x 1400 x 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total seated user capacity	4 users
Distributed work-surface static load	120 kg per user position
Pedestal drawer static load	20 kg
Lower cabinet shelf or base load	30 kg
Whole-workstation reference net weight	220 kg
Floor contact points	16 points
Suggested user weight per seating position	120 kg
Durability target for moving hardware	50,000 drawer cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-composite panel with light oak-look laminate and matching impact edging
Gray surface zones	Laminated wood-composite pad areas with a matte gray decorative surface
Storage cabinets	Wood-composite carcass with oak-look side panels and warm gray drawer/door fronts
Support legs	Powder-coated gray metal tube legs with an angled twin-leg arrangement
Divider screen	Translucent woven-fabric or mesh-faced panel framed by slim gray supports
Hardware and cable ports	Black plastic or metal lock escutcheons, integrated cable ports, and adjustable polymer feet

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy division	Four low divider panels separate adjacent users while preserving visibility over the 350 mm screen height.
Personal storage	Each visible pedestal provides one upper lockable drawer and one lower vertical cabinet for user storage.
Cable management	Vertical ports on inner cabinet faces route monitor and power cables from the work surface toward floor outlets.
Modular expansion	Straight-run bays connect through shared divider posts and adjacent cabinet modules, allowing additional pods to be added.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton dimensions	1300 x 700 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for four-person team clusters where low screens provide visual privacy without blocking supervisory sightlines.
Administrative or processing workspace	Integrated personal pedestals and cable ports suit paperwork, laptop work, and desktop equipment in shared operations areas.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS4-SCR-PED-3600

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS4-SCR-PED-3600

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS4-SCR-PED-3600Open Export Tool

Quick Actions

Post an RFQ

Product Description

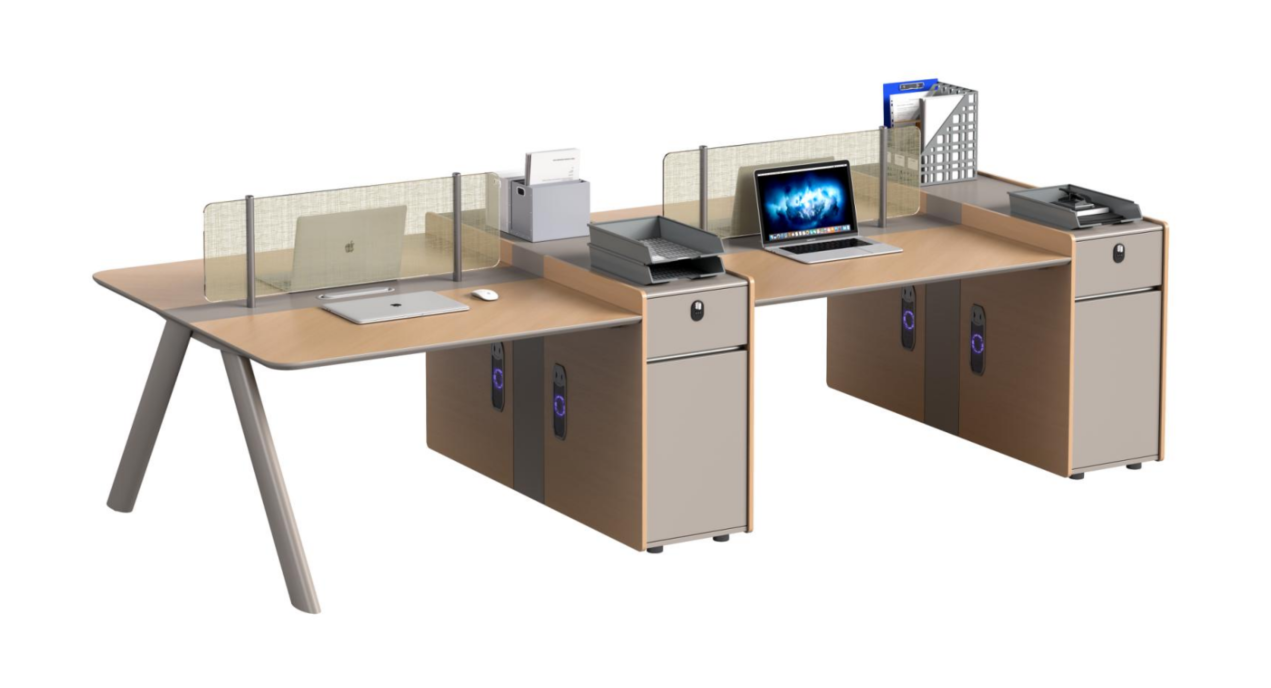

The Four-Person Modular Workstation with Screens and Locking Pedestals is an unbranded office workstation designed for coordinated team seating in a single organized layout. Model WS4-SCR-PED-3600 accommodates four users across connected work zones, using low divider panels to define personal space while retaining an open, supervisory atmosphere. Its visual character combines light oak-look laminate surfaces, warm gray drawer and door fronts, matte gray laminated work pads, gray powder-coated metal legs, and translucent woven-fabric or mesh-faced screens framed by slim gray supports. The angled twin-leg arrangement gives the station a structured commercial appearance, while black plastic or metal lock escutcheons and integrated cable ports provide discreet functional detailing. Each main seat position offers a dedicated work area, knee clearance, divider screening, and adjacent personal storage. The low screens separate adjacent users without blocking visibility over the panels, making the workstation suitable for open-plan offices, administrative teams, processing departments, and other shared work environments where individual focus and easy team oversight are both required. It supports laptop work, paperwork, monitor placement, and routine desktop equipment. Construction uses wood-composite work surfaces with light oak-look laminate and matching impact edging, laminated gray pad zones, wood-composite storage cabinets with oak-look side panels and warm gray fronts, and powder-coated gray metal support legs. Adjustable polymer feet help adapt the installation to floor conditions. The divider panels use a fabric or mesh face with gray support framing, while storage hardware includes lockable drawers for personal security. Each visible pedestal provides an upper lockable drawer and a lower vertical cabinet, giving every user storage close at hand. Cable management is integrated into the layout: vertical ports on the inner cabinet faces guide monitor and power cables from the work surface toward floor outlets, helping reduce clutter across the desktop. The system is also built for modular growth, as straight-run bays can connect through shared divider posts and adjacent cabinet modules, allowing additional pods to extend the planning layout. Procurement planning should account for its commercial scale, four-user capacity, 220 kg reference net weight, sixteen floor contact points, and assembly requirement. The distributed work-surface static load is rated at 120 kg per user position, with pedestal drawer capacity at 20 kg and lower cabinet shelf or base capacity at 30 kg. Buyers should confirm delivery packaging details with the supplier, as the supplied logistics information includes both a two-carton reference and a separate four-carton packing reference. Site access, floor protection, assembly coordination, power outlet placement, and the intended straight-run expansion path should be reviewed before installation.

Four-Person Modular Workstation with Screens and Locking Pedestals Specifications
