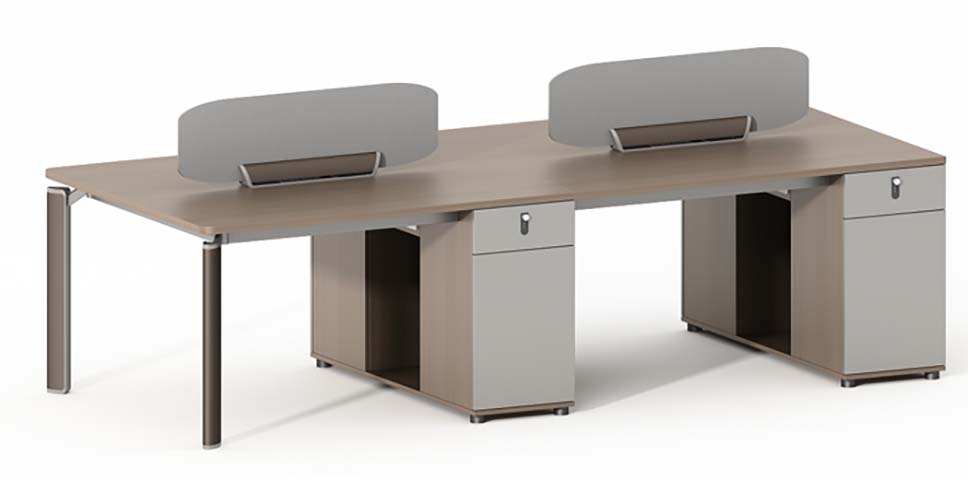

2-Person Side-by-Side Office Workstation with Privacy Screens and Lockable Pedestals (model WS-2P-CURVDIV-TAUPE-2400) is listed under Open Workstation, with overall dimensions of 2400 × 700 × 1050 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: Modern,commercial,style,fixed,dual-seat,structure,integrated,lockable,storage,low,curved,desktop,dividers. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation dimensions | 2400 x 700 x 1050 mm | |
|---|---|---|
| Worktop surface height | 750 mm | |
| Worktop thickness | 32 mm | |
| PVC edge band thickness | 1 mm | |
| Under-desk knee clearance height | 720 mm | |
| Individual work surface width per user | 1200 mm | |
| Curved desktop privacy divider height | 300 mm | |
| Single storage pedestal dimensions | 410 x 440 x 660 mm | |
| Cylindrical metal support leg diameter | 60 mm | |
| Open CPU/storage slot width per user | 200 mm | |
| Desktop document slot length | 450 mm | |
| Leveling foot adjustment range | 10 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total worktop static load capacity | 100 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Cabinet door hinge cycle rating | 80000 cycles | |
| Product net weight | 125 kg | |
| Recommended maximum user weight load per seat | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop surface | E1 grade particleboard with taupe melamine laminate finish | |
|---|---|---|
| Support legs | Powder-coated cylindrical steel tubing with matching taupe finish | |
| Privacy dividers | Medium-density fiberboard with matte grey laminate finish | |
| Storage pedestal bodies | 16 mm thick laminated composite board with taupe and grey two-tone finish | |
| Edge banding | 1 mm thick PVC edge trim on all worktop and panel edges | |
| Hardware components | Zinc-plated steel locks, hinges, and 3-section ball-bearing drawer slides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated storage | Two fixed pedestals per workstation, each with 1 lockable top drawer and 1 lower cabinet door, plus open CPU slot | |
|---|---|---|
| Privacy screening | Two curved low dividers separate adjacent work positions to reduce visual distraction | |
| Leveling adjustment | Adjustable polymer leveling feet on all base supports compensate for uneven floor surfaces | |
| Cable management | Integrated rear cable routing channels and desktop pass-through slots organize power and data cords |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff zones | Suitable for 2 adjacent clerical, finance, or administrative staff positions in open office layouts | |
|---|---|---|
| Shared service work areas | Supports two team members with dedicated storage and visual separation for collaborative administrative tasks |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks, safety and strength requirements for commercial office workstation design | |
|---|---|---|
| EN 527-2:2016+A1:2019 | Office work tables and desks, dimensional and strength adjustment requirements for seated use | |
| EN 13150:2019 | Workbenches for non-domestic use, structural stability requirements applicable to fixed workstations |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, defining strength, durability and stability requirements for commercial office desks | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable to lockable under-desk pedestal performance and durability |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to laminated desk and storage components | |
|---|---|---|
| GB/T 3327-2017 | Test methods for surface physical and chemical properties of wooden furniture, applicable to melamine finish durability | |
| GB 28007-2011 | Safety requirements for children's and student furniture, relevant for edge and corner safety design |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminated desk and storage components; 2. GB/T 3327-2017: Test methods for surface physical and chemical properties of wooden furniture, applicable to melamine finish durability; 3. GB 28007-2011: Safety requirements for children's and student furniture, relevant for edge and corner safety design; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
