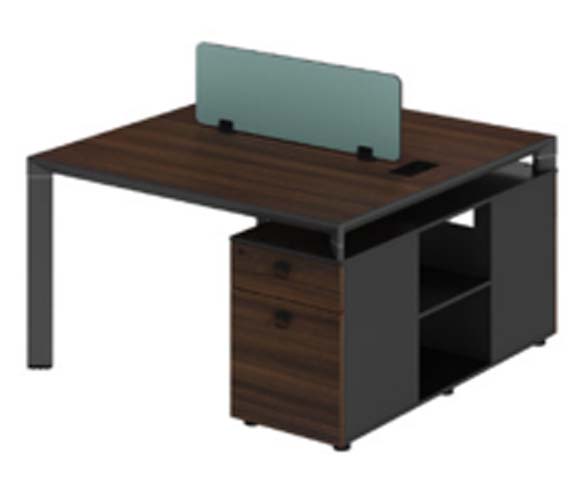

Name: 2-Person Face-to-Face Office Workstation with Central Privacy Screen and Integrated Storage
Brand: DIWO
SKU: 26BCM6

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	1520 x 1650 x 767 mm
Per-user desktop depth	700 mm
Desktop thickness	25 mm
Edge band thickness	2 mm
Privacy screen height above desktop	300 mm
Under-desk knee clearance height	673 mm
Square support leg cross-section	50 x 50 mm
Cable grommet diameter	60 mm
Integrated pedestal width	400 mm
Open under-desk shelf internal height	320 mm
Drawer box internal depth	380 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total desktop static load capacity	250 kg
Drawer slide cycle rating	50000 cycles
Unit net weight	145 kg
Leveling foot adjustment range	10 mm
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop core and finish	25mm E1-grade particleboard with thermally fused walnut melamine finish
Support frame and legs	1.2mm thick powder-coated matte black square steel
Central privacy screen	Frosted semi-translucent acrylic panel with black mounting brackets
Drawer and storage panels	18mm melamine-faced engineered wood with black edge banding
Hardware components	Steel ball-bearing drawer slides, nylon leveling feet, ABS cable grommet
Surface finish durability	Stain-resistant, wear-resistant melamine surface with abrasion rating of 2000 cycles

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Desktop grommet routes power/data cables from work surface to under-desk space
Storage configuration	Two-drawer pedestal and two-tier open under-desk shelves provide mixed storage
Floor leveling	Adjustable feet on all base contact points compensate for uneven floor surfaces
Visual privacy	Central desktop screen blocks direct line of sight between opposite seated users

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office work areas	Two-seat opposing layout fits standard open office cubicle grids for team seating
Small business and startup offices	Integrated storage reduces need for separate filing cabinets in limited space

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements, applicable to desk structural performance
EN 13722:2004	Office furniture storage units strength and durability requirements for drawer components

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard for static load and durability testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desktops and storage components
GB/T 3327-2017	Technical requirements for office tables and desks, applicable to structural performance
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to engineered wood components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktops and storage components;
2. GB/T 3327-2017: Technical requirements for office tables and desks, applicable to structural performance;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to engineered wood components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-WAL-1650

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-WAL-1650

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-WAL-1650Open Export Tool

Quick Actions

Post an RFQ

Product Description

The DIWO WS-2P-WAL-1650 is a purpose-built 2-person face-to-face office workstation designed to balance collaborative proximity, individual privacy, and space efficiency for modern work environments. Visually, the unit features a warm walnut melamine desktop finish paired with a matte black powder-coated steel support frame, creating a sleek, contemporary aesthetic that aligns with commercial office design standards. Its two-seat opposing layout positions users directly across from one another, separated by a frosted semi-translucent acrylic central privacy screen mounted with black hardware that extends above the desktop surface to block direct line of sight between seated users without fully blocking ambient light or casual verbal communication. All support legs feature a uniform square cross-section, contributing to the workstation’s clean, streamlined visual profile. Constructed for long-term commercial use, the workstation’s desktop is built from 25mm E1-grade particleboard finished with thermally fused walnut melamine, treated to resist stains and surface wear through regular daily use. Edge banding with matching black trim protects desk and storage panel edges from impact damage. The support frame and legs are formed from 1.2mm thick powder-coated matte black square steel, fitted with nylon leveling feet at every floor contact point to compensate for uneven floor surfaces. Storage components use 18mm melamine-faced engineered wood, fitted with steel ball-bearing drawer slides for smooth operation, while cable routing points use durable ABS grommets. Functional features are tailored to shared work needs: the central grommet routes power and data cables from the desktop to the under-desk area to reduce surface clutter, while the integrated storage configuration combines a two-drawer pedestal with two-tier open under-desk shelves to hold office supplies, personal items, and working documents without requiring additional separate storage furniture. The desktop provides sufficient depth per user to accommodate standard monitors, keyboards, and work materials, with ample under-desk knee clearance for comfortable seated positioning. This workstation is ideally suited for open-plan office work areas, where its two-seat opposing layout fits standard open office cubicle grids to support adjacent team seating. It is also a strong fit for small business and startup offices, where its integrated storage design reduces the need to purchase separate filing cabinets, conserving valuable floor space in compact work environments. For procurement planning, note that each unit ships across multiple cartons, with a stated reference assembly time of 40 minutes per set to support efficient installation scheduling. Buyers should account for the unit’s net weight when planning placement and floor load requirements, and coordinate freight handling to match the total packaged gross weight per set. The design’s consistent finish palette pairs easily with other walnut and black matte office furniture to create cohesive workspace layouts. The combined static load capacity of the desktop supports standard office equipment across both user positions, with even weight distribution recommended for the top surface to maintain long-term structural integrity.
