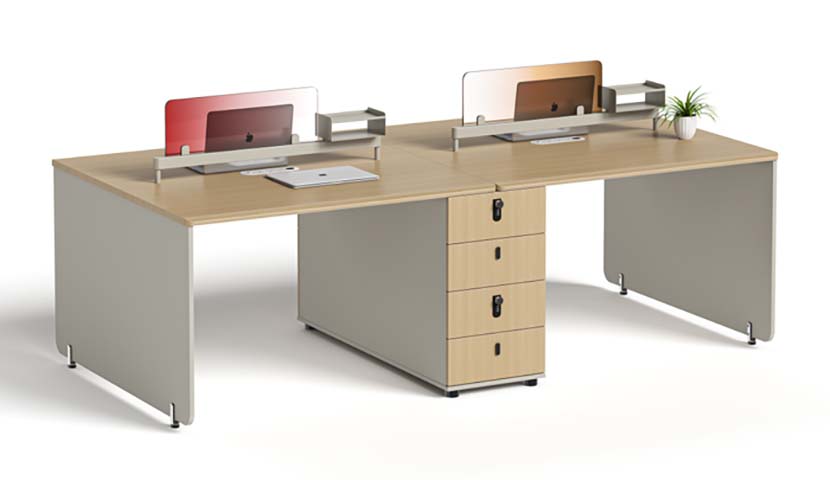

Four-Person Panel-Based Open Office Workstation with Central Drawer Pedestal and Desktop Screens (model WS-4P-OAK-GRY-2800) is listed under Open Workstation. Dimensions: 2800 × 2400 × 1100 mm. Materials: 25 mm wood-grain thermally laminated particleboard with sealed matching edge band; exact board grade requires supplier BOM confirmation. Load capacity: 160 kg total. Product Features: Four-person,workstation,layout,panel,legs,central,drawer,pedestal,desktop,privacy,screens,cable,ports. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | WS-4P-OAK-GRY-2800 |
| Overall dimensions (W × D × H) | 2800 × 2400 × 1100 mm | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Distributed worktop static load | 160 kg total |
| Single-position worktop load | 40 kg | Central drawer unit static load | 40 kg total |
| Number of users | 4 persons | Recommended floor area | 8.2 square meters |
| Net weight | 196 kg | Drawer slide cycle target | 50,000 cycles |
| Work surface impact and abrasion acceptance | 2,000 cycles | Top Static Load Reference | 150 kg uniformly distributed |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | Work surface | 25 mm wood-grain thermally laminated particleboard with sealed matching edge band; exact board grade requires supplier BOM confirmation |
| Side modesty panels | 18 mm gray matte laminated panel with rounded exposed edges and visible leveling feet; substrate requires BOM confirmation | Central drawer pedestal | Light oak laminated drawer fronts and gray side carcass with four vertically stacked drawers; lock barrels visible on two drawers |
| Privacy dividers | 8 mm translucent tempered glass panels in red, clear, amber, and bronze tints, secured by exposed metal standoff clamps | Support and rail system | Light gray powder-coated steel longitudinal rail, shelf brackets, screen clamps, and adjustable leveling feet; coating thickness needs supplier data |
| Cable fittings | Round silver cable grommet or port set flush-fitted into each work surface; internal cable tray is not visible | Workstation layout | Four face-to-face seated positions arranged as two paired work bays, with one central storage pedestal shared between users |
| Storage function | Four stacked drawers provide personal or shared office storage, with two lockable drawers and two recessed-pull non-locked drawers | Privacy separation | Four freestanding tinted glass screens create individual visual dividers above each desktop zone without blocking overhead light |
| Cable management | Circular desktop ports allow monitor and laptop cables to pass below the work surface; hidden under-desk routing must be specified at order stage | Number of packages | 5 flat packs |
| Total packed CBM | 4.75 cubic meters | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Open-plan office | Suitable for four-person team zones, administrative clusters, and call-center benches where visual separation, cable routing, and nearby drawer storage are required |
| Procurement configuration | Use as a standalone four-seat island or combine multiple identical units for larger departmental bench layouts | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 2400 × 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed worktop static load | 160 kg total | |
|---|---|---|
| Single-position worktop load | 40 kg | |
| Central drawer unit static load | 40 kg total | |
| Number of users | 4 persons | |
| Recommended floor area | 8.2 square meters | |
| Net weight | 196 kg | |
| Drawer slide cycle target | 50,000 cycles | |
| Work surface impact and abrasion acceptance | 2,000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm wood-grain thermally laminated particleboard with sealed matching edge band; exact board grade requires supplier BOM confirmation | |
|---|---|---|
| Side modesty panels | 18 mm gray matte laminated panel with rounded exposed edges and visible leveling feet; substrate requires BOM confirmation | |
| Central drawer pedestal | Light oak laminated drawer fronts and gray side carcass with four vertically stacked drawers; lock barrels visible on two drawers | |
| Privacy dividers | 8 mm translucent tempered glass panels in red, clear, amber, and bronze tints, secured by exposed metal standoff clamps | |
| Support and rail system | Light gray powder-coated steel longitudinal rail, shelf brackets, screen clamps, and adjustable leveling feet; coating thickness needs supplier data | |
| Cable fittings | Round silver cable grommet or port set flush-fitted into each work surface; internal cable tray is not visible |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workstation layout | Four face-to-face seated positions arranged as two paired work bays, with one central storage pedestal shared between users | |
|---|---|---|
| Storage function | Four stacked drawers provide personal or shared office storage, with two lockable drawers and two recessed-pull non-locked drawers | |
| Privacy separation | Four freestanding tinted glass screens create individual visual dividers above each desktop zone without blocking overhead light | |
| Cable management | Circular desktop ports allow monitor and laptop cables to pass below the work surface; hidden under-desk routing must be specified at order stage |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of packages | 5 flat packs | |
|---|---|---|
| Total packed CBM | 4.75 cubic meters | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suitable for four-person team zones, administrative clusters, and call-center benches where visual separation, cable routing, and nearby drawer storage are required | |
|---|---|---|
| Procurement configuration | Use as a standalone four-seat island or combine multiple identical units for larger departmental bench layouts |
EU Market Access Requirements* EN Standards
| EN 527-1:2011+A1:2019 | Safety, strength, and durability requirements for office desks and workstations | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Mechanical safety and test methods for office work surfaces, storage interfaces, and stability | |
| EN 15338:2007+A1:2010 | Durability and strength requirements for drawer and hinged furniture hardware | |
| EN 12600:2002 | Pendulum impact classification for tempered glass used in vertical privacy screens |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Office desk and workstation standard for safety, durability, structural load, and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage cabinet and pedestal performance standard covering drawers, locks, slides, and stability |
Standards applicable to China-market projects
| GB/T 3324-2024 | Applicable standards and test results require confirmation | |
|---|---|---|
| GB/T 3325-2017 | General test methods for metal furniture hardware, applicable to drawer slides, locks, leveling feet, and steel support components | |
| GB/T 10357.1-2013 | Table mechanical test for strength and stability, applicable to static loading and workstation stability acceptance | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, applicable to particleboard substrates used in tops and panels |
This product must meet the following technical requirements: 1. GB/T 3324-2024: Applicable standards and test results require confirmation; 2. GB/T 3325-2017: General test methods for metal furniture hardware, applicable to drawer slides, locks, leveling feet, and steel support components; 3. GB/T 10357.1-2013: Table mechanical test for strength and stability, applicable to static loading and workstation stability acceptance; 4. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable to particleboard substrates used in tops and panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
