PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall workstation footprint	2800 x 1200 x 1200 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	168 kg
Distributed work-surface load	60 kg per seat
Overhead shelf load	15 kg per compartment
Supported users	4 users
Per-user cable grommet capacity	2 cables per 80 mm port
Drawer-slide duty reference	35 kg per drawer, 50,000 cycles
Hardware cyclic-use target	50,000 operations
Floor loading	50 kg per square meter
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm wood-grain melamine-faced particleboard with sealed impact edges
Central support cabinets	18 mm dark grey and wood-grain melamine-faced panel construction
Privacy screens	18 mm composite panel wrapped in teal woven fabric
Exposed desk legs	Black powder-coated tapered steel legs with floor contact glides
Cable port trim	Black plastic or nylon grommet ring set into each work surface
Connector hardware	Black steel or zinc-alloy screen support brackets and cam-and-bolt panel connectors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-position bench layout	Two users occupy each side, separated by a continuous central spine and low teal divider panels
Privacy division	Two 350 mm-high fabric screens separate adjacent work positions while retaining visibility over the top
Cable management	One 80 mm grommet per work position feeds cables into the central support cavity
Overhead open storage	Each rear hutch provides two open cubbies for binders and personal items, with no visible door

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton dimensions	1450 x 700 x 120 mm
Total gross weight	190 kg
Total packed volume	0.78 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office benching	Suits four staff in a compact linear cluster where shared storage and low screens balance privacy with supervision
Project and administrative work areas	Supports laptops, monitors and document storage in call centres, admin offices or team zones

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011+A1:2024	Office desks and work tables safety, strength and durability requirements for commercial seated workstations.
EN 527-2:2011+A1:2024	Office desk dimensional requirements, useful for checking the 750 mm work height and knee clearance.
EN 16139:2013+A1:2023	Non-domestic seating-area furniture strength and durability, applicable where matching benching seating is specified.
EN 13986:2004+A1:2015	Wood-based panel characteristics for building and furniture applications, relevant to board substrate acceptance.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Office desks and work tables performance standard covering safety, strength, durability and stability.
BIFMA E3-2024 Furniture Sustainability	Optional multi-attribute sustainability assessment for panel, metal, finish and packaging material claims.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel flatness, edge sealing and structural stability.
GB/T 3325-2017	Metal furniture technical requirements, applicable to the steel legs and exposed metal support components.
GB 18580-2017	Formaldehyde emission limit for wood-based panels, applicable to laminate board substrates used in the desk and cabinets.
GB/T 10357.5-2011	Furniture surface physical and chemical test methods, applicable to laminate abrasion, stain and impact acceptance.
GB/T 10357.1-2013	Mechanical test method for table strength and stability, applicable to work-surface load and floor stability checks.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel flatness, edge sealing and structural stability.;
2. GB/T 3325-2017: Metal furniture technical requirements, applicable to the steel legs and exposed metal support components.;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable to laminate board substrates used in the desk and cabinets.;
4. GB/T 10357.5-2011: Furniture surface physical and chemical test methods, applicable to laminate abrasion, stain and impact acceptance.;
5. GB/T 10357.1-2013: Mechanical test method for table strength and stability, applicable to work-surface load and floor stability checks.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-LIN-SCR-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-LIN-SCR-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-LIN-SCR-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

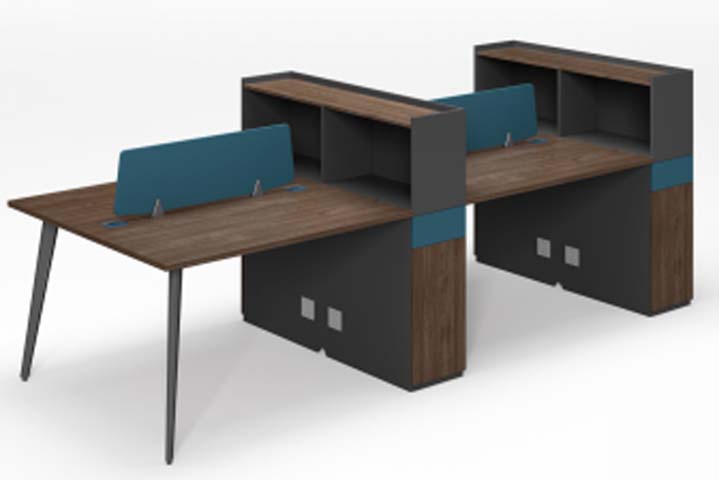

The four-person linear workstation combines structured benching, privacy division, overhead storage, and integrated cable management in a single coordinated layout. Model WS-4P-LIN-SCR-2800 is unbranded and designed for office use, with a linear arrangement that places two users on each side. A continuous central spine organises the work positions, while low teal fabric divider screens separate adjacent users without closing the bench off visually. The screens are 350 mm high, preserving visibility over the top and helping open-plan areas balance individual focus with team supervision. Visually, the workstation pairs wood-grain laminate worktops and storage panels with dark grey laminate cabinet faces, teal woven-fabric screens, and black powder-coated steel legs. The tapered steel legs include floor-contact glides, while black plastic or nylon grommet rings provide a neat finish at each cable opening. Black steel or zinc-alloy brackets support the screens, and cam-and-bolt connectors join the panel components. Work surfaces use 25 mm melamine-faced particleboard with sealed impact edges and present a finished top thickness of 50 mm. Central support cabinets use 18 mm dark grey and wood-grain melamine-faced panels. Each of the four positions includes an 80 mm cable grommet that routes cables into the central support cavity. The port accommodates two cables per user position, and the cable tray has a depth of 120 mm. This arrangement supports laptops, monitors, and other desktop equipment while reducing visible cabling across the work surface. The rear hutch provides two open cubbies per position for binders and personal items, offering accessible overhead storage without visible doors. The layout is well suited to open-plan office benching, project zones, administrative work areas, call centres, and team environments where four staff need compact shared infrastructure. Distributed work-surface load capacity is 60 kg per seat, overhead shelf capacity is 15 kg per compartment, and drawer-slide duty is referenced at 35 kg per drawer for 50,000 cycles. The main support section is 80 mm with a 2 mm metal wall, and each main seat offers 680 mm high and 900 mm wide knee clearance. Procurement teams should plan for a 2800 x 1200 x 1200 mm footprint, 168 kg net weight, and two-carton delivery with 190 kg total gross weight and 0.78 CBM packed volume. Assembly time is referenced at 40 minutes per set. The product is best specified where cable-managed bench desking, modest privacy screening, and open overhead storage are required in a shared commercial workspace.

Four-Person Linear Workstation with Divider Screens, Overhead Storage and Cable Ports Specifications
