PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1200 × 750 mm
Overall unit dimensions	2800 x 1200 x 750 mm
Worktop thickness	25 mm
Under-desk knee clearance height	650 mm
Per-seat work surface width	800 mm
Work surface depth per position	600 mm
Divider screen height above worktop	350 mm
Divider screen thickness	20 mm
Upper drawer internal dimensions	400 x 500 x 120 mm
Lower cabinet internal dimensions	400 x 500 x 500 mm
Open shelf compartment dimensions	400 x 300 x 320 mm
Support leg cross-section	60 x 30 mm
PVC edge banding thickness	2 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total unit static load capacity	450 kg
Unit net weight	180 kg
Surface abrasion resistance	2000 cycles
Standard product warranty	10 years
Available color options	12
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop surface	E1 grade melamine-faced particleboard, dark gray finish, 2mm PVC edge trim
Cabinet carcass	E1 grade melamine-faced particleboard, light gray matte finish
Lower cabinet door panels	Dark gray ribbed-texture melamine particleboard
Support frame and end legs	1.2mm thick powder-coated steel, silver-gray finish with black accent trim
Drawer hardware	Zinc alloy drawer slides with integrated key locks
Divider screen support brackets	Die-cast aluminum alloy, light gray finish
Divider screen panels	Fabric-wrapped fiberboard with sound-dampening core
Leveling feet	Reinforced nylon with adjustable steel threaded insert
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Per-seat lockable upper drawer	Keyed lock secures stored stationery and personal items, full-extension 400mm slide travel
Enclosed lower cabinet storage	Vertical ribbed-door compartment behind each drawer for bulk office supply storage
Adjacent open shelving per seat	Two-tier open shelf next to each cabinet for books and frequently accessed items
Desk-mounted privacy dividers	Low partition screens separate adjacent work positions to reduce visual distraction
Integrated cable management	Desktop grommets and under-desk cable tray route power and data cords
Modular connection capability	Units can be connected in extended runs for 2/4/6/8-seat open office configurations
Adjustable leveling feet	15mm vertical adjustment range on base feet to stabilize unit on uneven floors
Reversible layout configuration	Pedestals can be positioned on left or right side of each seat during assembly
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office spaces	Linear configuration suitable for high-density staff work areas and departmental floors
Call center environments	Divided individual work positions support focused task work with reduced distraction
Startup and co-working spaces	Modular expandable design adapts to growing team sizes and flexible seating plans
Educational institution offices	Durable commercial construction withstands frequent daily use in administrative departments
Temporary project workspaces	Knock-down design allows quick assembly and reconfiguration for short-term project teams

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to structural performance validation
EN 527-2:2016	Office worktables dimensional safety and stability requirements for seated work
EN 13986:2004+A1:2015	Wood-based panels for construction use, applicable to formaldehyde emission performance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard for commercial office use, covering load and durability testing
ANSI/BIFMA X7.1-2021	Formaldehyde emission standard for low-emitting office furniture materials
ANSI/BIFMA e3-2019	Furniture sustainability standard for material and environmental performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk panel and cabinet components
GB/T 3327-2018	Performance test methods for office desks, applicable to structural load and stability verification
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to E1 grade board materials
GB/T 4897-2015	Particleboard specifications, applicable to worktop and cabinet substrate requirements

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and cabinet components;
2. GB/T 3327-2018: Performance test methods for office desks, applicable to structural load and stability verification;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1 grade board materials;
4. GB/T 4897-2015: Particleboard specifications, applicable to worktop and cabinet substrate requirements;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MW-3P-LIN-STG750

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MW-3P-LIN-STG750

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MW-3P-LIN-STG750Open Export Tool

Quick Actions

Post an RFQ

Product Description

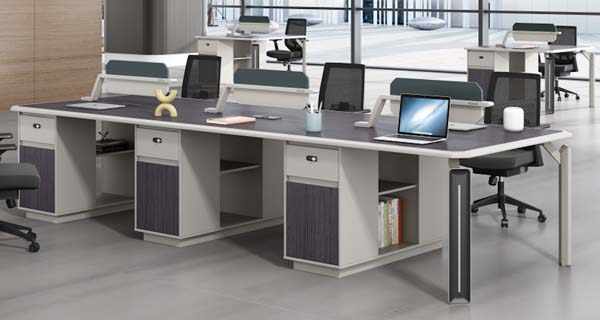

The Linear 3-Person Modular Open Office Workstation Desk with Integrated Storage Pedestals, model MW-3P-LIN-STG750, is a modern, streamlined unbranded modular workstation designed for collaborative open work environments. Its linear, multi-seat layout presents a clean, structured visual profile, with a balanced two-tone finish scheme pairing dark gray worktops and ribbed lower cabinet doors with light gray cabinet carcasses, silver-gray powder-coated steel frames accented with black trim, and soft fabric-wrapped divider screens. The low, evenly mounted partition screens rise above the work surface to define individual seat boundaries without blocking cross-team sightlines, while integrated storage pedestals sit flush beneath the worktop to maintain a smooth, uncluttered exterior silhouette. Built for long-term commercial use, the workstation uses E1 grade melamine-faced particleboard for all panel components, with 2mm PVC edge trim protecting the 25mm thick dark gray worktop against impact and wear. The 1.2mm thick powder-coated steel frame and end legs form a rigid support structure, paired with die-cast aluminum divider brackets, zinc alloy lockable drawer slides, reinforced nylon leveling feet with steel threaded inserts, and fabric-wrapped fiberboard divider panels with a sound-dampening core. Drawer hardware is rated for 45kg per pair with 50000 cycle operation, the work surface resists abrasion across 2000 cycles, the full unit supports 450kg total static load with 150kg uniformly distributed top load, and the product is backed by a 10-year standard warranty, with 12 available color options to match existing office decor. Each of the three positions includes a key-locking full-extension upper drawer for personal items and stationery, an enclosed ribbed-door lower cabinet for bulk office supplies, and a two-tier adjacent open shelf for frequently accessed materials. Low divider screens reduce visual distraction between seats, while desktop grommets and an under-desk cable tray keep power and data cords organized. Leveling feet offer 15mm of vertical adjustment to stabilize the unit on uneven floors, and the modular design allows connection of additional units to create 2, 4, 6, or 8-seat extended configurations. The knock-down assembly takes 40 minutes per set, packed across cartons for efficient transport. This workstation is ideally suited for high-density open-plan office floors, call centers requiring focused individual work zones, startup and co-working spaces needing flexible scalable seating, educational institution administrative offices, and temporary project workspaces requiring quick reconfiguration. When procuring, note the unit ships as one set across multiple cartons with a total packaged volume of 1 cubic meter and net weight of 180kg, confirm selected color finishes align with space design requirements, and account for planned team growth to leverage the system’s modular connection capability for future expansion.
