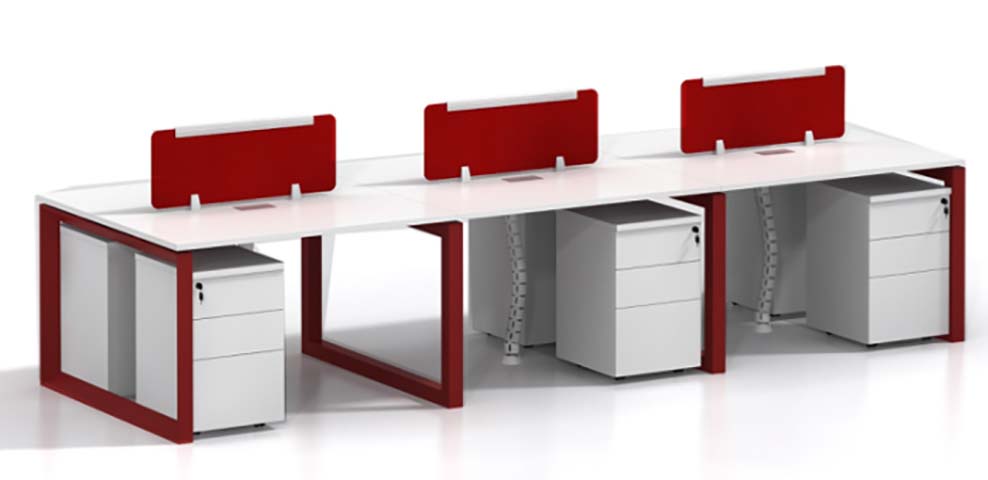

3-Person Linear Bench-Style Open Office Workstation with Privacy Dividers and Mobile Pedestals (model BNK-3P-RD-001) is listed under Open Workstation, with overall dimensions of 5400 × 800 × 1050 mm and main material of Particle‑board (PB). Load capacity: 135 kg. Certifications: linear,open-plan,configuration,desk-mounted,privacy,dividers,integrated,cable,management,mobile,3-drawer,pedestals,loop,cantilever,frame. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation dimensions | 5400 x 800 x 750 mm | |
|---|---|---|
| Worktop thickness | 25 mm | |
| Edge band thickness | 2 mm | |
| Per-user work bay width | 1800 mm | |
| Sitting knee clearance height | 720 mm | |
| Privacy screen height above worktop | 300 mm | |
| Cable grommet diameter | 62 mm | |
| Mobile pedestal dimensions | 390 x 500 x 600 mm | |
| Vertical cable spine diameter | 50 mm | |
| Loop leg steel section | 60 x 30 mm | |
| Levelling foot adjustment range | 10 mm | |
| Drawer internal usable height | 150 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop static load capacity | 135 kg | |
|---|---|---|
| Mobile pedestal total static load | 75 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Levelling foot maximum load per foot | 80 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate | 25mm E1 grade melamine-faced particle board | |
|---|---|---|
| Frame construction | 1.5mm thick powder-coated rectangular steel tube | |
| Edge protection | 2mm thick ABS impact-resistant edge banding | |
| Privacy dividers | Fabric-upholstered rigid composite panel | |
| Mobile pedestals | 0.8mm thick steel cabinet body | |
| Hardware components | Zinc-plated steel fasteners and brackets |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Dual in-surface grommets with vertical segmented cable spines per bay | |
|---|---|---|
| Privacy screening | Desk-mounted upholstered dividers between adjacent work positions | |
| Mobile storage | 3-drawer lockable pedestals on four dual-wheel lockable casters | |
| Frame levelling | Threaded adjustable feet on each leg base |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office zones | Linear multi-seat layout for team work areas with individual privacy and storage | |
|---|---|---|
| Call center and administrative zones | Standardized work positions with integrated cable management for desktop equipment |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable for commercial desk design | |
|---|---|---|
| EN 1335-1:2020 | Office furniture work chairs dimensional coordination, aligns knee clearance dimensions | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applies to mobile drawer pedestals |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for strength, durability and stability | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard for mobile pedestal drawer durability | |
| ANSI/BIFMA X5.6-2022 | Panel systems standard applicable for workstation privacy divider performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applies to worktop and panel components | |
|---|---|---|
| GB/T 3325-2017 | Metal office furniture general specifications, applies to steel frame and pedestal components | |
| GB 18584-2001 | Formaldehyde emission limits for indoor wooden furniture, applies to worktop substrate |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applies to worktop and panel components; 2. GB/T 3325-2017: Metal office furniture general specifications, applies to steel frame and pedestal components; 3. GB 18584-2001: Formaldehyde emission limits for indoor wooden furniture, applies to worktop substrate; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
