PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	95 kg
Distributed desktop load	60 kg
Open shelf load	15 kg per shelf
Lower cabinet load	25 kg
Single user capacity	1 person
Panel-leg lateral stability rating	100 kg horizontal test reference
Drawer slide cycle target	50,000 cycles
Door and drawer lock retention	200 pulls
Color options	2 visible finishes
Warranty target	5 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop and light door panel	25 mm melamine-faced particleboard or MDF with light oak grain
Side and cabinet carcass	18 mm charcoal-grey melamine-faced board
Exposed edges	2 mm PVC edgebanding on high-impact desktop edges and 0.8 mm on internal shelves
Support structure	Floor-resting panel legs and integrated cabinet divider panels
Cable outlets	Two 60 mm plastic or zinc-alloy round grommets with removable caps
Door and drawer hardware	Side-mounted hinges, drawer slides, recessed handle area and key lock

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

L-shaped seated workflow	Main desk and perpendicular return provide separate keyboard, writing and reference zones within one 750 mm-high workstation
Cable management	Two 60 mm desktop grommets route monitor and power cables into the rear panel zone
Integrated open storage	Hutch shelves and lower open cubby provide immediate access to binders, books and office equipment
Secured lower storage	One lower door and upper lockable drawer provide concealed filing and personal-item storage

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private office or management workstation	Provides a 750 mm seated work surface plus integrated filing and hutch storage for daily paperwork and computer work
Reception back office or compact administrative area	Combines task surface, locked storage and open reference shelves where space does not permit separate desk and cabinet units

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture strength and durability	EN 527:2002
Office desk dimensions	EN 527:2011
Formaldehyde emission	EN 13986:2004+A1:2015 E1

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Desk and table safety	ANSI/BIFMA X2021
Storage unit safety	ANSI/BIFMA X2019(R2024)
Stability acceptance	ANSI/BIFMA X5.5 and X5.9 stability tests

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission recommendation	GB/T 39600E1 limit
Furniture structural acceptance	GB/T 3324
Furniture coating limit	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission recommendation: GB/T 39600E1 limit;
2. Furniture structural acceptance: GB/T 3324;
3. Furniture coating limit: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSH-HUTCH-1600x1400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSH-HUTCH-1600x1400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSH-HUTCH-1600x1400Open Export Tool

Quick Actions

Post an RFQ

Product Description

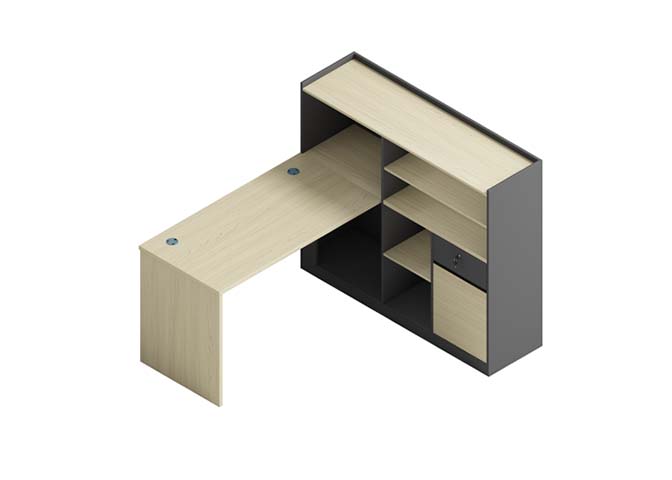

The L-Shaped Workstation Desk with Integrated Hutch Storage offers a structured workplace solution that combines an expansive work surface with built-in organization. Its L-shaped configuration joins a main desk with a perpendicular return, creating separate areas for keyboard work, writing, and reference materials within a single footprint. The elevated hutch, open shelves, lower cubby, door compartment, and drawer produce a layered visual form while keeping frequently used items close at hand. A light oak-grain work surface and door panel are paired with charcoal-grey cabinet and side panels, giving the workstation a contemporary two-tone appearance suited to professional interiors. Construction uses melamine-faced board throughout. The desktop and light door panel are made from 25 mm particleboard or MDF with a light oak grain, while the side panels and cabinet carcass use 18 mm charcoal-grey melamine-faced board. High-impact desktop edges receive 2 mm PVC edgebanding, and internal shelves use 0.8 mm edgebanding. Floor-resting panel legs and integrated cabinet divider panels support the layout, with an 80 mm main support section and 2 mm metal wall. Exposed cable management is provided through round desktop grommets with removable caps, allowing monitor and power leads to pass into the rear panel area and tray space. The workstation is configured for one user and provides effective knee clearance at the main seat. Its practical features address both daily workflow and security. Open hutch shelving and a lower open cubby accommodate binders, books, and office equipment, while a lower door and lockable upper drawer provide concealed storage for files and personal items. Side-mounted hinges, drawer slides, and a recessed handle area maintain a clean exterior. The 750 mm-high seated surface supports computer tasks, paperwork, and administrative work without requiring separate cabinet furniture. This model is well suited to private offices, management workstations, reception back offices, and compact administrative areas where desk, filing, and reference storage need to be consolidated. It is also appropriate for residential studies or home offices that call for an organized, desk-based workspace. Procurement planning should account for panel construction, integrated storage, and the need for assembly. The finished desk has a 50 mm top thickness, weighs 95 kg, and is supplied as a set with separate packaging for the main top and return or pedestal components. Buyers should confirm delivery access, packaging counts, assembly scheduling, and load requirements against intended equipment and storage use. Distributed desktop load is rated at 60 kg, open shelves at 15 kg each, and the lower cabinet at 25 kg.

L-Shaped Workstation Desk with Integrated Hutch Storage Specifications
