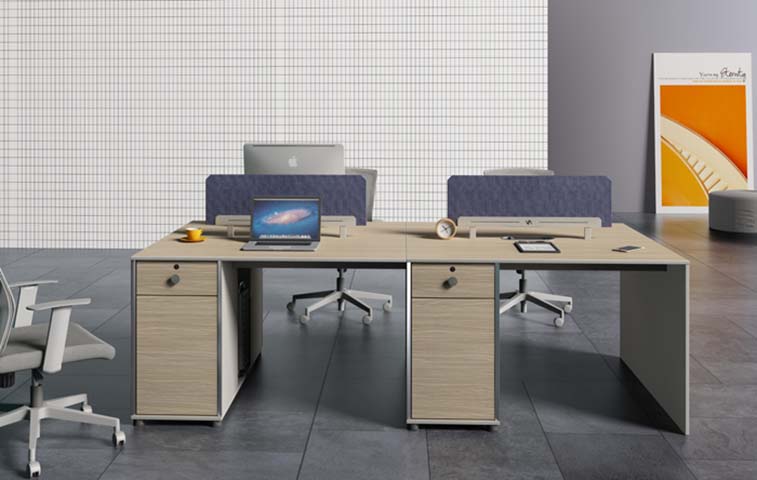

Four-Person Modular Office Workstation with Fabric Dividers and Locking Pedestals (model WS-4P-2800-OAK-BLUE) is listed under Open Workstation. Dimensions: 2800 × 1400 × 1100 mm. Materials: 25 mm engineered-wood panel with light-oak melamine face and matching impact-resistant edge band. Load capacity: 60 kg. Product Features: modular,workstation,back-to-back,seating,fabric,divider,locking,pedestal,panel-end,support,light,oak,finish. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | WS-4P-2800-OAK-BLUE |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Workstation product weight | 165 kg | Distributed desktop load per person | 60 kg |
| Pedestal drawer load | 20 kg per drawer | Lower cabinet shelf load | 25 kg |
| Seating capacity | 4 persons | Desktop impact and wear target | 20,000 cycles |
| Drawer slide durability | 50,000 open-close cycles | Divider panel acoustic face mass | 0.6 kg per m2 |
| Warranty duration | 5 years | Available finish count | 3 finishes |
| Desktop substrate and finish | 25 mm engineered-wood panel with light-oak melamine face and matching impact-resistant edge band | Under-desk pedestal | Melamine-faced panel cabinet with visible horizontal grain, rounded knob and separate top lock cylinder |
| Divider panel | Blue woven fabric over padded core with softly squared top corners | Support structure | Powder-coated steel rectangular rail and pedestal-reinforced frame, with a 50 mm panel support at the outer end |
| Drawer hardware | Side-mounted drawer slides with lock core and round pull knob | Floor contact hardware | Rigid polymer or steel leveling pads beneath each cabinet base |
| Four-person benching layout | Four independent workstations share one central spine, giving two users on each facing side without sacrificing individual drawer storage | Visual privacy screening | Two 1200 x 350 mm upholstered screens mount along the center line and reduce direct sight lines between opposing users |
| Integrated cable routing | A central recessed trough runs between facing desktops and accepts monitor and laptop cables, with desktop outlet access to be selected at order time | Lockable personal storage | Each visible pedestal provides a lockable top drawer and a lower file or storage compartment for one seated user |
| Largest carton size | 1450 x 760 x 160 mm | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Open-plan office bench planning | Suitable for four staff in a compact 2800 x 1400 mm footprint, with central screens separating opposing users while retaining shared cable management. | Procurement configuration | Best specified for project offices, administrative teams and call-center clusters where each user needs a 1400 mm surface and lockable under-desk storage. |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Workstation product weight | 165 kg | |
|---|---|---|
| Distributed desktop load per person | 60 kg | |
| Pedestal drawer load | 20 kg per drawer | |
| Lower cabinet shelf load | 25 kg | |
| Seating capacity | 4 persons | |
| Desktop impact and wear target | 20,000 cycles | |
| Drawer slide durability | 50,000 open-close cycles | |
| Divider panel acoustic face mass | 0.6 kg per m2 | |
| Warranty duration | 5 years | |
| Available finish count | 3 finishes |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate and finish | 25 mm engineered-wood panel with light-oak melamine face and matching impact-resistant edge band | |
|---|---|---|
| Under-desk pedestal | Melamine-faced panel cabinet with visible horizontal grain, rounded knob and separate top lock cylinder | |
| Divider panel | Blue woven fabric over padded core with softly squared top corners | |
| Support structure | Powder-coated steel rectangular rail and pedestal-reinforced frame, with a 50 mm panel support at the outer end | |
| Drawer hardware | Side-mounted drawer slides with lock core and round pull knob | |
| Floor contact hardware | Rigid polymer or steel leveling pads beneath each cabinet base |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Four-person benching layout | Four independent workstations share one central spine, giving two users on each facing side without sacrificing individual drawer storage | |
|---|---|---|
| Visual privacy screening | Two 1200 x 350 mm upholstered screens mount along the center line and reduce direct sight lines between opposing users | |
| Integrated cable routing | A central recessed trough runs between facing desktops and accepts monitor and laptop cables, with desktop outlet access to be selected at order time | |
| Lockable personal storage | Each visible pedestal provides a lockable top drawer and a lower file or storage compartment for one seated user |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Largest carton size | 1450 x 760 x 160 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office bench planning | Suitable for four staff in a compact 2800 x 1400 mm footprint, with central screens separating opposing users while retaining shared cable management. | |
|---|---|---|
| Procurement configuration | Best specified for project offices, administrative teams and call-center clusters where each user needs a 1400 mm surface and lockable under-desk storage. |
EU Market Access Requirements* EN Standards
| Office work-surface safety and strength | EN 527and EN 527 | |
|---|---|---|
| Storage cabinet safety | EN 14073and EN 14073 | |
| Upholstered furniture burning behavior | EN 1021and EN 1021 | |
| Formaldehyde emissions from wood panels | EN 13986 | |
| Surface abrasion of decorative laminates | EN 14354 |
US and Canada office-furniture standards
| Desk and table standard | ANSI/BIFMA X5.5 | |
|---|---|---|
| Storage cabinet standard | ANSI/BIFMA X5.9 | |
| Lounge and office seating foot mobility | ANSI/BIFMA X5.1 caster clauses | |
| Furniture emissions compliance | ANSI/BIFMA e3 |
Standards applicable to China-market projects
| Furniture structural safety | GB/T 10357.1 through GB/T 10357.7 | |
|---|---|---|
| Wood-based panel formaldehyde emission | GB 18580 | |
| Furniture storage safety | GB/T 3324 | |
| Office furniture fire safety | GB 20286 |
This product must meet the following technical requirements: 1. Furniture structural safety: GB/T 10357.1 through GB/T 10357.7; 2. Wood-based panel formaldehyde emission: GB 18580; 3. Furniture storage safety: GB/T 3324; 4. Office furniture fire safety: GB 20286; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
