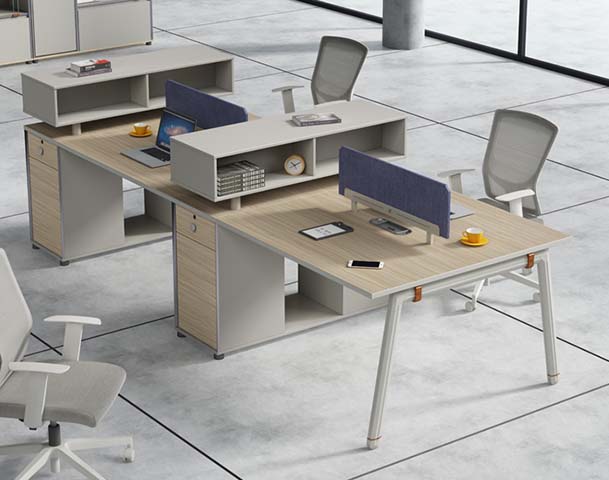

Four-Person Modular Workstation with Privacy Screens and Storage Hutch (model WS-4P-OAK-GRY-2800) is listed under Open Workstation. Dimensions: 2800 × 2400 × 1100 mm. Materials: 25 mm engineered-wood board with light oak melamine face and matching impact-resistant edge banding. Load capacity: 80 kg per seat. Product Features: four-seat,workstation,layout,fabric,divider,integrated,storage,light,oak,finish,grey,frame. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | WS-4P-OAK-GRY-2800 |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Seating capacity | 4 users | Worktop distributed load | 80 kg per seat |
| Desktop hutch shelf load | 15 kg per compartment | Pedestal drawer load | 20 kg |
| Cabinet shelf and interior load | 25 kg | Total workstation net weight | 165 kg |
| Privacy screen sound absorption rating | NRC 0.35 | Adjustable foot leveling range | 10 mm |
| Recommended daily user load cycle | 8 hours per seat | Top Static Load Reference | 150 kg uniformly distributed |
| Work surface | 25 mm engineered-wood board with light oak melamine face and matching impact-resistant edge banding | Storage panels | 18 mm light grey melamine-faced particleboard with sealed exposed edges |
| Privacy screens | 20 mm padded fibreboard panel covered in dark blue woven fabric | Leg frame | 50 mm powder-coated steel tube with light grey finish and inset floor glides |
| Cabinet hardware | Steel lock cylinder, drawer slide pair and recessed pull handle on each lockable pedestal | Panel core acceptance target | E1-grade low-emission engineered board at 8 mg/100 g formaldehyde emission or lower |
| Four-position work layout | Two face-to-face double benches create four separate 1200 x 600 mm seating positions for team-based open-plan offices | Visual privacy system | Two dark blue upholstered dividers sit between opposite users and block direct sightlines at monitor height without closing the aisle |
| Integrated personal storage | Each end combines a lockable upper drawer, lower vertical storage door and adjacent open under-desk shelf for personal items and files | Desktop organization hutch | Two elevated open-compartment units provide horizontal shelf storage while preserving knee space below |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Reference Packaging Volume | 1 m³/set | Open-plan team office | Installs four employees in a compact 2-by-2 cluster while using dividers and hutches to separate individual visual zones |
| Administrative or call-center workspace | The 750 mm desk height, personal pedestals and laptop-sized surfaces suit daily computer, paperwork and telephone tasks | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 4 users | |
|---|---|---|
| Worktop distributed load | 80 kg per seat | |
| Desktop hutch shelf load | 15 kg per compartment | |
| Pedestal drawer load | 20 kg | |
| Cabinet shelf and interior load | 25 kg | |
| Total workstation net weight | 165 kg | |
| Privacy screen sound absorption rating | NRC 0.35 | |
| Adjustable foot leveling range | 10 mm | |
| Recommended daily user load cycle | 8 hours per seat | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm engineered-wood board with light oak melamine face and matching impact-resistant edge banding | |
|---|---|---|
| Storage panels | 18 mm light grey melamine-faced particleboard with sealed exposed edges | |
| Privacy screens | 20 mm padded fibreboard panel covered in dark blue woven fabric | |
| Leg frame | 50 mm powder-coated steel tube with light grey finish and inset floor glides | |
| Cabinet hardware | Steel lock cylinder, drawer slide pair and recessed pull handle on each lockable pedestal | |
| Panel core acceptance target | E1-grade low-emission engineered board at 8 mg/100 g formaldehyde emission or lower |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Four-position work layout | Two face-to-face double benches create four separate 1200 x 600 mm seating positions for team-based open-plan offices | |
|---|---|---|
| Visual privacy system | Two dark blue upholstered dividers sit between opposite users and block direct sightlines at monitor height without closing the aisle | |
| Integrated personal storage | Each end combines a lockable upper drawer, lower vertical storage door and adjacent open under-desk shelf for personal items and files | |
| Desktop organization hutch | Two elevated open-compartment units provide horizontal shelf storage while preserving knee space below |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan team office | Installs four employees in a compact 2-by-2 cluster while using dividers and hutches to separate individual visual zones | |
|---|---|---|
| Administrative or call-center workspace | The 750 mm desk height, personal pedestals and laptop-sized surfaces suit daily computer, paperwork and telephone tasks |
EU Market Access Requirements* EN Standards
| Office furniture safety and strength | EN 16139:2013+A1:2022 strength, durability and safety for non-domestic seating-adjacent work furniture | |
|---|---|---|
| Work surface dimensions and safety | EN 527:2011 dimensions and safety requirements for office desks | |
| Mechanical test reference | EN 527:2002 mechanical safety and structural test methods for office desks | |
| Upholstered panel ignitability | EN 1021:2014 smouldering cigarette ignition resistance for upholstered seating fabrics |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| Structural safety acceptance | GB/T 3324dimensions, strength and stability requirements for wooden furniture | |
|---|---|---|
| Formaldehyde emission control | GB 18580formaldehyde emission limit for interior decoration wood-based panels | |
| Office furniture mechanical safety | GB/T 38607safety requirements for office furniture | |
| Desktop fire safety reference | GB 8624building material burning behavior classification B1 |
This product must meet the following technical requirements: 1. Structural safety acceptance: GB/T 3324dimensions, strength and stability requirements for wooden furniture; 2. Formaldehyde emission control: GB 18580formaldehyde emission limit for interior decoration wood-based panels; 3. Office furniture mechanical safety: GB/T 38607safety requirements for office furniture; 4. Desktop fire safety reference: GB 8624building material burning behavior classification B1; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
