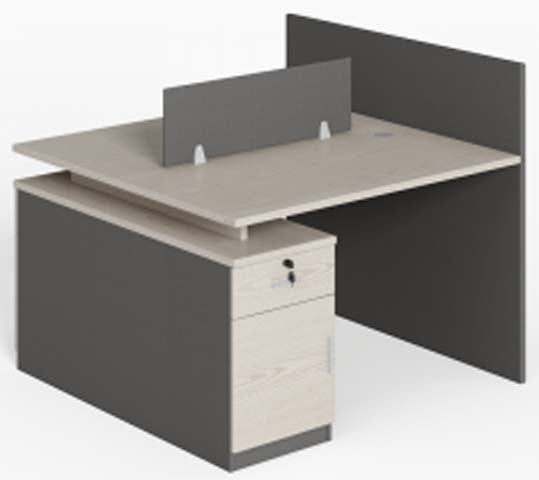

Product supplier2-Person Linear Office Cubicle Workstation with Fixed Storage Pedestal, E1 grade MFC particleboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1400 × 1200 mm | |
|---|---|---|
| Overall workstation dimensions | 2400 x 1400 x 1200 mm | |
| Desk top working height | 750 mm | |
| Desk top thickness | 25 mm | |
| Desk-mounted central divider height | 350 mm | |
| Full-height rear divider height | 1200 mm | |
| Partition panel thickness | 32 mm | |
| Fixed pedestal dimensions | 400 x 600 x 700 mm | |
| Lower cabinet door internal clear height | 520 mm | |
| Under-desk seated knee clearance height | 690 mm | |
| Under-desk knee clearance depth | 550 mm | |
| Cable grommet diameter | 60 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total workstation unit weight | 100 kg | |
|---|---|---|
| Static distributed desk top load capacity | 300 kg | |
| Recommended user capacity | 2 people | |
| Surface wear resistance | 2000 abrasion cycles | |
| Laminate surface stain resistance class | Grade 1 | |
| Product warranty period | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desk top substrate | E1 grade MFC particleboard | |
|---|---|---|
| Desk top finish | Thermally fused light gray melamine laminate | |
| Edge banding | 2mm thick dark gray PVC edging | |
| Pedestal cabinet panels | 18mm thick MFC board | |
| Partition panel core | High-density fiberboard core | |
| Partition mounting brackets | Powder-coated white steel brackets | |
| Drawer lock mechanism | Zinc alloy keyed cam lock | |
| Bottom base plinth | 1mm thick powder-coated steel kick plate | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Dual-position work surface | Two equal 1200mm wide work zones separated by central divider for individual staff use | |
|---|---|---|
| Lockable integrated storage | Keyed lock secures both top utility drawer and lower cabinet door for personal item security | |
| Desktop cable management | 60mm diameter cable grommet routes monitor and device power cables below desk surface | |
| Seated privacy screening | Low central divider blocks cross-desk sightlines, rear divider blocks back-of-desk visual distractions | |
| Fixed under-desk support | Pedestal acts as structural support for left desk section, eliminating need for extra leg at left edge | |
| Modular connection capacity | Partition frames allow linking to adjacent workstations to form larger cubicle bank layouts | |
| Leveling adjustment | Integrated adjustable feet on base plinth compensate for uneven office floor surfaces | |
| Lockable top drawer internal height | 120 mm | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Provides defined individual work zones without full-height cubicle wall isolation | |
|---|---|---|
| Call center and administrative offices | Compact two-seat layout fits high-density staff seating requirements | |
| Small business open work areas | Integrated storage eliminates need for separate filing cabinets in tight spaces | |
| Startup team work zones | Modular design allows easy expansion as team headcount grows over time | |
| Government and corporate back offices | Neutral gray two-tone finish matches standard commercial office interior schemes |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office work tables safety and strength requirements, applicable for desk load testing | |
|---|---|---|
| EN 1335-2:2009 | Office chair dimensional compatibility reference for under-desk clearance verification | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable for pedestal cabinet performance |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard, recommended for load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable for pedestal drawer and cabinet load verification |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel desk structural performance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade required for acceptance | |
| GB/T 4897.3-2015 | Specification for particleboard used in furniture, applicable for desk substrate material checks |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel desk structural performance; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade required for acceptance; 3. GB/T 4897.3-2015: Specification for particleboard used in furniture, applicable for desk substrate material checks; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
