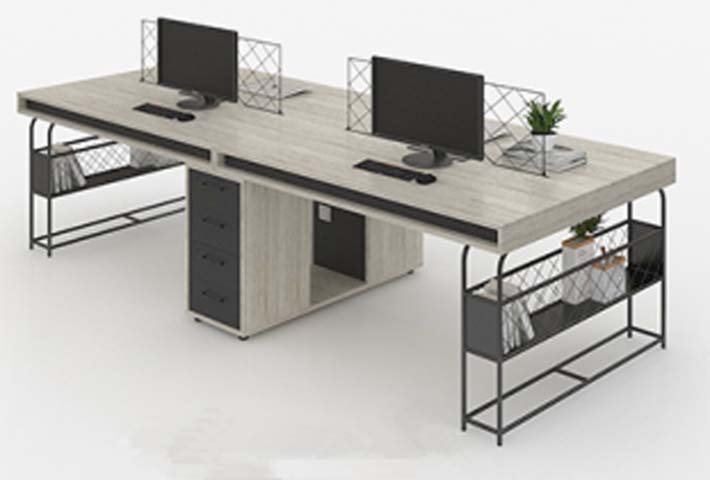

Light Wood Grain 2-Person Face-to-Face Office Workstation with Central Pedestal and End Wire Storage (model OFW-2P-F2F-WD1200) is listed under Open Workstation, with overall dimensions of 2400 × 1200 × 750 mm and main material of Particle‑board (PB). Load capacity: 300 kg. Certifications: Industrial,style,two-person,layout,integrated,storage,wire,mesh,partition. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 1200 x 750 mm | |
|---|---|---|
| Per-user work surface depth | 600 mm | |
| Desktop panel thickness | 25 mm | |
| Black edge band thickness | 2 mm | |
| Central pedestal cabinet dimensions | 1200 x 400 x 700 mm | |
| Per-side seated knee clearance height | 650 mm | |
| Per-side seated knee clearance width | 860 mm | |
| Desktop wire divider height | 200 mm | |
| End wire storage shelf dimensions | 400 x 250 x 600 mm | |
| Steel frame tube wall thickness | 1.2 mm | |
| Cable grommet diameter | 60 mm | |
| Adjustable leveling foot height adjustment | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Evenly distributed desktop static load capacity | 300 kg | |
|---|---|---|
| Product net weight | 113 kg | |
| Recommended maximum user weight per seat | 136 kg | |
| Surface scratch resistance rating | Class 2 | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | E1-grade engineered particleboard with thermally fused light oak melamine finish | |
|---|---|---|
| Edge trim | 2mm thick black PVC edge banding | |
| Support frame | 1.2mm thick black powder-coated square steel tubing | |
| Partitions and shelves | Black powder-coated steel wire mesh with diamond lattice pattern | |
| Pedestal drawer fronts | Black matte melamine-faced engineered board | |
| Leveling feet | Injection-molded nylon with steel threaded insert |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 3 lockable stacked drawers on one side, open equipment bay on opposite central pedestal side | |
|---|---|---|
| Privacy separation | Low diamond wire dividers separate the two paired work positions on the tabletop | |
| Cable management | Under-desk cable tray routed from central grommet to each work zone | |
| Stability adjustment | Threaded leveling feet adjust to eliminate wobble on uneven flooring |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office space | Accommodates two seated staff for daily computer-based administrative work | |
|---|---|---|
| Small team work zones | Provides shared access to central storage and integrated end supply shelves |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements for commercial use | |
|---|---|---|
| EN 527-2:2016 | Office work tables dimensional and performance requirements for seated work |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for static load and durability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worktop and cabinet components | |
|---|---|---|
| GB/T 3327-2016 | Performance requirements for metal furniture, applicable to steel frame and wire components | |
| GB 18580-2017 | Formaldehyde emission limit for engineered wood panels, E1 grade requirement |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and cabinet components; 2. GB/T 3327-2016: Performance requirements for metal furniture, applicable to steel frame and wire components; 3. GB 18580-2017: Formaldehyde emission limit for engineered wood panels, E1 grade requirement; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
